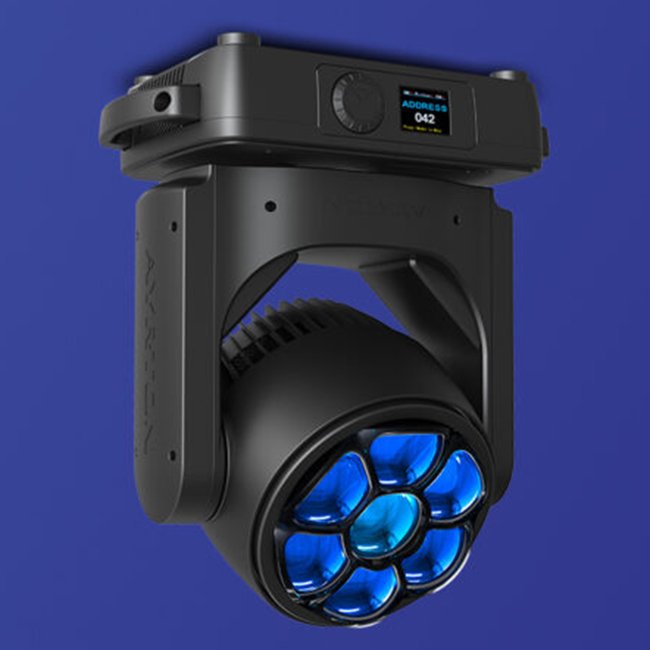

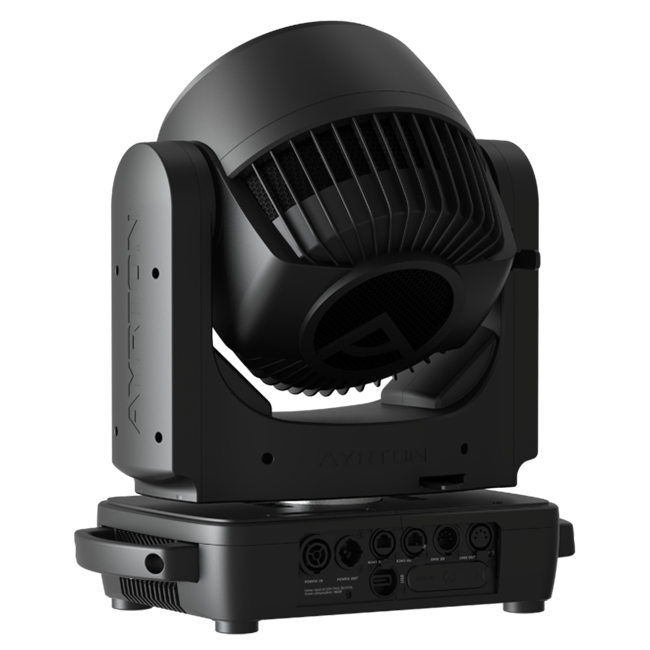

Zonda 3 Wash

3 Series - Source: 7 RGBW LED
Lumens: 5,200
Zoom aperture: 4° to 56°
Frontal Lens: 7 x 50 mm

Akin to the ZONDA 9, the latest addition to the ZONDA family designed for stage lighting is an incredibly compact luminaire with unlimited creative potential.
ZONDA 3 is a versatile fixture with amazing effects that can switch from beam to wash with great ease. Its speed of movement and reduced dimensions increase its dynamic potential. Because of its size, it is easy to use in compositions with curtains or matrices. Fitted with seven high-performance 40-Watt LED sources with RGB+W, ZONDA 3 offers a proprietary optical system made up of a unique 170 mm mono-block cluster in PMMA, which enhances beam coherence, and seven glass light guides with an output surface that has an optical micro-structure. A 50 mm truncated transmitting lens whose optical surface is equivalent to that of a 70 mm round lens, enables ZONDA 3 to obtain a highly intensive beam with a zoom ratio of 14:1 and a wide zoom range of 4° to 56°. This LED/optical system combination is capable of producing light output of 5,200 lumens and a perfectly homogeneous mixture of pastel and saturated colours regardless of the colour combination chosen.

Like its older brother ZONDA 3 WASH is a luminaire designed to cover an entire live entertainment stage.
It is provided with additive colour synthesis that can reproduce precise, intense and deep colours. The careful colour mixing of the sources allows for perfect colour reproduction. A specially used black honeycomb and perfect separation of the light sources helps to significantly boost the level of contrast. A complete library of pre-programmed colours, created in collaboration with lighting designers, is instantly accessible. ZONDA 3 WASH is as discreet as it is silent. A unique ventilation system was exclusively designed for this luminaire. A new optimised cooling system, simplified lens guidance systems, and an ever smarter design of the internal structure have made it possible to reduce the size and weight of the luminaire considerably Slim-21TM.
