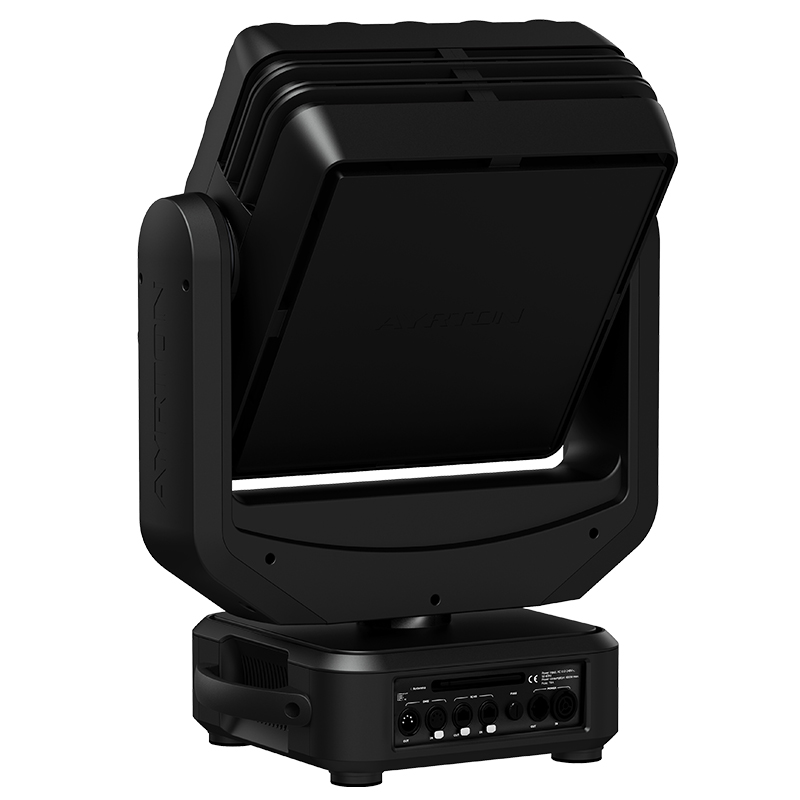

MagicPanel FX
- Ayrton
- Creative solution
Light Source: 25 x 35 W - RGBW
Lumens: 13,500
Beam Aperture: 3.6° to 53°
Movement: Infinite Pan & Tilt
Front Lenses: 25 x square 65mm
MAGICPANEL FX is the exciting new multi-function, multi-use luminaire descended from the renowned MAGICPANEL R.

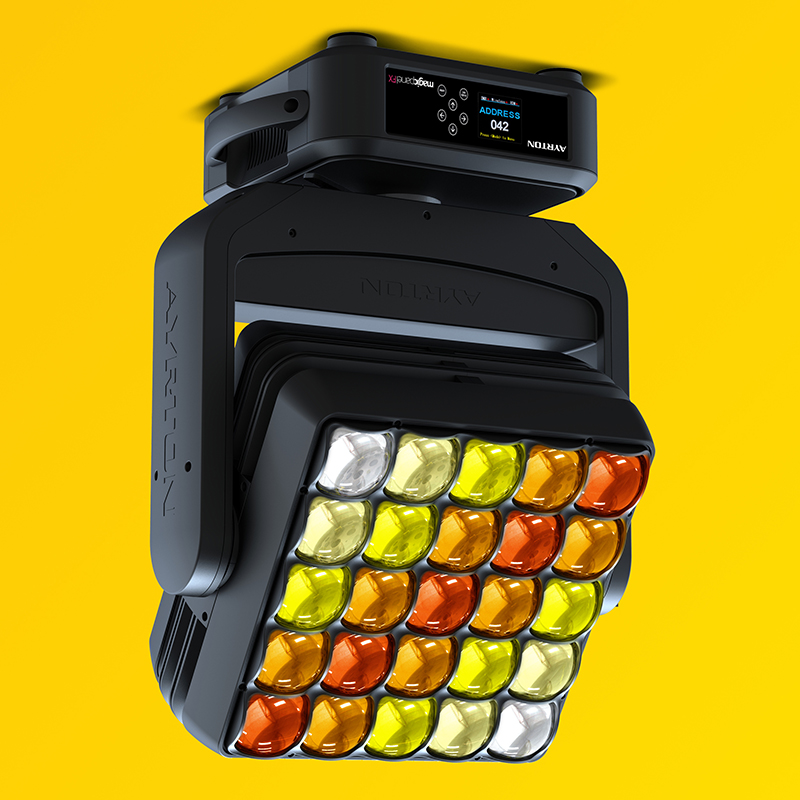

With a revolutionary new optical zoom system that has no visible moving parts and a stationary transmitting lens, this proprietary system has a 15:1 zoom ratio with a range of 3.6° to 53°. The front face of MAGICPANEL FX is comprised of a 5 x 5 array of squared lenses with perfectly isolated emitters – which offer exciting new possibilities for creating 2D graphical effects. Each of the 25 squared 65 mm output lenses have an optical surface equivalent to that of an 80 mm round lens, combined with an ultra-powerful, low-etendue, LED emitter. MAGICPANEL FX produces an extremely powerful beam capable of creating extraordinarily new 3D volumetric effects.
With 900 W of total power, the versatile MagicPanel FX has 25 next-generation RGBW high-power LED emitters
and an active phase-change liquid cooling system using a heat pipe for intensive use in “wash light” mode. The continuous, unlimited, rotation on pan and tilt, first introduced on the legendary MAGICPANEL 602 in 2013, is standard. MAGICPANEL FX has serial connectivity and can be controlled using DMX-RDM, ArtNet™, sACN or wireless CRMX TiMo RDM by LumenRadio™.
Optics
2-elements 15:1 zoom high-resolution optic system
Beam aperture: 3,6° to 53°
Fast motorised linear zoom
25 squared 65 mm frontal lens
Light source
25 x 1,000 lumens RGBW High-Power LED source
Total luminaire output: up to 13,500 lumens
Luminous intensity: 2,070,000 cd (narrow beam)
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
Movement
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8 bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
Dynamic colour macro effect with variable speed
Effects
2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Dimmer / strobe
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Size
Product: 486 x 641 x 307 mm (l x h x d)
Flight-case foam: 569 x 672 x 367 mm (l x h x d)
Weight
Product: 28.7 kg
