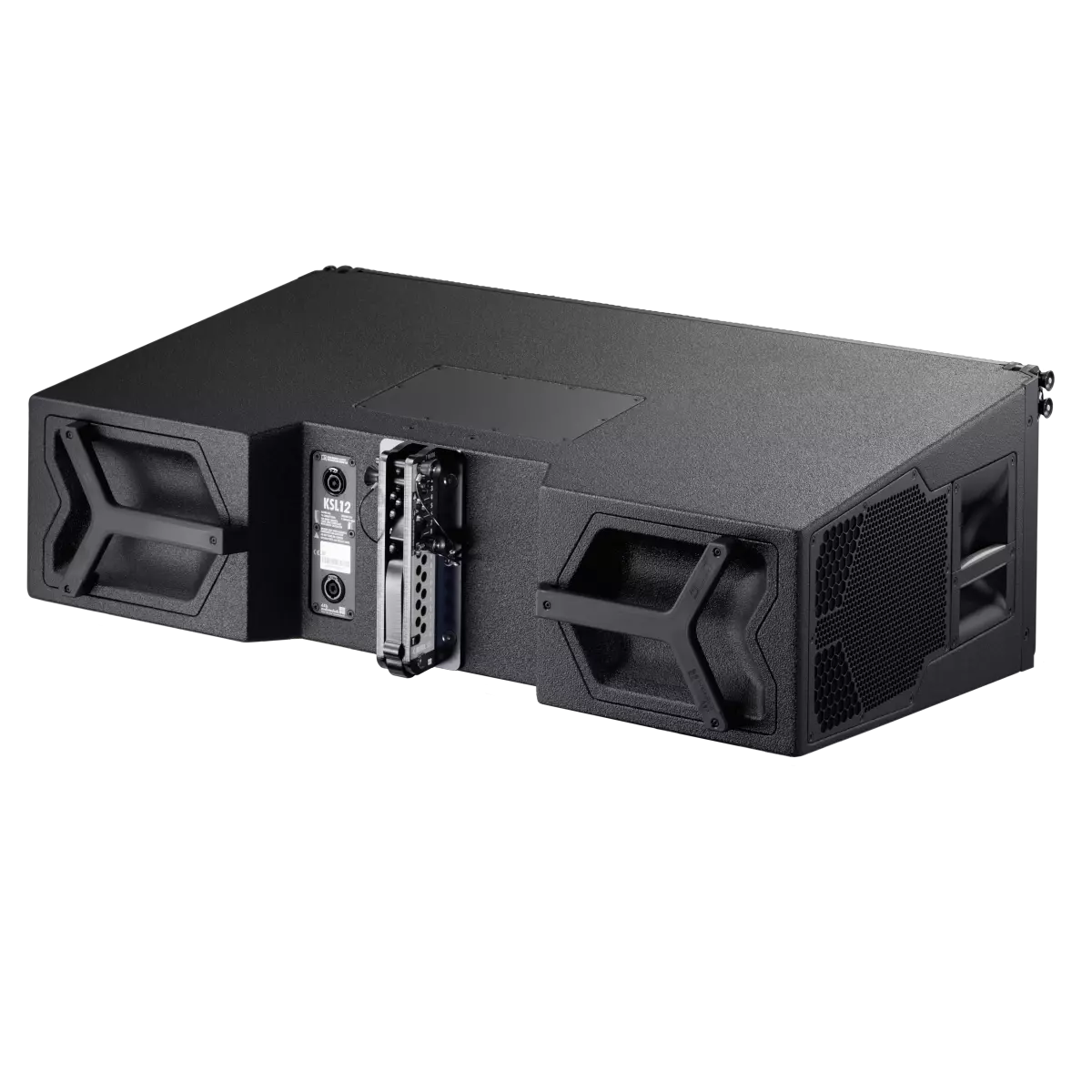

KSL12

The KSL12 line array module produces an 120° constant directivity dispersion pattern in the horizontal plane over the entire operating bandwidth. The KSL12 houses two 10" neodymium forward facing LF drivers and two side firing 8" neodymium LF drivers. A coaxial mid-high section contains an MF horn with an 8" driver and two 1.4" exit, 3" voice coil HF compression drivers mounted to a dedicated wave shaping device. SL-Series flying hardware comes with a patended workflow with integrated tension and compression rigging modes, allowing splay angles between cabinets from 0° to 10° in 1° increments. The loudspeakers are driven actively by two channels of an appropriate d&b amplifier. One channel powers the 10” LF drivers, the second channel powers all other components, which are passively crossed-over. This component geometry allows for a smooth crossover design with well-defined overlaps between adjacent bands providing consistent, even and very accurate horizontal dispersion.

Medium to large format 3-way line array loudspeaker

Components LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4" exit compression driver with 3" coil
Dispersion 120º
SPLmax 144 dB
Weight 58 kg / 128 lbs
