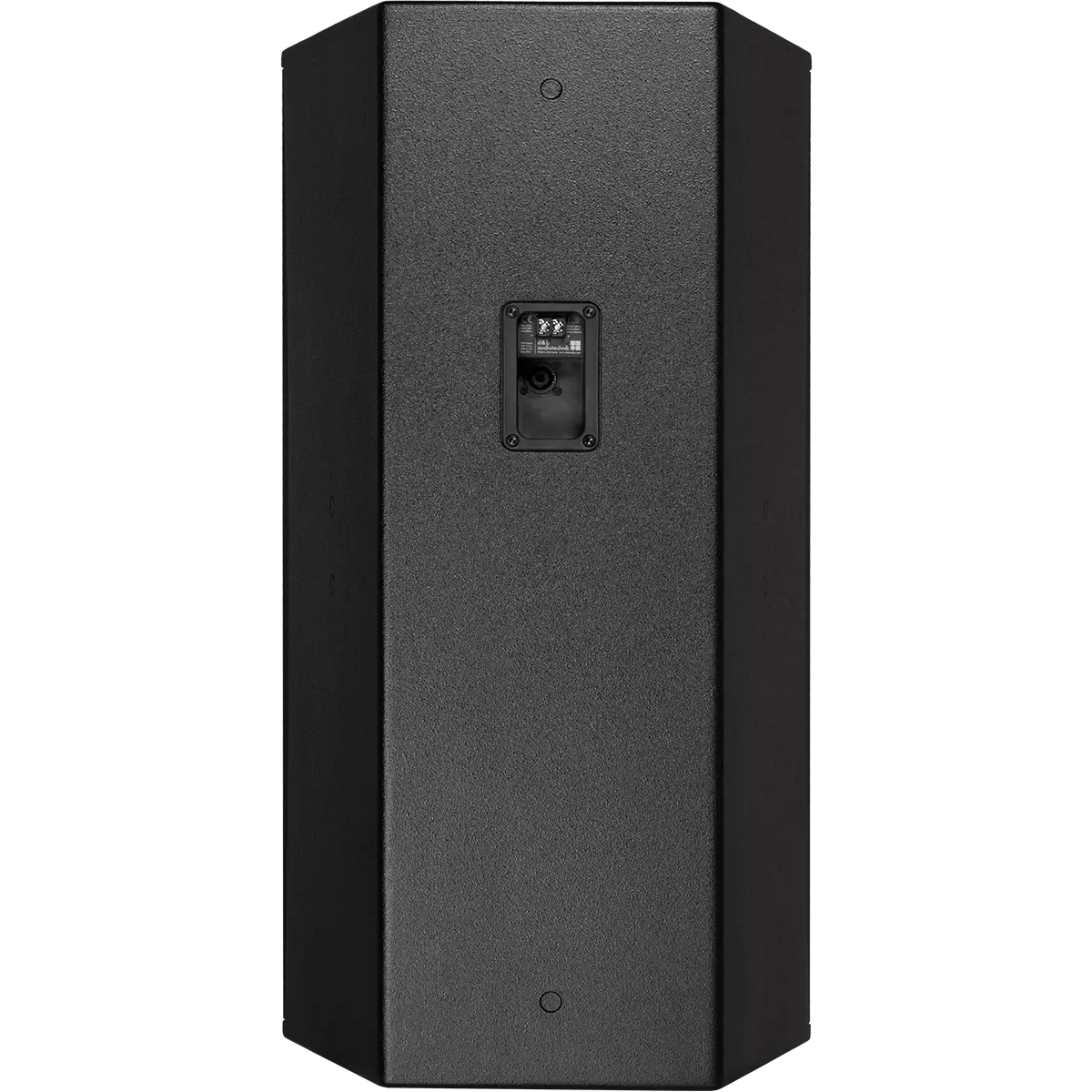

The 24S is a high performance full range 2-way passive loudspeaker housing two 12? drivers in a bass-reflex enclosure with a 1.4? exit compression driver mounted onto a large rotatable CD horn, intended for a wide range of permanently installed applications. The dipolar arrangement of the 12? drivers results in directivity control down to approximately 500 Hz in the same plane as the dipole. The specially designed ports with optimized flow characteristics and a large cabinet volume provide a significant low frequency reproduction. With a frequency response extending from 55 Hz to 18 kHz, the 24S can be used as a stand-alone, full range system, or supplemented with d&b subwoofers. It can be ground stacked or flown individually.

Installation specific high performance full range 2-way loudspeaker

Components 2 x 12"/1.4"
Dispersion 75? x 45?
SPLmax 138 dB
Weight 33 kg / 73 lb
