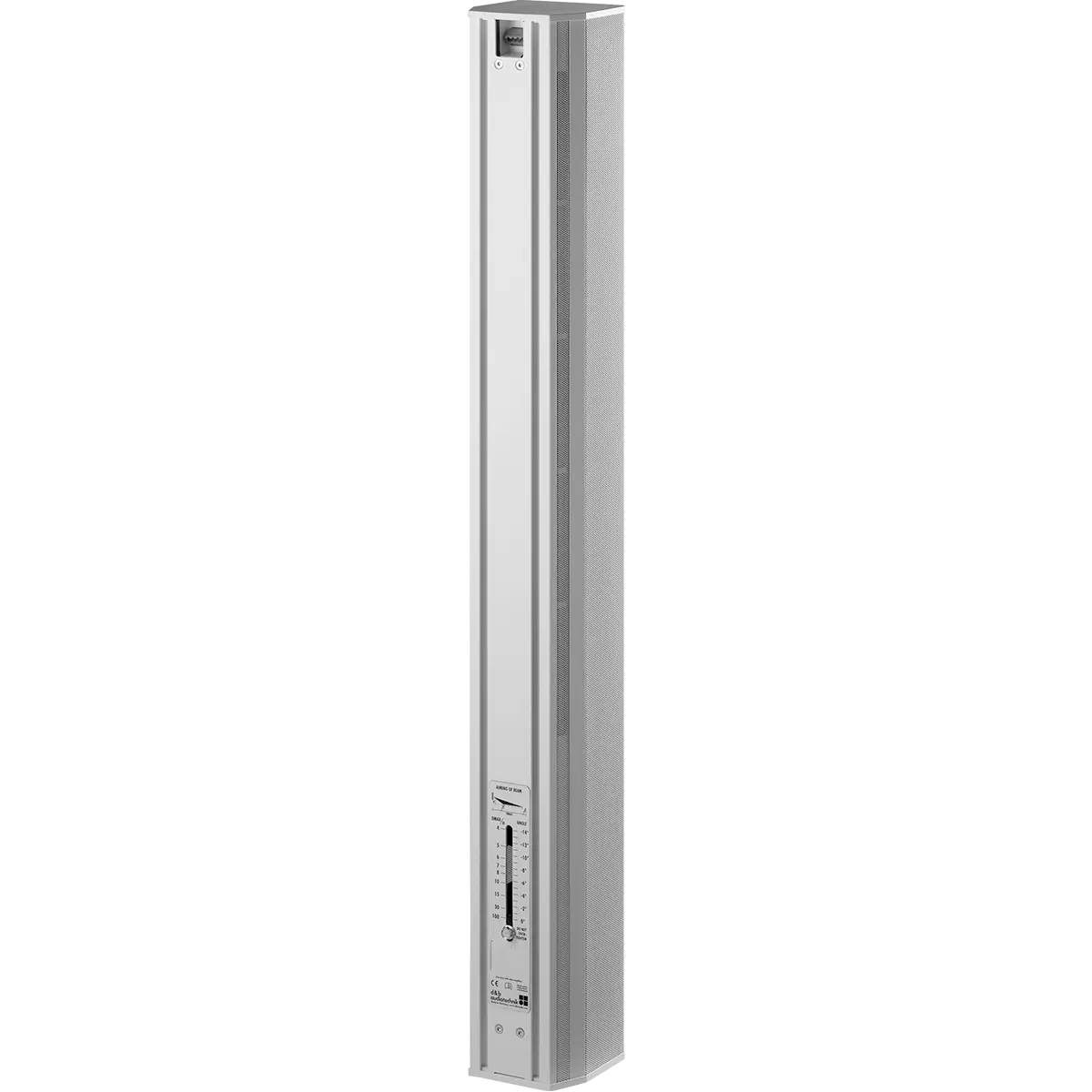

24C

The 24C 2-way passive column loudspeaker features six 4” neodymium drivers and a HF array comprising six 1.1” dome tweeters providing a nominal horizontal dispersion of 90°. The HF array has a nominal vertical dispersion of 20°, which can be adjusted constantly between 0° and -14° to target audience listening areas. The beam produced by the low / mid drivers is tilted downwards by 5°, offering significant directivity down to 370 Hz. The 4" drivers are arranged in a unique cardioid setup radiating through waveguide elements at the front and damped ports at the rear of the cabinet. This design provides a constant directivity pattern of 90° in the horizontal plane with a broadband attenuation to the rear of approximately 18 dB.

Installation specific cardioid column loudspeaker

Components 6 x 4"/6 x 1.1"
Dispersion 90º x 20º
SPLmax 126 dB
Weight 9 kg / 19.8 lb
