Ronin R45
Request a quote
Ronin R45 is a new milestone for professional LED SPOT moving head, with high-efficient optics! Its subtle design creates a compact and lightweight fixture, with incredible strong output and comprehensive functions! Rapid and silent X/Y movement; 3-30°wide and precise zoom range, intelligent auto-focusing software; Fast and smooth CMY system; Well-chosen colors, fixed and Rotating gobos wheel, frost and prism effects, what’s more, the refined 16bit dimming simulate the classic halogen dimmer curve. The Ronin R45 is born for the Rental house, TV station, and Theatre.

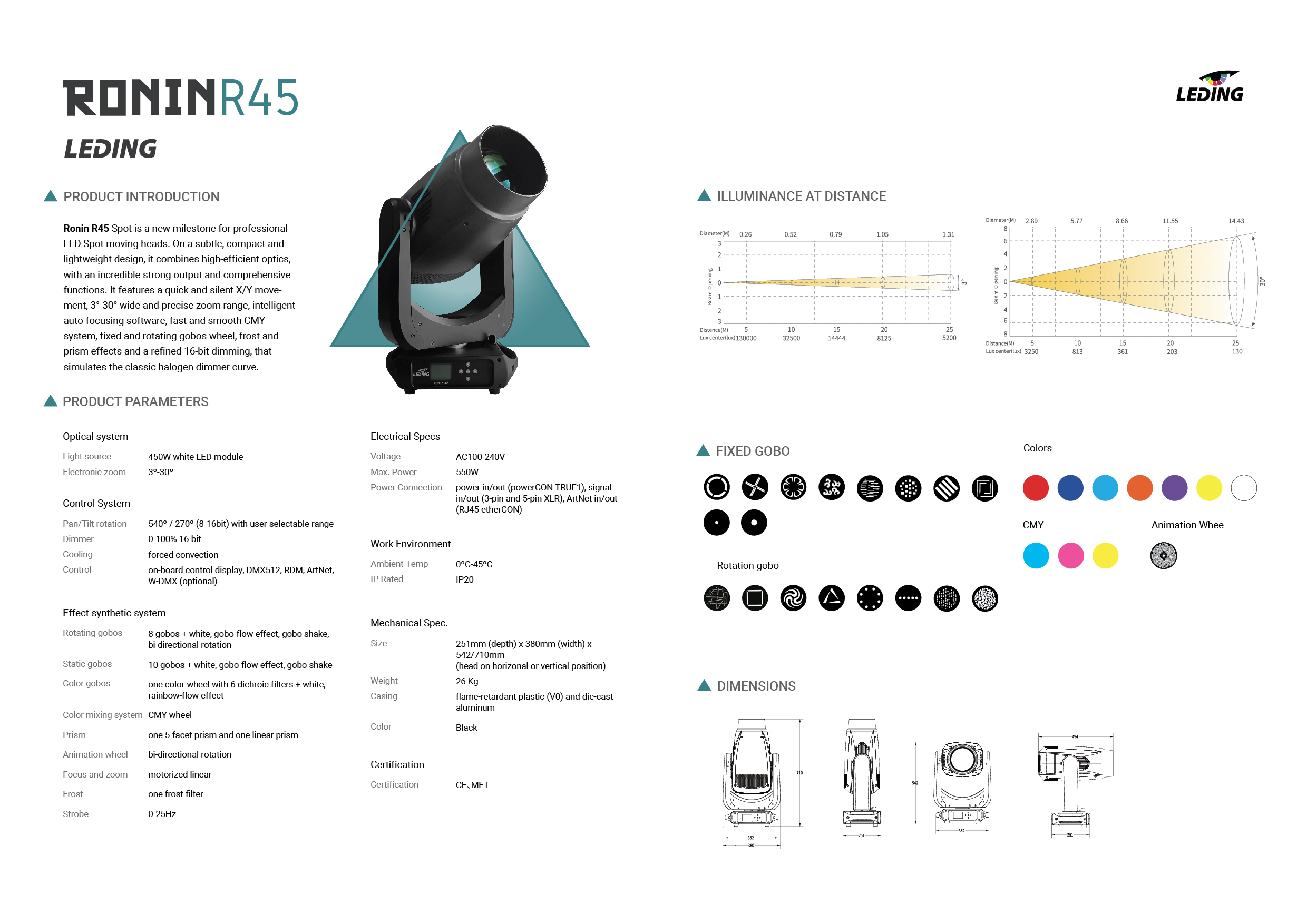

Datasheet User ManualSpecifications
Light source: 450W module
Angle: 3º-30º
Pan/Tilt rotation: 540º/270º (8-16bit)
Cooling: Forced Convection
Control: DMX512, RDM, ARTNET, W-DMX(optional)
Display: On board control, Custom Mode, 0-25Hz Strobe
Con Personality: STANDARD (29 CHS), BASIC (23CHS), EXTEND (31 CHS)
Special: Pan/Tilt movement blackout, User-selectable pan/tilt ranges
Voltage: AC100-240V, 50/H60Hz
Max. Power: 550W
Power Connection: power in
Signal socker: 3pin or 5pin in and out, RJ45 in and out
Rotation Gobo: 8 Gobos+White, Gobo-flow effect, Gobo shake, Bi-directional rotation
Static Gobo: 10 Gobos+White, Gobo-flow effect, Gobo shake
Colors: One color wheel (6 dichroic-filter+White, Rainbow-flow effect)
CMYK: CMY wheel
Prism: One piece of 5 F prims, One piece of linear prism
Animation Wheel: Bi-directional rotation
Focus: Motorized linear focus
Zoom: Motorized linear zoom
Frost: 1 Frost filter
Ambient Temp: 0-45ºC
IP Rated: IP20
Certification: CE, MET
Size: 380x251x710mm
Weight: 26 kg
Casing: Flame-retardant plastic (V0) Die-cast aluminum
Color: Black
