VELOCE PROFILE
- Ayrton
- 6 Series

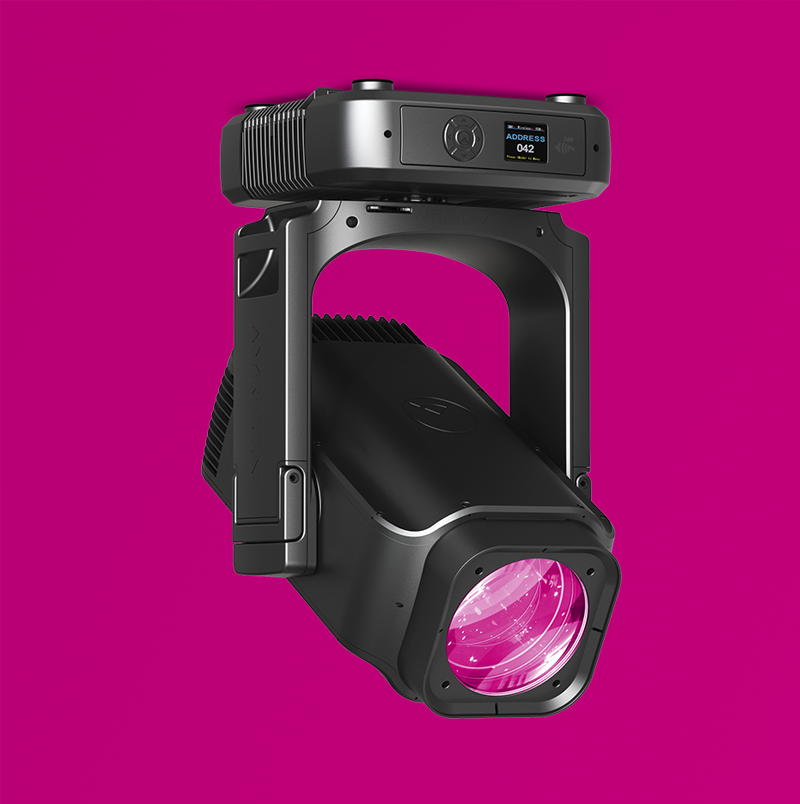

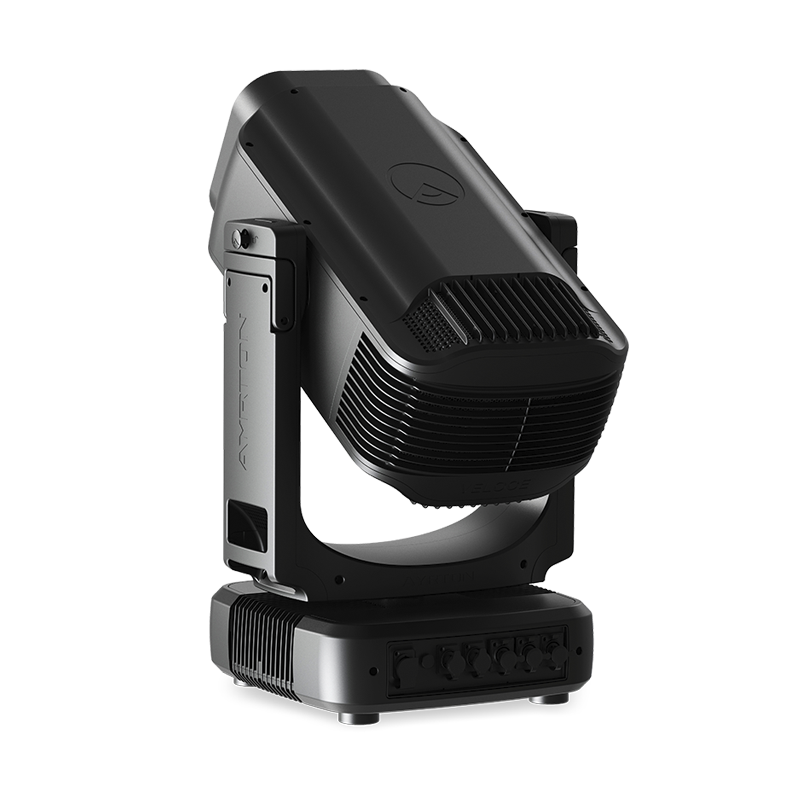

After the worldwide success of the RIVALE PROFILE and more than 10,000 units in service in less than a year, AYRTON is proud to present its brand new VELOCE PROFILE, the second ultra-equipped luminaire in the "ULTIMATE" family, specially designed for large spaces.
The ULTIMATE range has broken the codes with its avant-garde design. A family of perfectly homothetic luminaires that reinforces the sense of unity between the different models.
VELOCE PROFILE is a versatile luminaire capable of operating in all conditions, indoors and outdoors, including salty environments. The use of new, lighter aluminium parts has resulted in a significant reduction in weight, with the aim of achieving the best weight to power ratio on the market without the use of expensive or unstable special alloys. VELOCE PROFILE is the lightest luminaire in its category, weighing just 40 kg. For greater freedom of movement and design flexibility, VELOCE PROFILE comes as standard with infinite continuous rotation on both pan & tilt axes. VELOCE PROFILE pushes back the limits of integration with a brand new sealed monoblock 850 W high efficiency LED module, calibrated at 6500 K, which offers a luminous flux of 43,000 lumens with optimum positioning on the black body to achieve perfect light neutrality.
The proprietary 13-lens optical system offers a zoom ratio of 13:1 and a range of use from 4° to 52°. VELOCE PROFILE features a 180 mm front lens, giving an ultra-intensive 4° beam. VELOCE PROFILE, like all the luminaires in the "ULTIMATE" range, adopts a revolutionary new CMY colour mixing system with ultra-fast high-definition discs. This single-layer system provides a clear improvement in colour intensity during reproduction. An ultra-fast, high-definition single-disc progressive CTO enables precise colour temperature adjustment from 2700 K to 6500 K, and a 7-position colour wheel with special filters completes the palette of tools dedicated to colour creation. For specific applications requiring perfect colour reproduction, VELOCE PROFILE offers a subtle adjustment of the colour rendering index from 70 to 86. A new, ultra-precise framing module makes it possible to isolate any object thanks to the surgical positioning of each shutter blade over 100% of the surface with +/- 90° rotation. VELOCE PROFILE provides the ultimate sensations. An accomplished luminaire synonymous with high performance, unbridled creativity, refinement and power. A luminaire you won’t want to do without.
OPTICS
13-element 13:1 zoom
Beam aperture: 4º to 52º
180 mm front lens
LIGHT SOURCE
58,000 lumens white light engine
Total luminaire output: up to 43,000 lumens
(integrating sphere measurement, Stage Fan mode)
Colour temperature output: 6500 K
CRI: greater than 70
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
COLOURS
Sophisticated colour mixing system providing CMY color mixing
Variable CTO colour temperature correction
Variable CRI improvement filter
Fi xed co lour wheel with seven complementary colours
GOBOS
2 indexable rotating gobo wheel with seven high precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30 mm
Image diameter: 19 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the shutter blades module: +/- 90º
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
FROST
2 frost filters : one light, one heavy
EFFECTS
Focusable graphic animation effect-wheel with continuous rotation in both directions
2 combinable rotating and indexable prisms: one 5-facet circular, one 4-facet linear
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
Information menu including hour counter, temperature, software version
HARDWARE FACILITIES
Graphic LCD display for addressing and special functions settings, with flip function
5 menu buttons to set functions
Excess temperature protection
Integrated wireless CRMX TiMo RDM receiver from LumenRadio
IP65 XLR 5 pin male and female connectors for DMX connection
IP65 RJ45 IN / OUT connectors for ArtNet connection
IP65 PowerCON TRUE1 male connectors for power connection
CONTROL
DMX 512 protocol, through DMX cable or a wireless system
DMX-RDM compatible
Stand-alone mode and Master/Slave modes
ArtNet & sACN protocol through Ethernet cable
Local control panel, with IP65 LCD display
67 DMX channels footprint
POWER SUPPLY
100 to 240 Volts – 50/60Hz
Power: 1,300 W maximum
COOLING SYSTEM
Advanced liquid cooling system
IP68 Self-adjusting variable speed fans for quiet operation (Auto mode)
Selectable ventilation user modes including Super Silent Mode
Safety protection against excess temperature
HOUSING
Moving-head skeleton made of aluminium and steel metal plates
Base in die-cast composite alloy
Heatsinks in aluminium and copper
Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
Four-side handles for transportation
Four heavy-duty feet for better stability
IP65 protection rating
Exterior finish: black (Carbon)
INSTALLATION
2 Omega ¼ turn brackets
Eight ¼ turn mounting points
Safety cable attachment point
OPERATING PARAMETERS
Maximum permitted: 45 Cº (113 Fº)
Minimum permitted: -20 Cº (-4 Fº)
Minimum usage distance: 4 m (13.123 ft)
COMPLIANCE
EMC Directive 2014/30/EU
LVD Directive 2014/35/EU
US Safety: UL 1573 & FCC Part 15, Subpart B: 2018
SIZE
Product: 404 x 757 x 366 mm (l x h x d)
Foam: 500 x 640 x 680 mm (l x h x d)
WEIGHT
Product: 40.5 kg
