LAm114xA Plus (Ativo) - NAN Audiovisuais

LAm114xA Plus (Ativo)

  2. Monitores de Palco

LAm114xA Plus (Ativo)

Solicitar orçamento

LAm114xA PLUS is a plus edition of the famous LAm114xA, using a new DSP and Amplifier module, ethernet controlled via Software X-NET, keeping the same iconic design and dimensions. ?To fulfil all the artist´s performance needs the LAm114xA PLUS aimed to provide the musicians a perfect listening on the most demanding situations. The LAm114xA Plus stage monitor incorporates advanced coaxial 14” B&C Custom made speaker and a high performance amplifier module, capable of generating 1,650W (rms) for a very high acoustic pressure, remotely monitored and controlled through ethernet by a PC using X-NET Software.?The design combines the voice reproduction clarity associated with 12” drivers with the bass extension typically of 15” speakers. The high-frequency reproduction is handled by a 2-inch exit, 3-inch voice coil, HF neodymium driver for the critical voice frequency range. ?

Página do fabricante

  • Tipo de Produto

    Active Coaxial Stage Monitor



    Frequência de Resposta (-6dB)

    55Hz - 19.000Hz



    Cobertura Nominal (-6dB)

    80º Conical



    SPL Máximo Pgm/Peak (calculado)

    135dB / 138dB (Half-Space)



    Altifalante de Graves

    1 x 14" (355mm) / 3" (76mm) VC, Neodymium, B&C custom speaker



    Driver de Agudos

    1 x 2" (50.5mm) exit / 3" (76mm) VC, Neodymium, B&C custom speaker



    Tecnologia do Amplificador

    2-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion



    Potência para LF

    1150W



    Potência para HF

    500W



    Tecnologia do DSP

    96kHz / 40 bit SHARC DSP



    Latência

    1.5ms



    Parâmetros Ajustáveis do DSP

    Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ



    Presets do DSP

    24 (4 User Presets)



    Ajuste de Atraso (Delay)

    500ms (172m) on Input + 400ms (138m) on Groups



    Tipo de Controlo

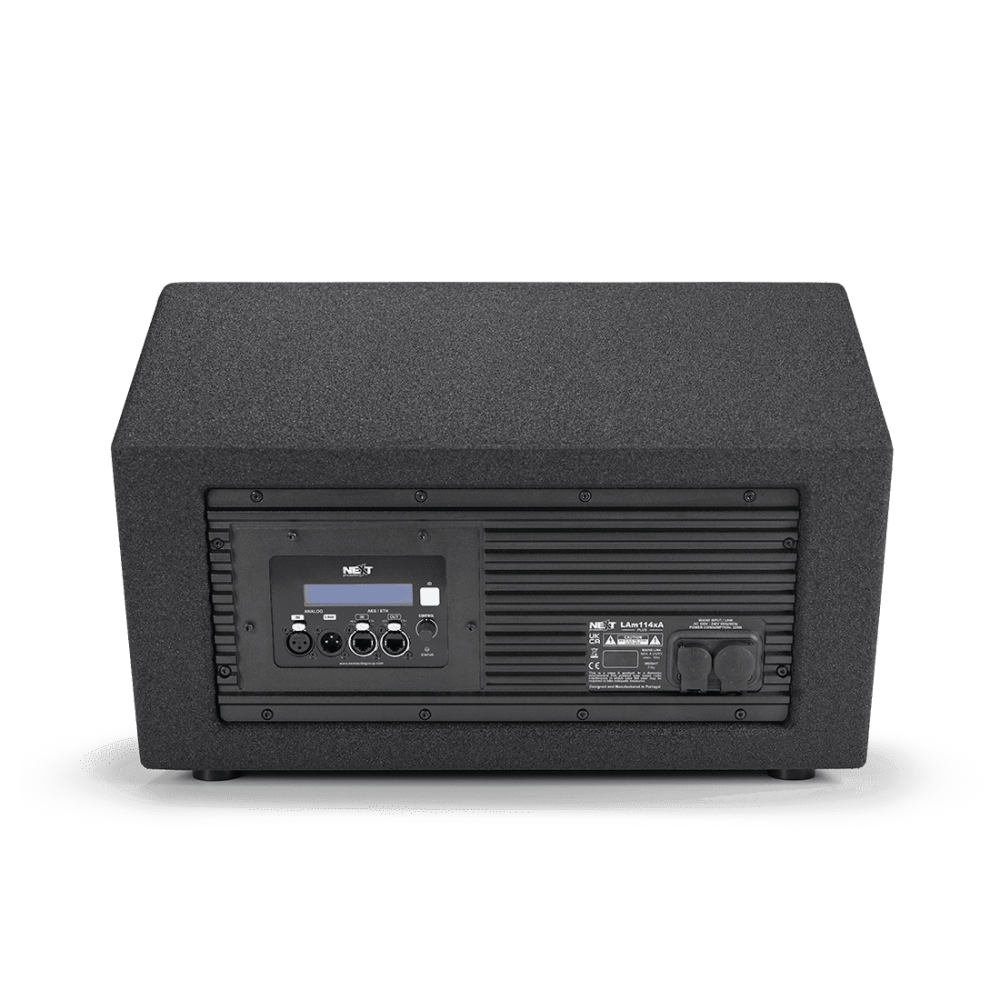

    Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet - Max. Cable Length 70m



    Entradas de Sinal Áudio

    Analog | AES (AESOP)



    Conectores de Entrada

    1 x XLR | 1 x Neutrik EtherCON®



    Saídas de Sinal Áudio

    Analog | AES (AESOP)



    Conectores de Saída

    1 x XLR | 1 x Neutrik EtherCON®



    Proteções

    Clip Limiter | Temperature | Over Current | DC Protection | HF Protection



    Gama de Temperaturas de Funcionamento

    0ºC - 40ºC



    Tipo de Arrefecimento

    External Aluminum Heat Sink with Internal Speed Controlled Fan



    Fonte de Alimentação

    UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter



    Entrada de Energia

    AC 100V - 240V 50Hz/60Hz



    Conector de Entrada de Energia

    Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®



    Consumo de Energia

    225W



    Funcionalidades Especiais

    Speaker Cabinet Auto-Identification via Software



    Pegas

    1 on Each Side



    Grelha

    Black Perforated Steel



    Construção

    Multi-Laminate Birch Plywood



    Acabamento

    Semi-Matte Black Polyurea Coating



    Dimensões (LxAxP)

    564 x 390 x 475 mm



    Peso Líquido

    21kg



    Acessórios

    Rain Cover | U-Bracket | Pole Mount for U-Bracket
