LAs518A (ativo) - NAN Audiovisuais

LAs518A (ativo)

  2. Subwoofers

LAs518A (ativo)

Solicitar orçamento

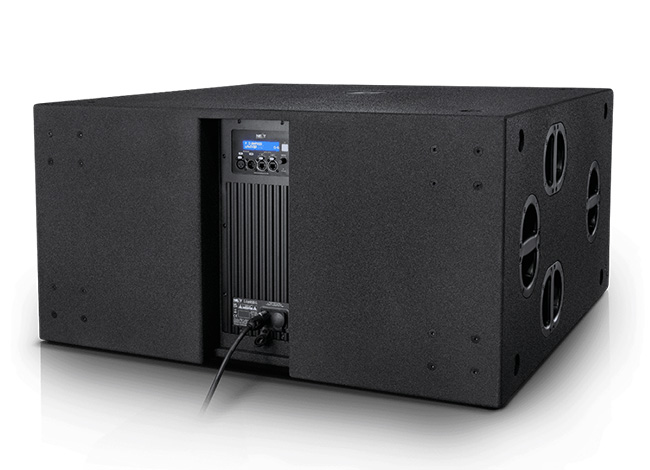

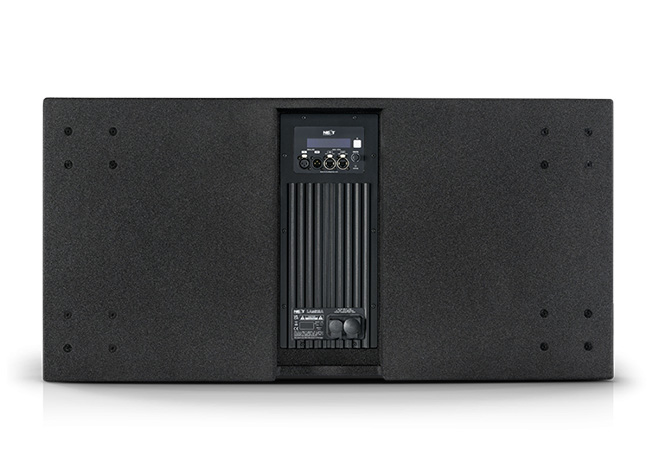

Introducing the LAs518A, the ultimate compliment to the LA210x. Boasting dual long-excursion, high-power neodymium 18” drivers, the LAs518A delivers unparalleled low-frequency performance. With optimized port tuning and exceptional peak-to-peak excursion capability, the LAs518A ensures deep, resonant bass down to 24 Hz at -10 dB. Encased in a sturdy 89 kg front-loaded bass reflex enclosure, the LAs518A is equally adept for installation and rental applications, delivering a maximum peak SPL of 143 dB. Driving the LAs518A is a lightweight, highly efficient 2-channel class D amplifier module, capable of delivering up to 5000 W with remarkable precision and detail. Equipped with an integrated universal mains power supply featuring PFC, this subwoofer guarantees consistent performance worldwide. Experience the pinnacle of subwoofer technology with the LAs518A, where power, precision, and versatility converge to elevate your audio experience to new heights.

Página do fabricante

  • Tipo de Produto

    Active High Power Reflex Subwoofer



    Frequência de Resposta (-6dB)

    28Hz - 250Hz



    Extensão de Baixas Frequências (-10dB)

    24Hz



    SPL Máximo Pgm/Peak (calculado)

    141dB/144dB (Half-Space)



    Altifalante de Subwoofer

    2 x 18" (460mm)/4"(100mm) VC, high excursion, B&C custom speaker



    Tecnologia do Amplificador

    2-Channel UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion



    Potência do Amplificador

    RMS: 2800W / Program: 5000W / Peak: 7000W



    Tecnologia do DSP

    96kHz / 40 bit SHARC DSP



    Latência

    1.5ms



    Parâmetros Ajustáveis do DSP

    Filters: PEQ, FIR, hi/lo-shelving, all-pass, band-pass, hi/lo-pass | Limiters: RMS Voltage, Peak Voltage | Groups: Mute, Delay, Level, Polarity, EQ



    Presets do DSP

    24 (4 User Presets)



    Ajuste de Atraso (Delay)

    500ms (172m) on Input + 400ms (138m) on Groups



    Tipo de Controlo

    Control via LCD and Encoder on the Back Panel | Control via Software using Ethernet - Max. Cable Length 70m



    Entradas de Sinal Áudio

    Analog | AES (AESOP)



    Conectores de Entrada

    1 x XLR | 1 x Neutrik EtherCON®



    Saídas de Sinal Áudio

    Analog | AES (AESOP)



    Conectores de Saída

    1 x XLR | 1 x Neutrik EtherCON®



    Proteções

    Clip Limiter | Temperature | Over Current | DC Protection | HF Protection



    Gama de Temperaturas de Funcionamento

    0ºC - 40ºC



    Tipo de Arrefecimento

    External Aluminum Heat Sink with Internal Speed Controlled Fans



    Fonte de Alimentação

    UREC Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter



    Entrada de Energia

    AC 100V - 240V 50Hz/60Hz



    Conector de Entrada de Energia

    Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®



    Consumo de Energia

    700W



    Funcionalidades Especiais

    Speaker Cabinet Auto-Identification via Software



    Encaixes

    1 x M20 pole mount socket, 16 x M8 threaded inserts for optional wheel kit, 8 replaceable feet



    Pegas

    4 on each side



    Grelha

    Black Perforated Steel



    Construção

    Heavily braced, 18mm multi-laminate birch ply



    Acabamento

    Semi-Matte Black Polyurea Coating



    Dimensões (LxAxP)

    1030 x 516 x 920mm



    Peso Líquido

    89kg



    Peso Bruto

    94kg



    Acessórios

    Rain Cover | Transportation Dolly | Ground Stack Accessory for LA210x
