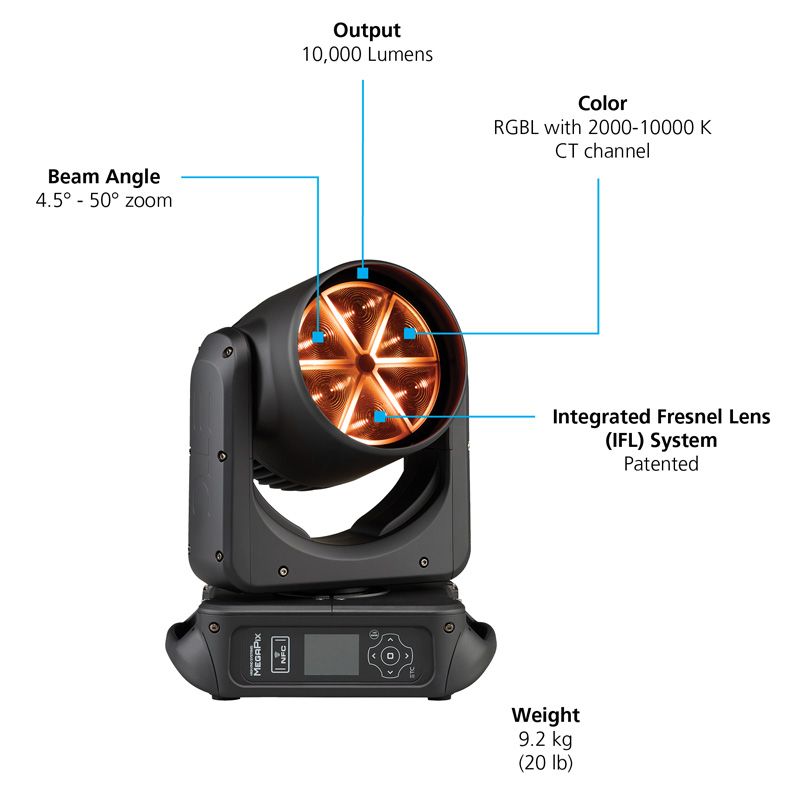

MegaPix brings next-level performance to the pixel wash fixture. With a patented Integrated Fresnel Lens (IFL) System, these fixtures deliver the classically beautiful output characteristics of a Fresnel lens.
Create a wide range of elegant stage washes with advanced RGBL color mixing, smooth dimming, and a 2,000–10,000 K CT channel.

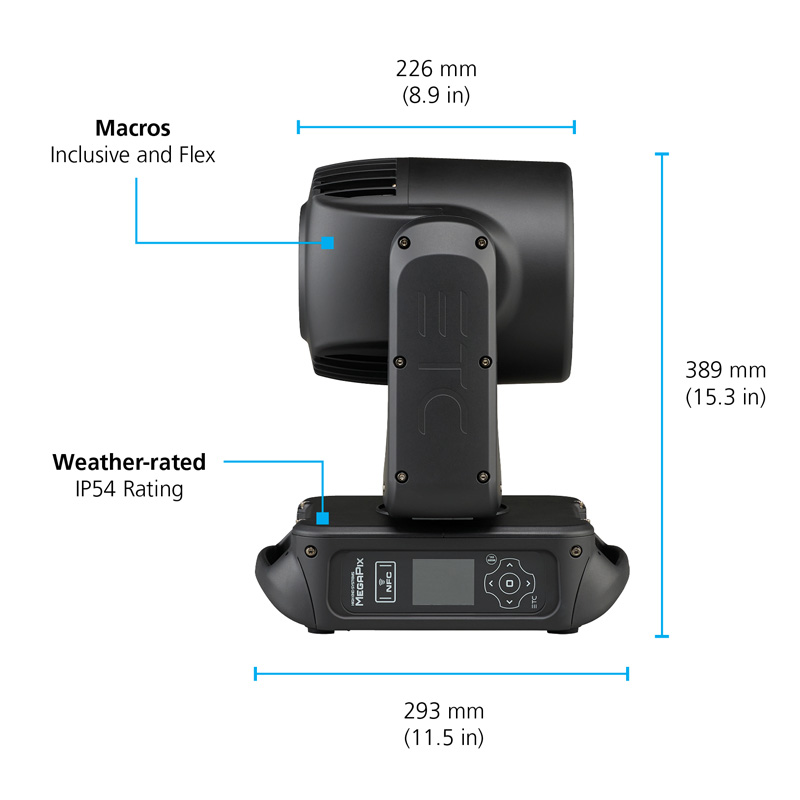

On top of all that, a robust Pixel, Macro, and Flex Effects system provides unique face looks and plenty of splash. Weather-rated with an IP54 rating, MegaPix is protected from dust and rain, whether used inside the theatre or outside on a festival stage.
SOURCE
Engine: Custom RGBL LED
LED Details: Six (6) 60 W LED engines
Field Lumens: See photometrics on page 4
Max Integrating Sphere Lumens: 10,000
LPW: 28
LED Life: 50,000 hours
COLOR
Color Mixing Additive RGBL color mixing
Color Temperature: 2000 K to 10000 K TM-30 Preference 1
OPTICAL
Angle Range: 4.5°–50°
Aperture Size: 217 mm
Diffusion: Soft and homogenized field of light throughout entire zoom range
Flicker Control/Hz Range: 2.4 kHz and 16 kHz
CONTROL
Input Method: DMX (5-pin) or Ethernet
Protocols: DMX via RS-485 Art-Net or sACN via Ethernet
Ethernet Pass-Thru: No
Modes (Footprint): Wash (15) Base (25), Base+Flex (45), and separately addressable Pixel Control Module (24)
RDM Functions: Yes
UI Type: Full-color graphical UI / 5-button navigational control / NFC configuration
Local Control: Yes
Dimming Performance: 16-bit, DMX controlled
ELECTRICAL
Voltage Range: 100–240 V 50–60 Hz
Input Method: REAN® power X Series Connector
Wattage: 450 W
Current (Max): 4.5 A @ 100 V / 1.8 A @ 240 V
Inrush (First Half Cycle): 120 V: 47.6 A / 230 V: 59.2 A
Fixtures per Circuit: 4 fixture (R20 module or similar) Note: REAN power X Series connector rated for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)
THERMAL
Ambient Operating Temp: -10°C to 40°C (14°F to 104°F)
Fan Mode: Auto, Studio, Linear fan control
PHISICAL
Pan and Tilt Range: 540° pan, 264° tilt
Max Pan/Tilt Speed: 360° in 1.07 s/180° in 0.87 s
Materials: Steel and aluminum frame with molded plastic covers and protected rubber bellows
Color Options: Black, white by request
Mounting Options: Any orientation
IP Rating: IP54
Weight: 9.2 kg (20.3 lb)
Included Accessories: X Series IP65 to bare end fixture tail / Two (2) 107 mm single-hole Omega brackets / Safety cable
