RGBW Wash / Strobe / Pixel Light
The P-6 is the standardized LED wash fixture in the lighting industry, due to its IP66 rating, superior reliability, and user-centered design. Optimized for high punch in medium distances, the P-6 combines the compact size and low power consumption of the P-5 series with the unique optical approach and ergonomy of the powerful P-10. This all-in-one LED luminaire features pixel-mapping control, long-throw capabilities with native 10º front lens, and all the benefits of magnetic easy-fit filter frames for different beam angles. It is a wash light, a pixel product, and a blinder in a lightweight, smart, and robust design: a must-have LED fixture.
Optical Data
LED expected lifetime (L70) 50,000 hours
Lens options (built-in) 10°
Lightsource 24 x high-power 24W RGBW LEDs
Optional filters Elliptical horizontal, I/P, external (10° x 60° angle)
Elliptical vertical, I/P, external (60° x 10° angle)
Wide, P-1/P-6/P-10, external (47° angle)
Medium, P-1/P-6/P-10, external (18° angle)
Photometric
Color temperature range 2000K - 10000K
Efficacy 37 lm/W*
Light output - all LEDs on 18297 lm
Light output - blue 1469 lm
Light output - green 6369 lm
Light output - red 3965 lm
Lumen per kilogram 1262 lm / Kg
Lux @ 10m 3546 lux
Lux @ 3m 39400 lux
Lux @ 5m 14183 lux
Native beam angle(s) 11° (with 10° lens)
18° (with Med filter frame)
47° (with Wide filter frame)
Native field angle(s) 20°
Physical
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
Effective Projected Area 2.15 Square ft
IK rating IK06
IP class IP66
Lens material Tempered glass front
Material Aluminium
PC/ASA
Rubber
Steel
Net dimensions L x H x W (imperial) 20 x 12.6 x 6.5 inches
Net dimensions L x H x W (metric) 508 x 320 x 166 mm
Net weight 14.5 kg (32 lbs)
Features
Color calibration SGM proprietary, full color calibration
Dehumidifier Head
Dimming 3 Smooth fade in, DMX-controllable curves: gamma corrected, linear, halogen emulation
Emulation mode / effect Tungsten response emulation
Color Filter Emulation
Filters Magnetic easy-fit spread angle filter frames
LED panel 6 individually controllable segments
Other Studio DMX mode(s)
LED frequency control over DMX
Physical head straight up height 301 mm
Strobe Ultra-high-speed strobe effects
Intensity, Duration, Rate and FX control channels
Pixel strobe (up to 6 segments)
Tilt 220°
Tilt locking system Locking system with angle indicator
Electrical
Electrical protection Overload protection with automatic recover
Input voltage (nominal) 115 - 277 VAC; 50 / 60 Hz
Max inrush current 230VAC 70 A
Max power consumption 630 W
Max power thru @ 100 V 13 A
Max power thru @ 230 V 13 A
Power factor 0.96 PF (230 V)
Power Supply Unit Inbuilt IP 67 Auto-ranging electronic switch-mode
Standby power consumption 10 W
Programming and Control
16-bit control Dimmer, Red, Green, Blue, White
Cabled DMX 5 pin XLR input/output
DMX channels 4, 6, 8, 9, 10, 18, 21, 24, 26, 27, 40
DMX modes 13
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
USITT DMX512A
RDM ANSI E1.20
Setting and addressing OLED graphical display / 4 buttons
RDM ANSI E1.20
Standalone mode Quick Color
3 programs with up to 24 scenes
Wireless DMX Lumen Radio with RDM

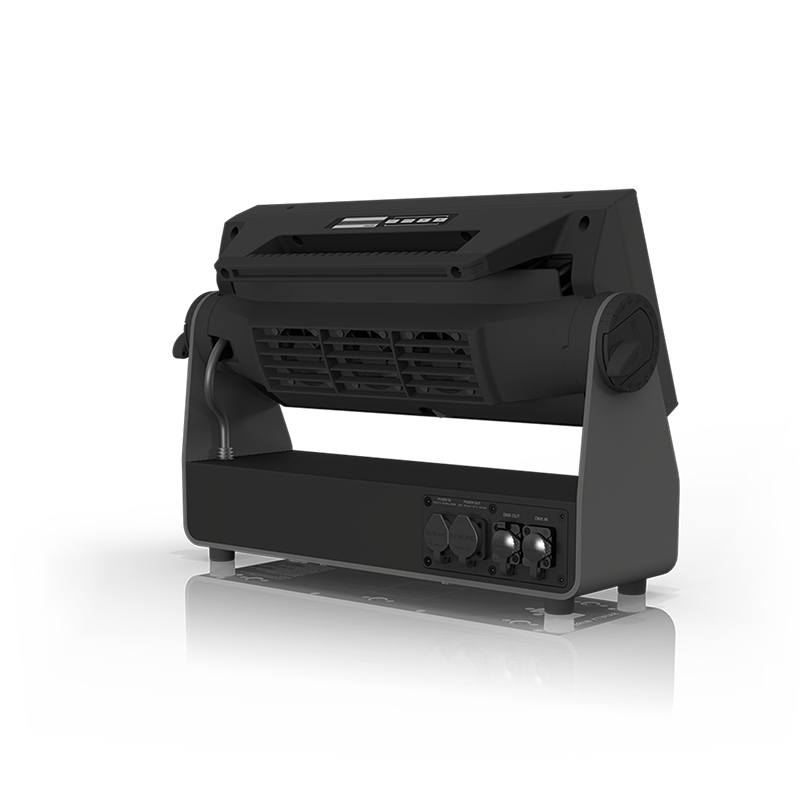

Connections
DMX data in/out IP66 XLR 5-pin connector, Female
IP66 XLR 5-pin connector, Male
Power Power input connector & link-thru
Installation
Mounting point 3 x two quarter-turn locking points for two or three Omega Brackets
Orientation Any
Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional)
Safety features Bottom mount for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Thermal
Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -40°C to 80°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 2149.6 BTU per hour
Total heat dissipation, standby 34.1 BTU per hour
Included items
Included items 2 Omega bracket with quater-turn fasteners
2 m IP66 power cable pigtail
Safety instructions and installation quick guide
Conforms To
CE - 2014/30/EU: EMC Directive EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
EN 55035
CE - 2014/35/EU: Low Voltage Directive EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive 2011/65/EU
UL UL Std. 1573
Certified To
CSA CSA Std. C22.2 No. 166
