DualSource Strobe / Flood / Pixel / Blinder
The Q-8 combines the compact size and low power consumption of the Q-7, the advanced industrial design of the Q-10, and the powerful strobe-blinder of the G-7 BeaSt in 2 separated arrays. This high color quality DualSource luminaire features RGBW mixing, pixel-mapping control, 110º and 75° spread angles, and all the benefits of magnetic easy-fit filter frames. It is a waterproof key or fill light for on location filming, a strobe effect for touring, and a direct view fixture in a lightweight and robust design: the Q-8 the definitive mid-size flood/blinder.
Optical Data
LED expected lifetime (L70) 20,000 hours (Strobe blinders)
50,000 hours (RGBW panel)
Lens options (built-in) 110°
Lightsource 880 x RGB LEDs, 880 x W LEDs (5,700K), 52 x W LEDs (7,000K)
Optional filters Extra medium angle soft diffusion, Q, external
Extra wide angle soft diffusion, Q, external
Elliptical horizontal effect, Q, external
Elliptical vertical effect, Q, external
Photometric
Average CQS (CTC) 92
Average CRI (CTC) 90
Average RF / TM-30-15 (CTC) 89
Average TLCI (CTC) 90
Color temperature 7000K (Strobe blinders)
5700K (RGBW panel, calibrated)
Color temperature range 2000K - 10000K
Efficacy 112 lm/W*
Light output - all LEDs on 53849 lm
Light output - blue 1644 lm
Light output - green 8660 lm
Light output - red 4162 lm
Lumen per kilogram 3989 lm / Kg
Lux @ 10m 346 lux
Lux @ 5m 1386 lux
Max. CRI @ 5600K 96
Max. TLCI @ 5600K 95
Maximum beam angle 107 °
Native beam angle(s) 107° (panel with 110° lens)
75° (Strobe blinders)
Native field angle(s) 140° (panel with 110° lens)
119° (strobe blinders)
Physical
Color options Black - RAL 9004
Custom color - Any RAL
White - RAL 9010
Effective Projected Area 2.15 Square ft
IK rating IK06
IP class IP66
Lens material Tempered glass front
Material Aluminium
PC/ASA
Rubber
Steel
Net dimensions L x H x W (imperial) 20.5 x 12.6 x 6.5 inches
Net dimensions L x H x W (metric) 520 x 320 x 166 mm
Net weight 13.5 kg (29.8 lbs)
Features
Addressable pixels 4 (Panel) + 4 (Strobe Blinders)
Color calibration SGM proprietary, full color calibration
Dehumidifier Head
Dimming 12 DMX-controllable curves (smooth fade in / fast response / low-end extended range)
Emulation mode / effect Tungsten response emulation
Color Filter Emulation
Filters Magnetic easy-fit spread angle filter frames
LED panel 8 individually controllable segments
Other Studio DMX mode(s)
Versapath color engine
Independent control of Panel and Strobe Blinders
LED frequency control over DMX + High Speed mode (up to 2000 fps)
Strobe Ultra-high-speed strobe effects
Dualsource Strobe Blinder
Dual color RGBW strobe
Intensity, Duration, Rate and FX control channels per lightsource (3)
Pixel strobe feature (up to 8 segments)
Tilt 220°
Tilt locking system Locking system with angle indicator
View angle 110°
Electrical
Electrical protection Overload protection with automatic recover
Input voltage (nominal) 115 - 277 VAC; 50 / 60 Hz
Max inrush current 230VAC 70 A
Max power consumption 630 W
Max power thru @ 100 V 13 A
Max power thru @ 230 V 13 A
Power factor 0.96 PF (230 V)
Power Supply Unit Inbuilt IP 67 Auto-ranging electronic switch-mode
Standby power consumption 8 W
Programming and Control
16-bit control Dimmer, Red, Green, Blue, White, Pixels
Cabled DMX 5 pin XLR input/output
DMX channels 10, 12, 27, 34, 36, 41, 52
DMX modes 8
Protocol CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
USITT DMX512A
RDM ANSI E1.20
Setting and addressing OLED graphical display / 4 buttons
RDM ANSI E1.20
Standalone mode Quick Color
3 programs with up to 24 scenes
Wireless DMX Lumen Radio with RDM

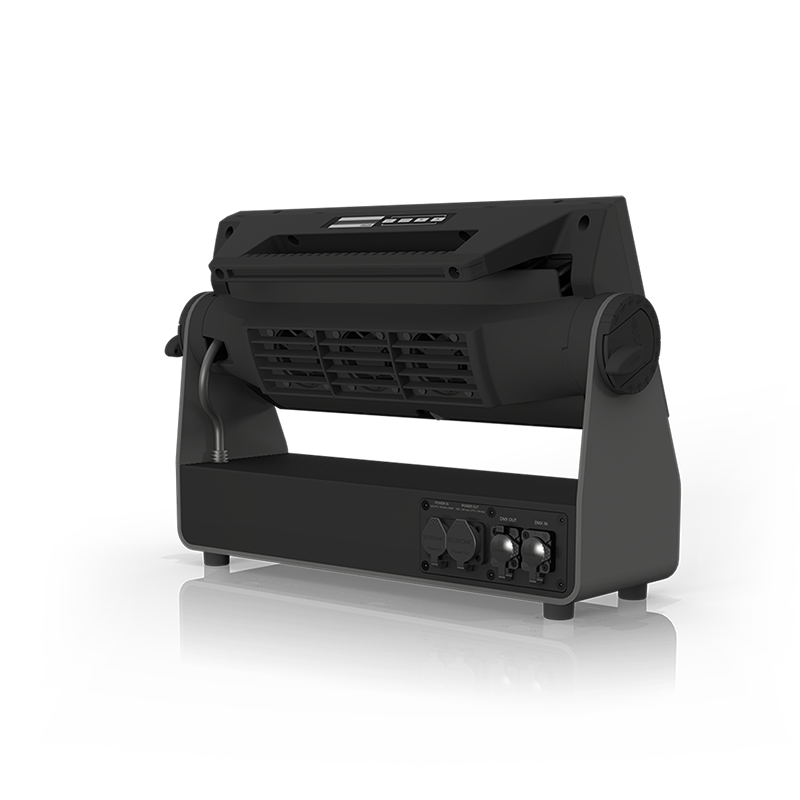

Connections
DMX data in/out IP66 XLR 5-pin connector, Female
IP66 XLR 5-pin connector, Male
Power Power input connector & link-thru
Installation
Mounting point 3 x two quarter-turn locking points for two or three Omega Brackets
Orientation Any
Rigging possibilities Hanging (Omega Bracket included) or ceiling/wall mount (optional)
Safety features Bottom mount for safety wire
Minimum distance to combustible materials: 0.3 meter (11 in).
Thermal
Cooling Active, Forced Air, Temperature-regulated
Humidity (max.) 98 %
Temperature range, operating -40°C to 50°C
Temperature range, start-up -20°C to 50°C
Temperature range, storage -40°C to 80°C
Thermal protection Automatic overtemperature protection
Total heat dissipation, max power 2149.6 BTU per hour
Total heat dissipation, standby 27.3 BTU per hour
Included items
Included items 2 Omega bracket with quater-turn fasteners
2 m IP66 power cable pigtail
Safety instructions and installation quick guide
Conforms To
CE - 2014/30/EU: EMC Directive EN 55015
EN 61547
EN 61000-3-2
EN 61000-3-3
EN 55032
EN 55035
CE - 2014/35/EU: Low Voltage Directive EN 60598-1
EN 60598-2-17
EN 62471
EN 60529
RoHS2 Directive 2011/65/EU
UL UL Std. 1573
Certified To
CSA
CSA Std. C22.2 No. 166
