U5 loudspeaker

Compact 2-way passive loudspeaker

• Components 2 x 6.5" / 1"
• Dispersion 90° x 60° rotatable
• SPLmax 133 dB
• Weight 11.5 kg / 25.4 lb

The U5 is a high-performance, 2-way loudspeaker providing exceptional directivity control and electroacoustic efficiency. Suitable for both mobile and installation applications, this point-source passive cabinet represents the next generation of d&b technology and innovation. It features dual 6.5" drivers in a bipole arrangement with a 1" compression driver mounted onto a 90° x 60° horn that can be rotated 90° without an extra tool (patent pending). The U5 leverages new industrial design and manufacturing techniques for state-of-the-art horn geometry and advanced bass-reflex ports to deliver full bandwidth and extended LF output (-5 dB @ 55 Hz). The U5 loudspeaker provides 60° vertical directivity control starting from 500 Hz, matched with a horizontal dispersion of 90°.

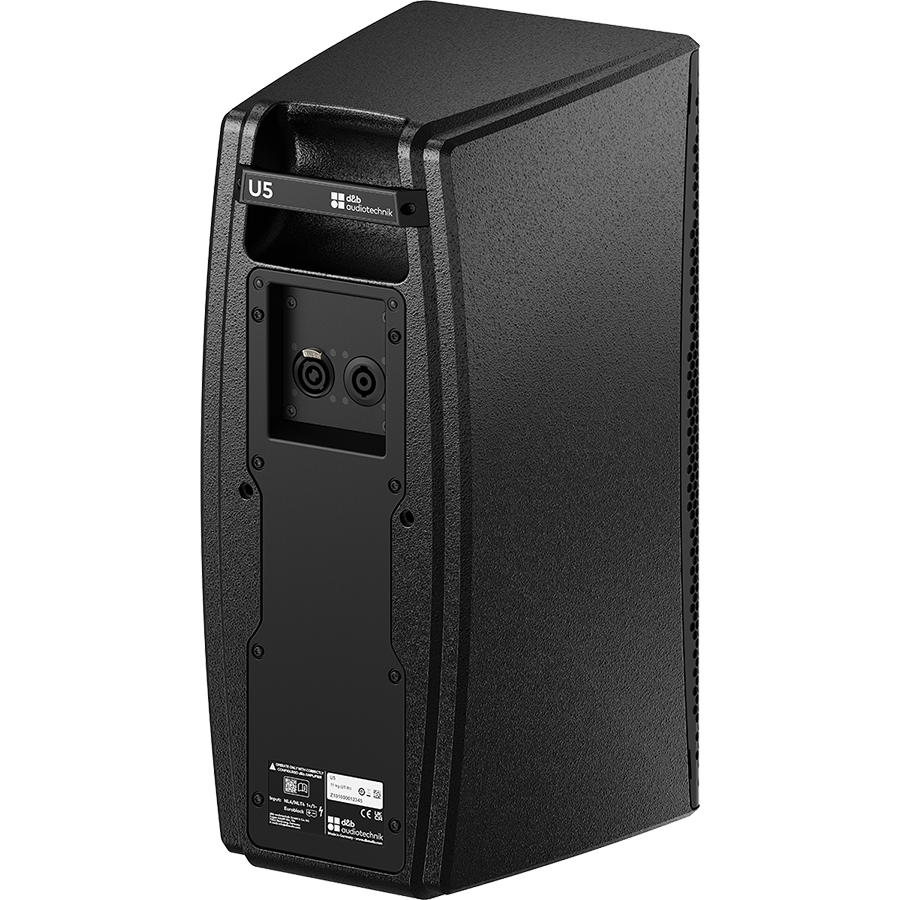

The cabinet is made of highly durable partially recycled ABS and carries an IP54 rating for dust and weather resistance. The front is protected by a rigid metal grille and an acoustically transparent foam. The back has a handle and M10 threated inserts for attaching d&b rigging hardware designed specifically for either mobile or install uses. The U5 can be both mounted or flown, allowing for flexible deployment, especially when used as a standalone full-range system.

Amplifiers: The U5 is designed for electroacoustic efficiency and works with any standard d&b amplifier. It is optimised for use with 5D amplifiers.
