B10 subwoofer - NAN Audiovisuais

B10 subwoofer

  2. U-Series

B10 subwoofer

Solicitar orçamento

Mobile specific compact multipurpose subwoofer

  • Components 2 x 10”
  • Dispersion Omnidirectional
  • SPLmax 130 dB*
  • Weight 27 kg / 60 lb

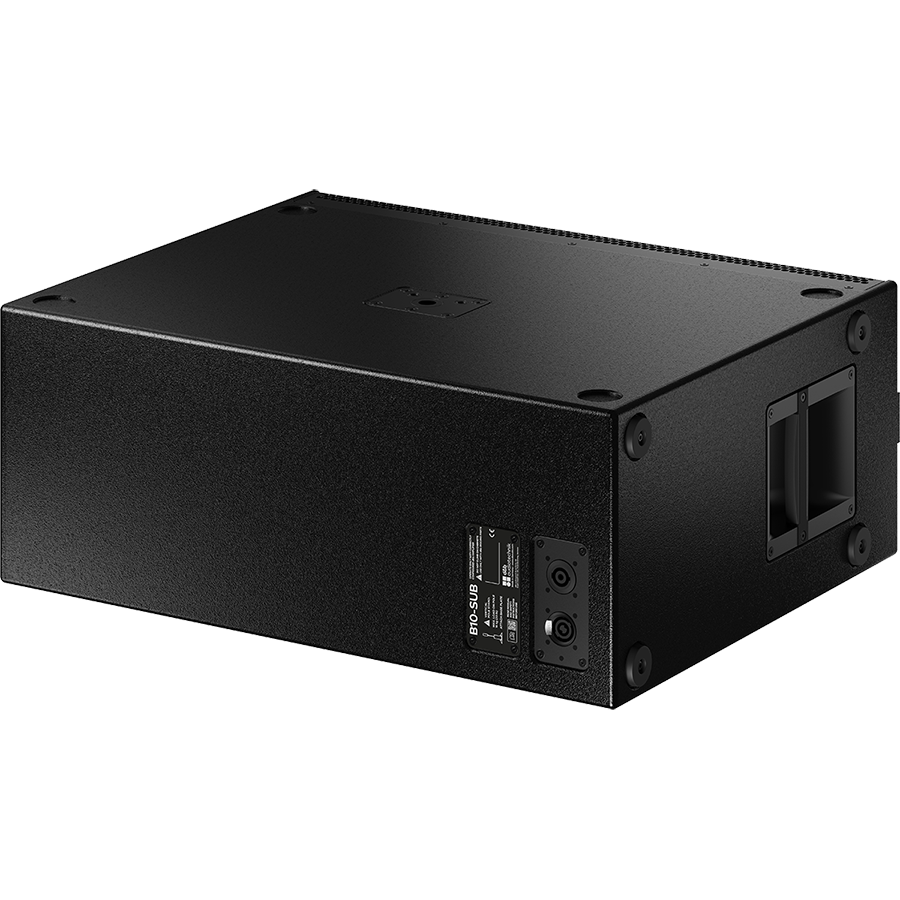

The B10-SUB is a mobile-specific compact multipurpose subwoofer that optimally pairs with the U-Series and other compact d&b loudspeaker systems. It includes two 10” drivers, housed within a bass-reflex cabinet, that features a newly sophisticated port design. The form factor makes this subwoofer an ideal solution for small footprint applications or set-ups where low heights are necessary. The highly efficient electroacoustical subwoofer design of the B10- SUB allows it to achieve its full performance with 5D amplifiers. Check the 5D PowerShare Calculator for optimal configuration. The B10-SUB is also available in these variants:

  • passive installation variant (Bi10-SUB)
  • networked mobile variant (B10N-SUB)
  • networked installation variant (Bi10N-SUB)

Amplifiers: The B10-SUB is designed for electroacoustic efficiency and delivers full output with all current d&b amplifiers.


Página do fabricante

  • System data

    Frequency response (-5 dB standard): 38 Hz – 130 Hz

    Frequency response (-10 dB standard, IEC60268): 34 Hz – 170 Hz

    Frequency response (-5 dB 100 Hz mode): 38 Hz – 100 Hz

    Frequency response (-10 dB 100 Hz mode, IEC60268): 34 Hz – 140 Hz

    Max. sound pressure (*1)
    with D90/D80/D40/40D: 130 dB (*2)
    with D25/D20/25D/30D: 128 dB (*2)
    with 5D/5DM: 127 dB (*2)


    Loudspeaker data

    Nominal impedance: 6 ohms

    Power handling capacity (RMS/peak 10 ms): 500/1200 W

    Components: 2 x 10" driver

    Connections: 1 x NLT4 F/M



    Dimensions / weight

    Dimensions (h x w x d):

    280 x 706 x 565 mm
    11 x 27.8 x 22.25"

    Weight: 27 kg / 60 lb

    (*1) 1 m, free field, SPLmax peak, pink noise test signal with crest factor 4
    (*2)  preliminary data
