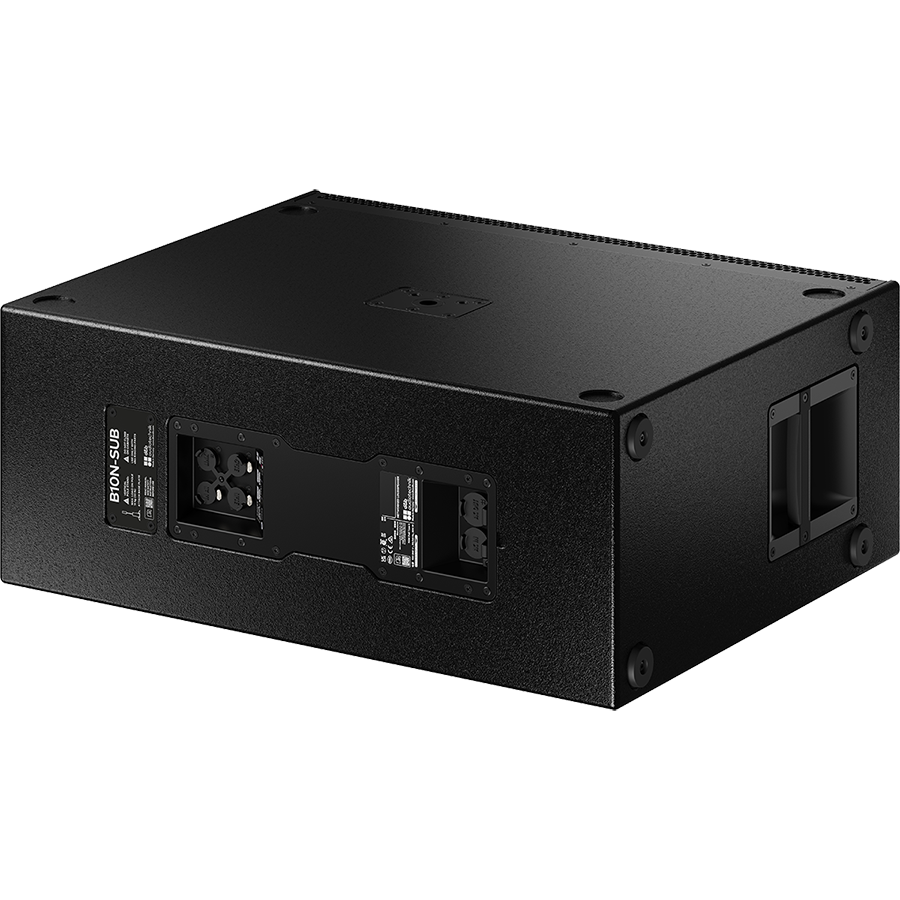

B10N-SUB

Mobile specific compact multipurpose networked subwoofer

• Components 2 x 10”
• Dispersion Omnidirectional
• SPLmax 129 dB*
• Weight 28.5 kg / 63 lb

The B10N-SUB is a mobile-specific networked compact multipurpose subwoofer that optimally pairs with the U-Series and other compact d&b loudspeaker systems. It includes two 10” drivers, housed within a bass-reflex cabinet, that features a newly designed sophisticated port concept that minimizes port noise and audible flow turbulence even at the highest SPL. The form factor makes this subwoofer an ideal solution for small footprint applications or set-ups where low heights are necessary. Based on the same technology as the U-Series Networked variants, the B10N-SUB provides all hybrid-topology advantages, offering system architecture freedom also for high-impact low-end extension.

When operating on PoE++ B10N can be powered by DN2, the d&b proprietary AVB MILAN PoE++ Network Switch for a rugged, reliable solution or other 3rd party switches with equivalent performance capabilities and certifications.

The B10N-SUB is also available in these variants:

• networked installation variant (Bi10N-SUB)
• passive mobile variant (B10-SUB)
• passive installation variant (Bi10-SUB)

Amplifiers: When operating on PoE++ B10N/Bi10N can be powered by DN2, d&b proprietary AVB MILAN PoE++ Network Switch for a rugged, reliable solution or other 3rd party switches with equivalent performance capabilities and certifications.
