Size & weight

• 220 x 290 x 57 mm / 8.66 x 11.42 x 2.24 in

• 1.5 kg / 3.31 lbs

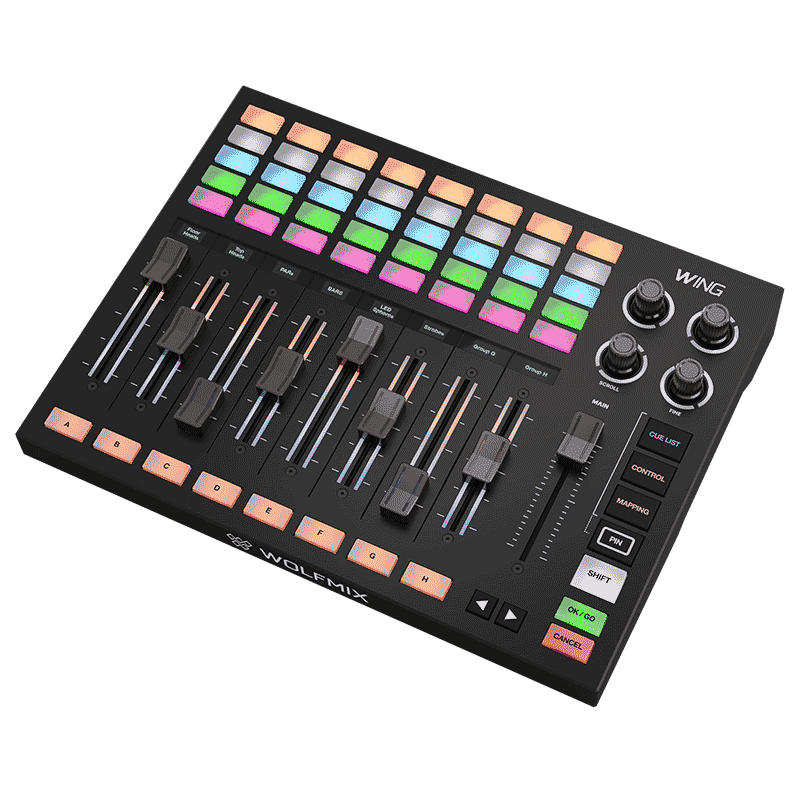

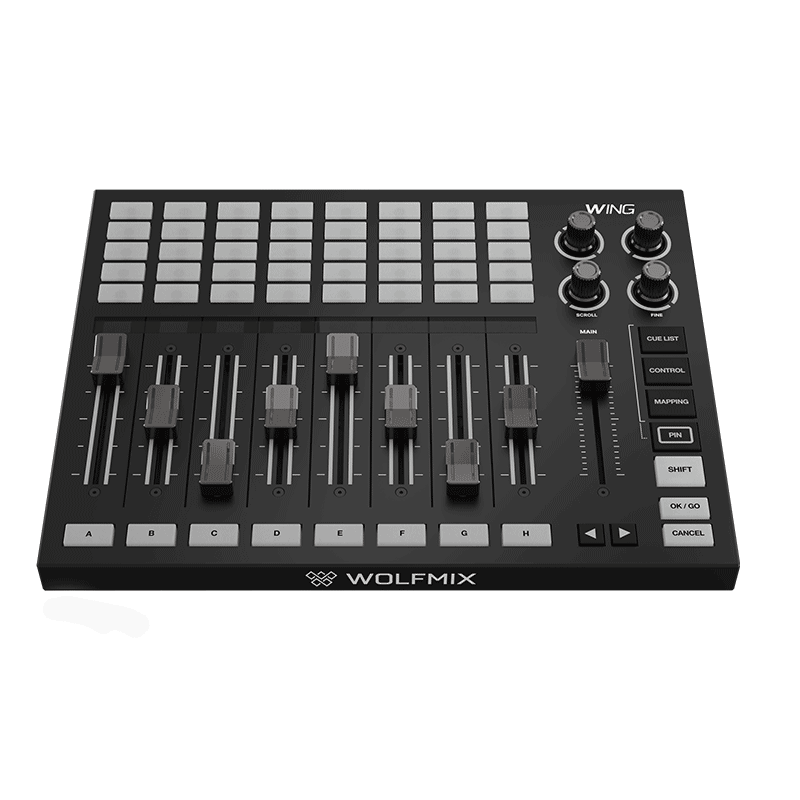

Faders

• 8 motorised faders with electroplated capacitive touch fader caps

• 8 lightguides. 4 RGB LEDs per fader operate in single or dual color modes

• Single main fader Displays

• 8 monochrome OLED strip modules

• 64 x 32 pixels Button pads

• 57 RGB LED backlit silicone buttons with matt oil finish

• 8 x 5 Matrix

• 8 x Group select

• 3 x Mode (Cue List, Control, Mapping)

• 2 x Paging

• OK/GO

• Cancel

• Shift

• Pin Encoders

• 1 x Detented

• 3 x Non-detented

• Electroplated caps

• Dedicated SCROLL encoder (detented)

• Dedicated FINE control encoder (non-detented)

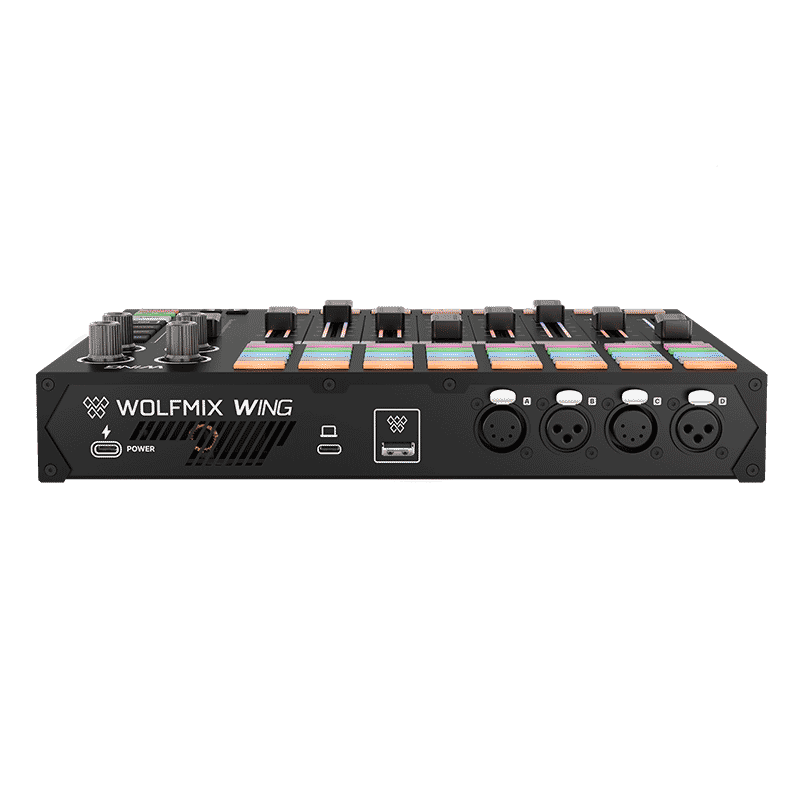

DMX

• 2 x 3-pin DMX OUT XLR connectors

• 2 x 5-pin DMX OUT XLR connectors

• Every port is freely assignable to any of the available universes

USB

• USB-C Power - 15 V, 3 A

• USB-C Data

• USB-A - connects and powers the Wolfmix W1

Housing

• ABS Plastic

• Powder-coated steel base plate with 100mm VESA (M4, 6mm max)

Processing

• 220 MHz CPU with ARM core

• 8 MB RAM

• 16 MB Flash

• Dedicated second processor driving the motorised fader bank
