GENIO Beam

  2. Genio Series

GENIO Beam

Solicitar orçamento

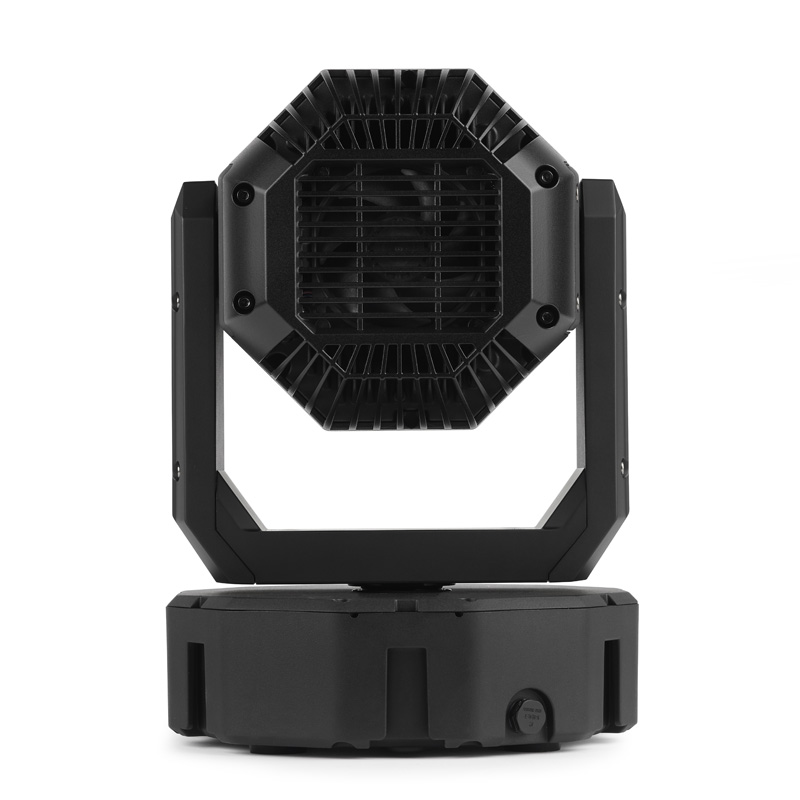

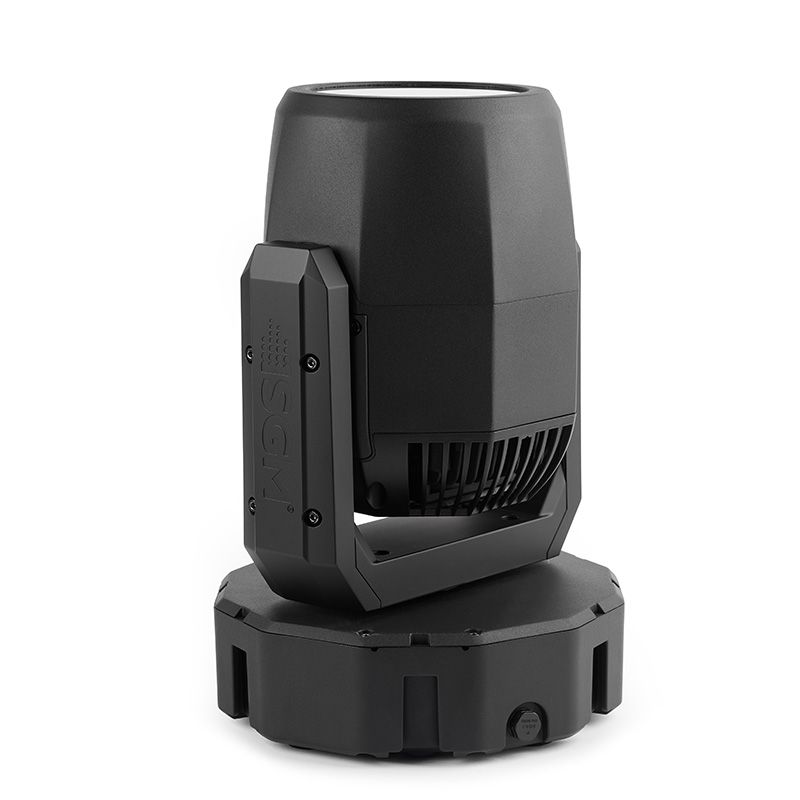

GENIO Beam is the structural backbone of the system: a compact versatile IP54 moving head built around a 95W RGBL source, a 2°–33° motorized zoom and a refined midair beam effect.

Zoom in for a tight, precise beam, or open up for a wide wash, the GENIO Beam moves between the two without breaking the look.

Continuous pan/tilt rotation means no snapping back to reset, so builds stay clean at any array size, from a single unit to a full grid.

Página do fabricante Brochura

  • Optical Data

    Lightsource: RGBL

    Prism: Kaleidoscope Prism Effect

    Zoom: Motorized

    Zoom range: 2° to 33°



    Photometric

    Color quality - CRI >75

    Color temperature range: 2000K - 10000K

    Efficacy: 8.7 lm/W*

    Light output - all on: 1200 lm*

    Lux @ 5m: 35000 lux



    Physical

    Color options: Black - RAL 9004

    IK rating: IK06

    IP class: IP54

    Material: Aluminium,  Plastic, Stainless steel,  Tempered Glass

    Net dimensions L x H x W (imperial):  9.1 x 12.9 x 9.1 inches

    Net dimensions L x H x W (metric): 231 x 327 x 231 mm

    Net weight: 8.15 kg (18 lbs)



    Features

    Pan: Endless

    Tilt : Endless



    Electrical

    Input voltage (nominal): 100 - 240 VAC; 50 / 60 Hz

    Max power consumption: 200 W

    Max power thru @ 100 V:  2.4 A

    Max power thru @ 230 V: 0.9 A

    Standby power consumption: 33 W



    Programming and Control

    Protocol:  sACN Art-Net

    Setting and addressing: NFC RDM



    Connections

    Ethernet Connections: RJ45 connectors



    Installation

    Maximum Units Vertical: 6 pcs

    Mounting point: 2 quarter-turn locking points for one Omega bracket ; 2 M-12 threaded mounting points for connection to a bracket or surface

    Rigging possibilities: Hanging (Using the GENIO compatible connectors)

    Safety features: Mount for safety wire



    Thermal

    Cooling: Active, Forced Air, Temperatureregulated

    Humidity (max.): 98 %

    Temperature range, operating: -10°C to 45°C

    Temperature range, start-up: -10°C to 45°C

    Temperature range, storage: -10°C to 45°C

    Thermal protection: Automatic overtemperature protection

    Total heat dissipation, max power: 682.4 BTU per hour

    Total heat dissipation, standby: 112.6 BTU per hour



    Included items

    Included items: 2 x GENIO Rigging Connector;  1 x GENIO Fixture Connector, M Foam Insert
