ETC ColorSource Spot V
- ETC
- ENGINES/CORPOS DE PROJETOR
An LED luminaire crafted by lighting experts with a proven history of quality spot fixtures, ColorSource Spot V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Spot V provides soft pastels and bold saturated colors from a single fixture. Featuring wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, ColorSource Spot V is the ultimate in versatility.
APPLICATIONS
• Theatres and performance spaces
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Cafetoriums
PRODUCT FEATURES
• Five-color array (red, green, blue, indigo, and lime)
• Simple user interface with seven-segment display
• powerCON® TRUE1® TOP connector
• DMX/RDM in and thru (5-pin XLR)
• Multiverse wireless DMX/RDM

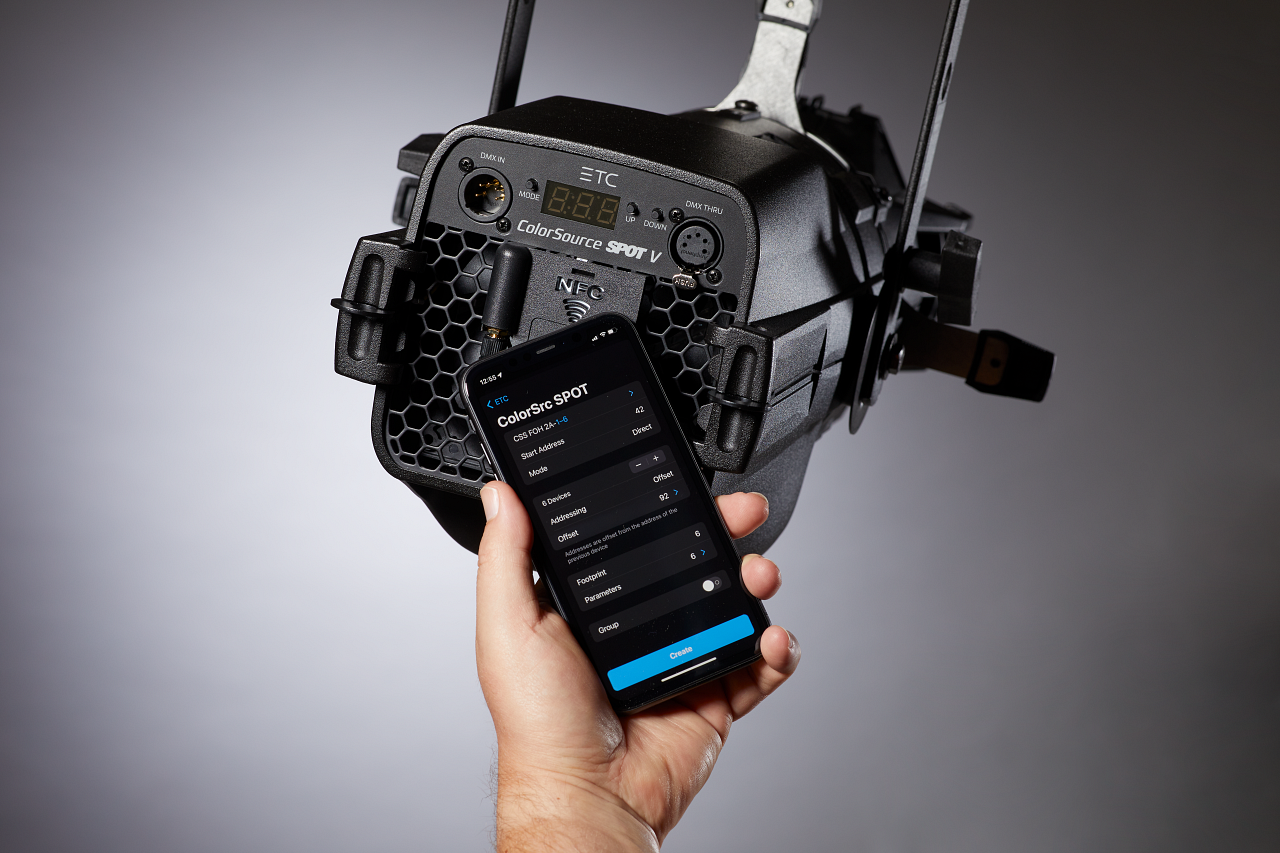

• NFC (near field communication) configuration
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing

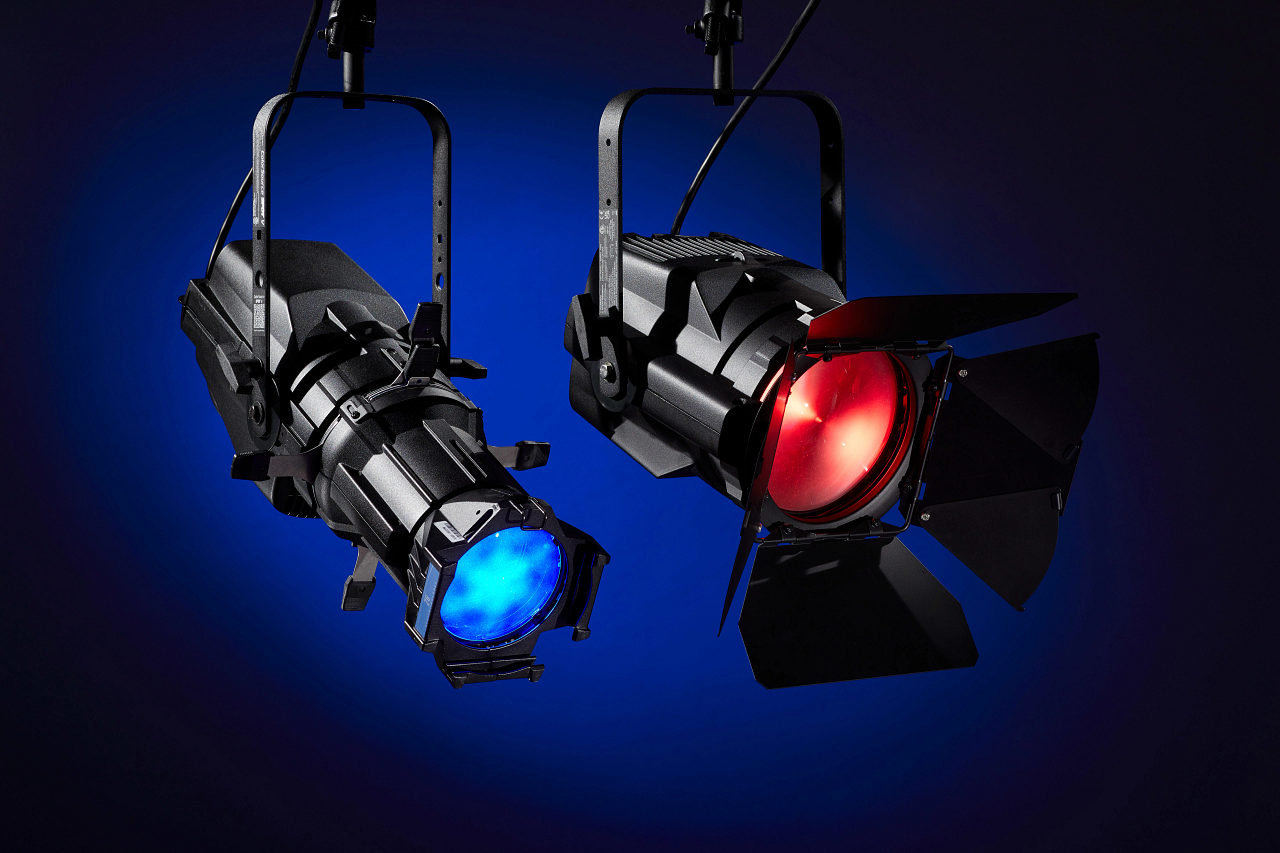

• Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light
Source
LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
Max lumens: 9,498
Lumens per watt: 48
L70 rating (hours to 70% output)*: 54,000 hours
Color
Colors used: Red, green, blue, indigo, lime
Color temperature range: Color mixing
Calibrated array: Yes
Red shift: No
Optical
Beam angle range: Swappable lens tubes, 5–90 degrees
Gate size: 80 mm
Aperture size: 6.25–14 in (depending on lens tube)
Pattern projection: Yes
Pattern size: A or B
Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)
Notes: Can be used with LED CYC and Fresnel adapters
Control
Input method: DMX512 via 5-pin XLR connector
Protocols: DMX512/RDM
Modes (footprint): 4 modes, see page 4
RDM configuration: Yes
UI type: Seven-segment, three-button interface
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes (5)
Onboard effects: No
FixtureLink: Yes
Notes: 15-bit virtual dimming engine
Electrical
Voltage range: 100–240 VAC 50/60 Hz
Input method: powerCON TRUE1 TOP power in and thru
Inrush: 55 A at 120 V (First half-cycle); 59 A at 240 V (First half-cycle)
Fixtures per circuit: 8 fixtures (R20 module or similar)
Wattage typical / standby: 199 W / 2 W at 100 V; 197 W / 2 W at 120 V; 194 W / 2 W at 240 V
Current draw typical / standby: 2 A / 0.07 A at 100 V; 1.65 A / 0.08 A at 120 V; 0.90 A / 0.10 A at 240 V
Thermal
Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
dB range: 24.4 dBA average at 1 m
BTUs/hour: 672
Physical
Materials: Die-cast, all metal housing
Color options: Black, white, silver, or custom color
Mounting options: Yoke
IP rating: IP20
Weight: 7.7 kg (17 lb) (without lens)
Included accessories: Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo holder
Notes: See page 5 for power cable options
