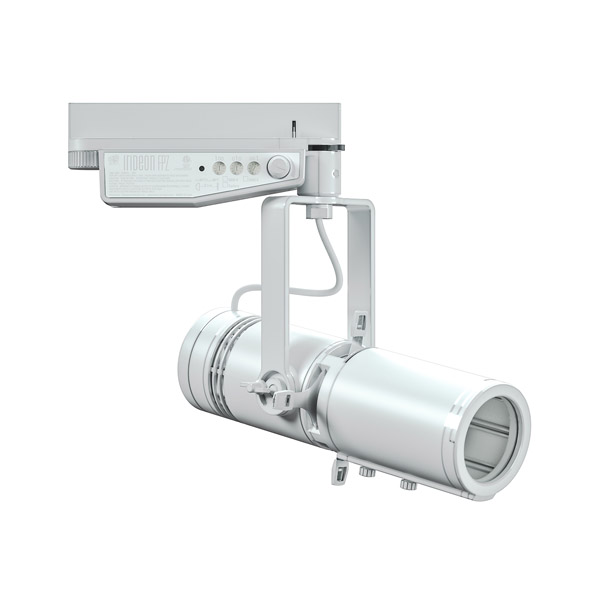

ETC Irideon FPZ
The Irideon FPZ is an LED framing projector with zoom optics that provides the highest quality beam, making it ideal for museums, lobbies, retail stores and more. A range of color temperature options from 2700K to 5000K make the FPZ well suited for any application, while track, canopy and portable mounting options provide the flexibility to meet any installation’s needs. The superior quality zoom optics paired with three-plane shutters and a rotating barrel enable the FPZ to create a sharp or soft focused light in any shape you need. And when used with either glass or metal gobos, logos and designs look sharp and distinctive.
Lighting with distinction
Irideon FPZ pairs the best of the Source Four Mini LED platform with exceptional output and a sleek industrial design to light your space with elegance and subtlety. Available for use with our DataTrack system, the feature-rich design is perfect for museums, lobbies, and retail environments.
Truly a Source Four fixture at heart, Irideon FPZ boasts its own set of enhancements such as lockable 3-plane shutters, zoom optics, and the ability to dim using either DMX or a local dimming knob located on the DataTrack adapter. But the beam is still everything you expect and more; Irideon FPZ puts out over 800 lumens, 33% brighter than Source Four Mini LED and every bit as pleasing to the eye with a wide selection of color temperatures.
FPZ gives you the versatility you need to create the beautiful light you want from an integrated, unassuming design that won?t dominate your space.
LED details: Cree XLamp® MT-G2 EasyWhite® LED
Max field lumens: 904
Lumens per watt: 45.2
L70 rating (hours to 70% output): 46,000 hours
Colors used: White
Color temperature options: 2700K / 3000K / 4000K / 5000K
Calibrated array: No
Red shift: No
Beam angle range: 25°–50°
Pattern projection: Yes
Pattern size: E (37.5 mm with a 25.4 mm image area)
Front magnetic media holder: Accommodates 66 mm (2.6 in) diameter color media, diffusion or glass with a maximum thickness of 1.75 mm
Camera flicker control/Hz range: 1.2 kHz (standard); 25 kHz (DMX version only-set via RDM)
Notes: Projector-quality, high-contrast lenses; Beam edge is continually adjustable hard to soft
