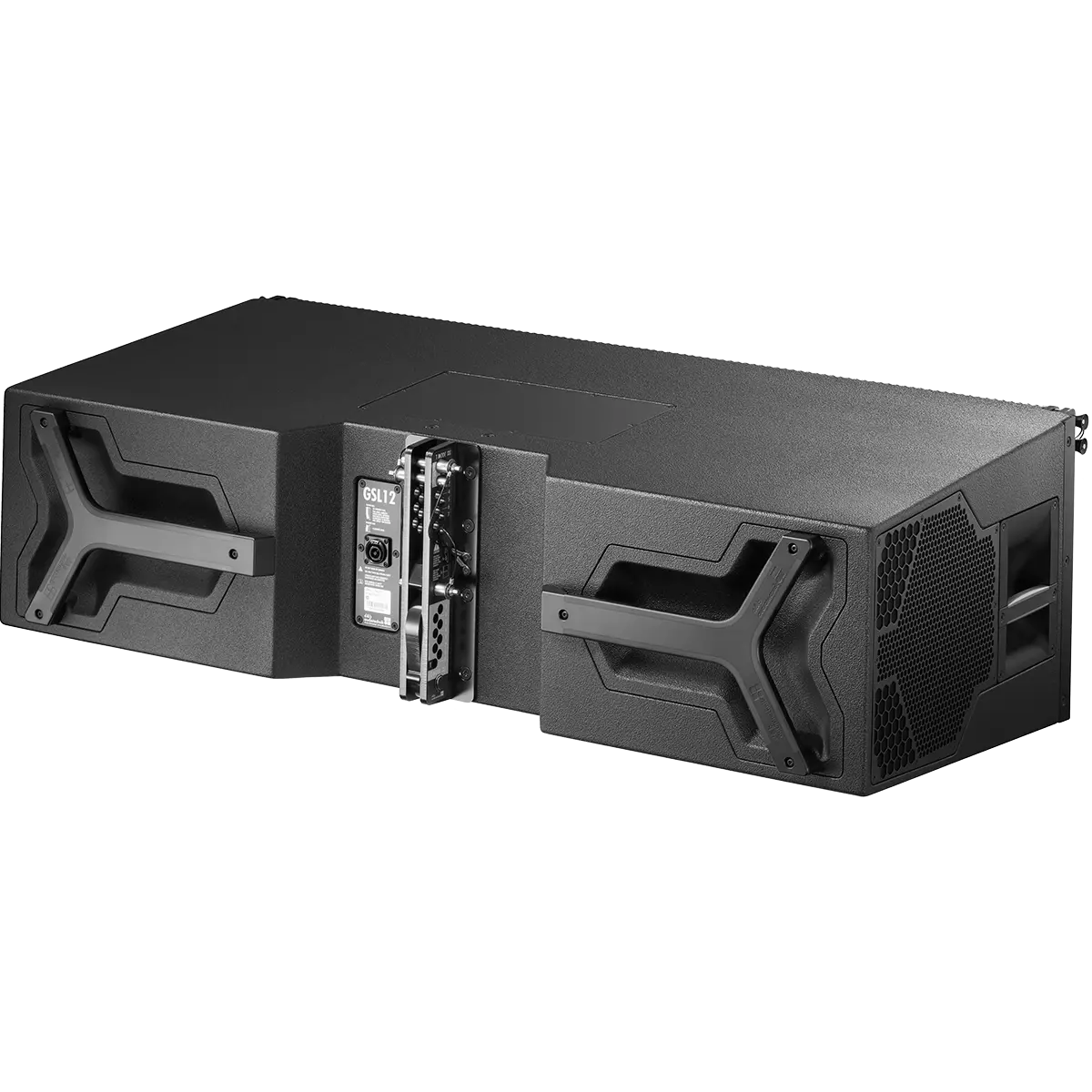

The GSL12 is a line array module specifically designed for largescale sound reinforcement. Up to twenty-four GSL12 loudspeakers can be flown in vertical columns producing a 120? constant directivity dispersion pattern in the horizontal plane. The GSL8 houses two 14" neodymium forward facing LF drivers and two side firing 10" neodymium LF drivers. A coaxial mid-high section contains an MF horn with a 10" driver and three 1.4" exit, 3.4" voice coil HF compression drivers mounted to a dedicated wave shaping device. Splay angles between cabinets can range from 0? to 7? in 1? increments. The loudspeakers are driven actively by two channels of an appropriate d&b amplifier, one channel powering the 14? LF drivers, the second channel powers all other components, these are passively crossed-over.
Large format 3-way line array loudspeaker
Components LF: 2 x 14" + 2 x 10"; MF: 1 x 10"; HF: 3 x 1.4" exit compression driver with 3.4" coil Dispersion 120?
SPLmax 149 dB
Weight 80 kg / 176 lb
