Yi8

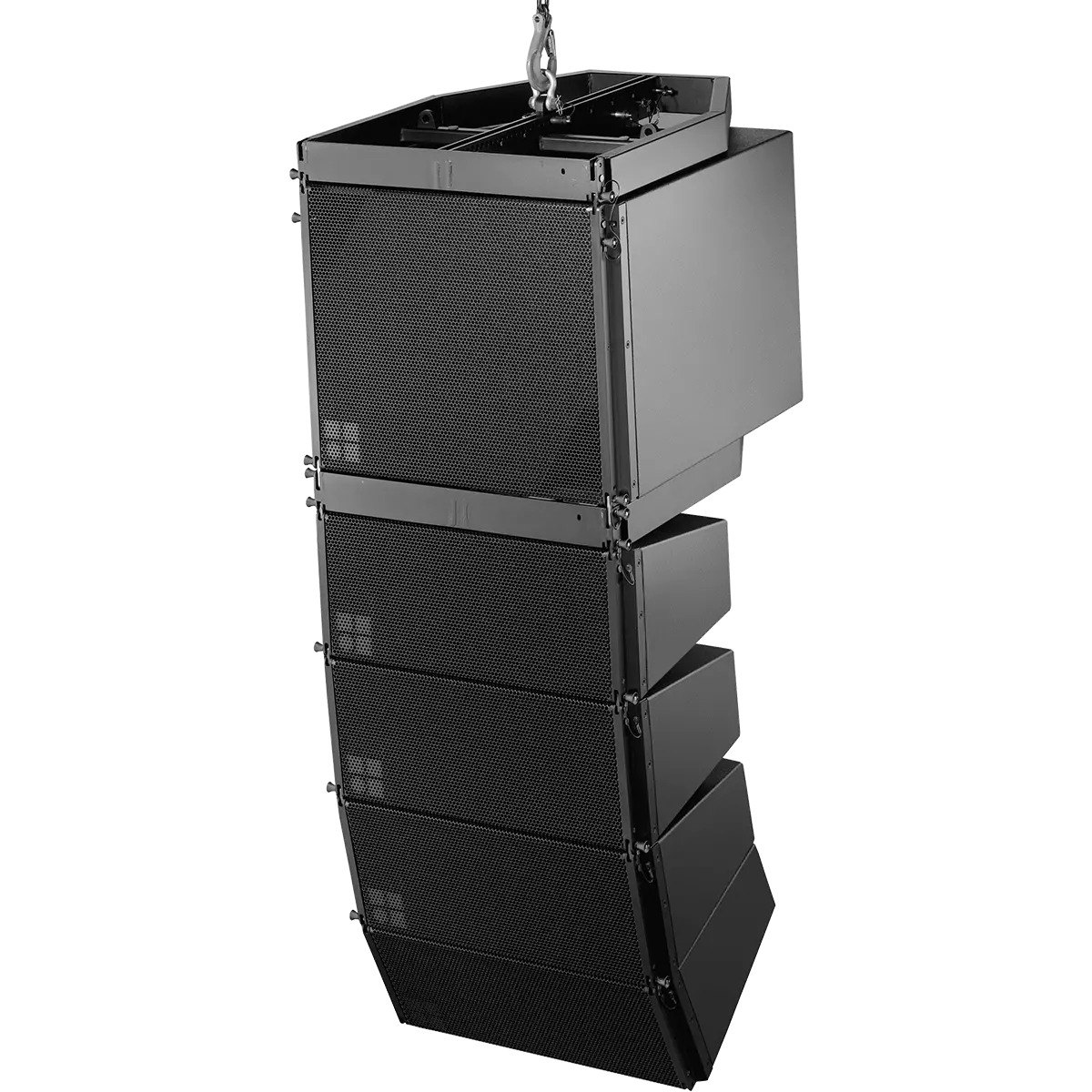

The compact Yi8 line array loudspeaker is designed for use in vertical columns. The 2-way passive design features two 8” drivers in a dipole arrangement and a centrally mounted 1.4” compression driver with a wave transformer. The Yi8 is the installation version of the Y8 loudspeaker and differs only in cabinet construction, finish and mounting hardware. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These high performance line array modules offer 80° horizontal directivity controlled down to 500 Hz. The mechanical and acoustical design enables vertical arrays of up to twenty four loudspeakers with vertical splay angles from 0° to 14° with a 1° resolution. It can be used in columns of purely Yi8 loudspeakers or combined with Yi12 and/or Yi-SUB cabinets. The loudspeaker cabinet is constructed from marine plywood and has an impact resistant paint finish, while Weather Resistant (WR) and Special Color (SC) versions are available. The Weather Resistant option provides an IP55 rating, and enables operation of loudspeakers in changing ambient conditions.
Installation specific high performance 2-way passive line array loudspeaker
Components 2 x 8"/1.4"
Dispersion 80º
SPLmax 139 dB
Weight 20 kg / 44 lb
