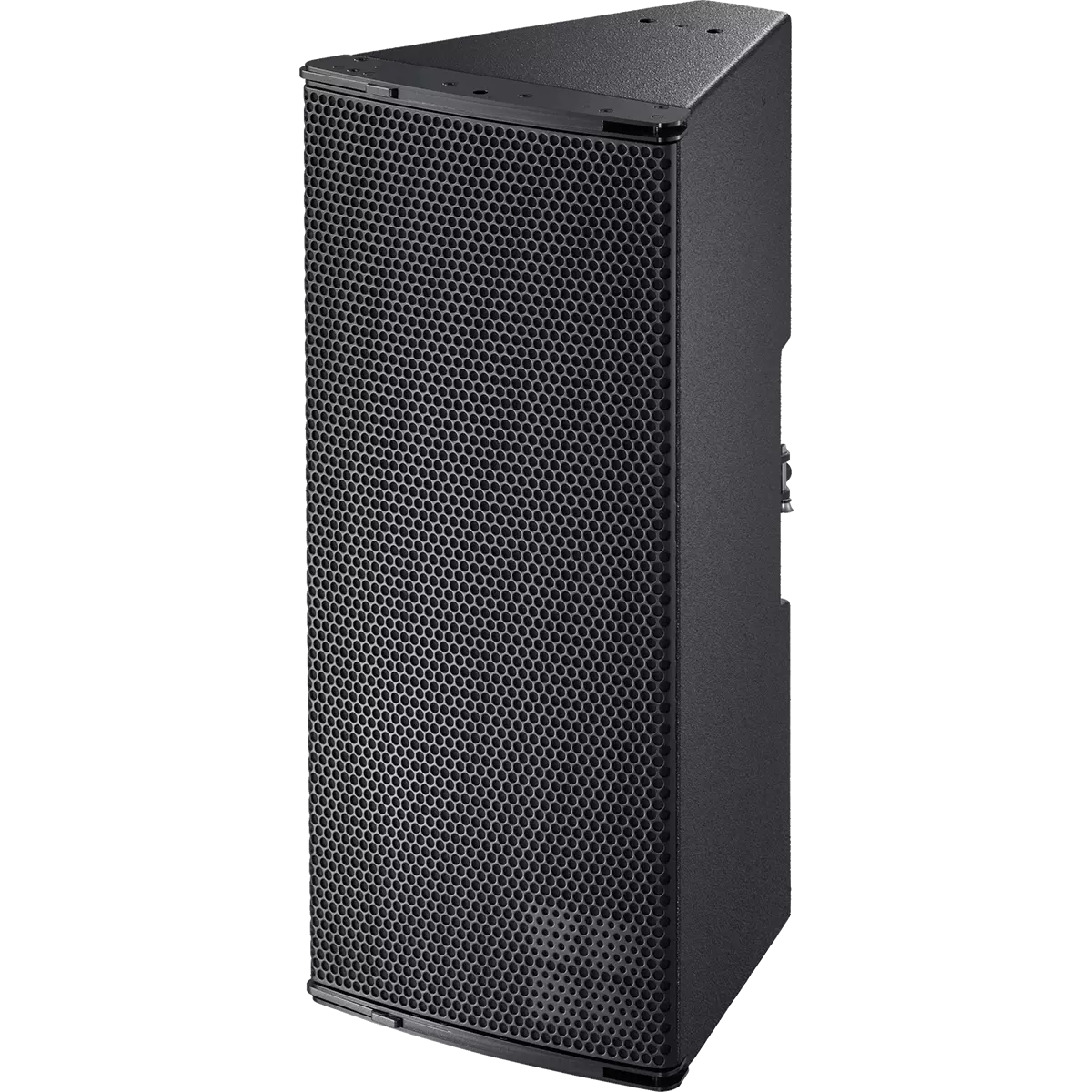

The ALi60 is the installation variant of the AL60 augmented array loudspeaker for medium scale sound reinforcement. When the AL Flyingframe top is used, up to four cabinet modules can be flown in vertical columns producing a 60? constant directivity dispersion pattern in the horizontal plane. The ALi60 can also be applied as horizontal array of maximum four loudspeakers using the AL Flying adapter. The ALi60 loudspeaker module is a passive 2-Way design housing two x 10" neodymium LF drivers and one 1.4" exit HF compression driver with 3" diaphragms mounted to a dedicated wave shaping device and a passive crossover network. The wave segments of each cabinet couple without gaps and sum up coherently. Splay angles between adjacent cabinets can be set in a range from 20? to 40? in 5? increments resulting in a total coverage of 50? up to 70? for two cabinets, with a maximum total coverage of 150? per array.
Installation specific medium format 2-way augmented array loudspeaker
Components 2 x 10" LF driver, 1 x 1.4? exit compression driver with 3" coil
Dispersion 60? x 30?
SPLmax 139 dB
Weight 22 kg / 48.5 lb
