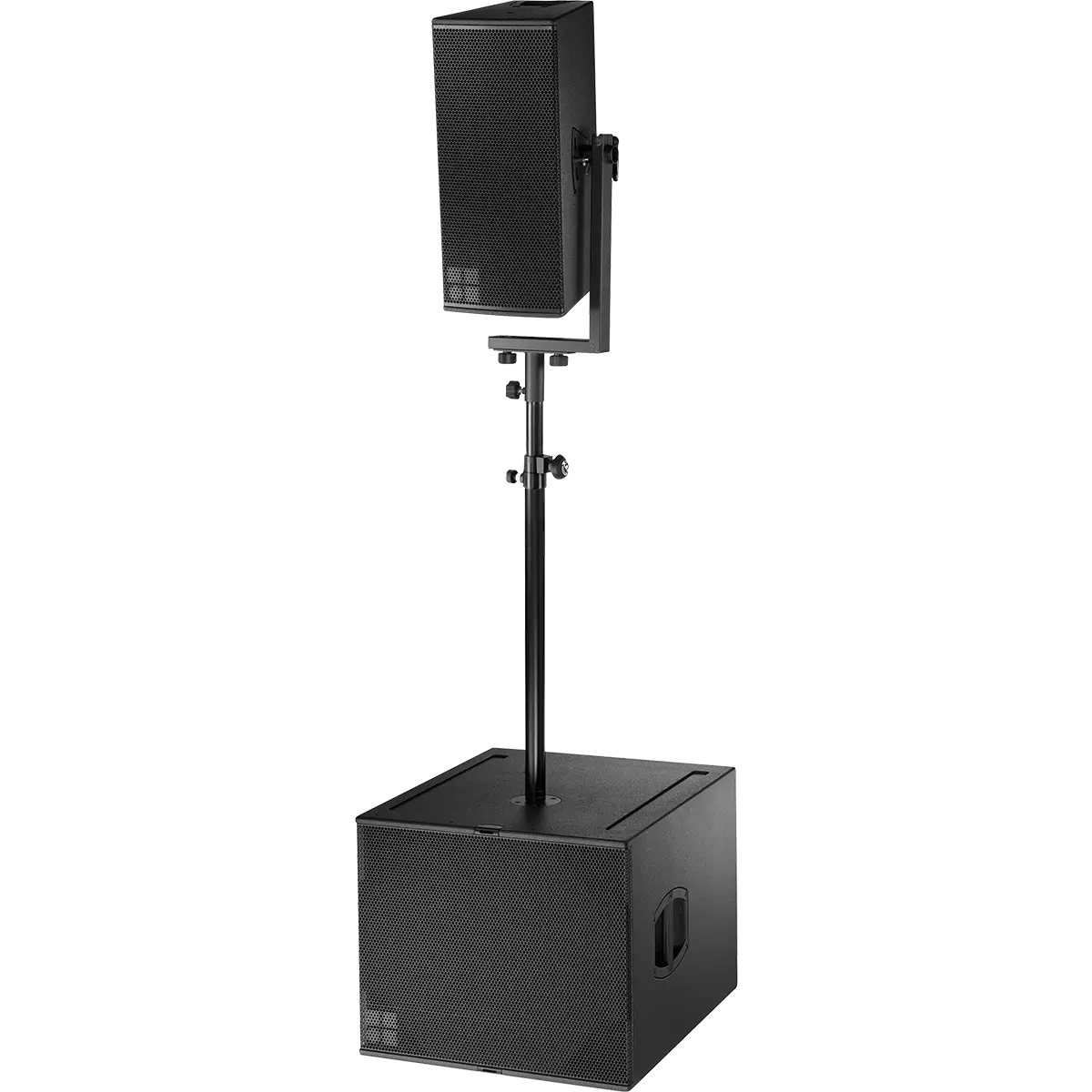

The compact, 2-way passive Y7P loudspeaker features two 8? drivers in a dipole arrangement with a 1.4? compression driver mounted onto a rotatable CD horn. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 75? horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40?. The horn can be rotated by 90? to enable horizontal orientation. The Y7P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown. The loudspeaker cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish.
High performance 2-way passive point source loudspeaker
Components 2 x 8"/1.4"
Dispersion 75? x 40?
SPLmax 137 dB
Weight 18 kg / 40 lb
