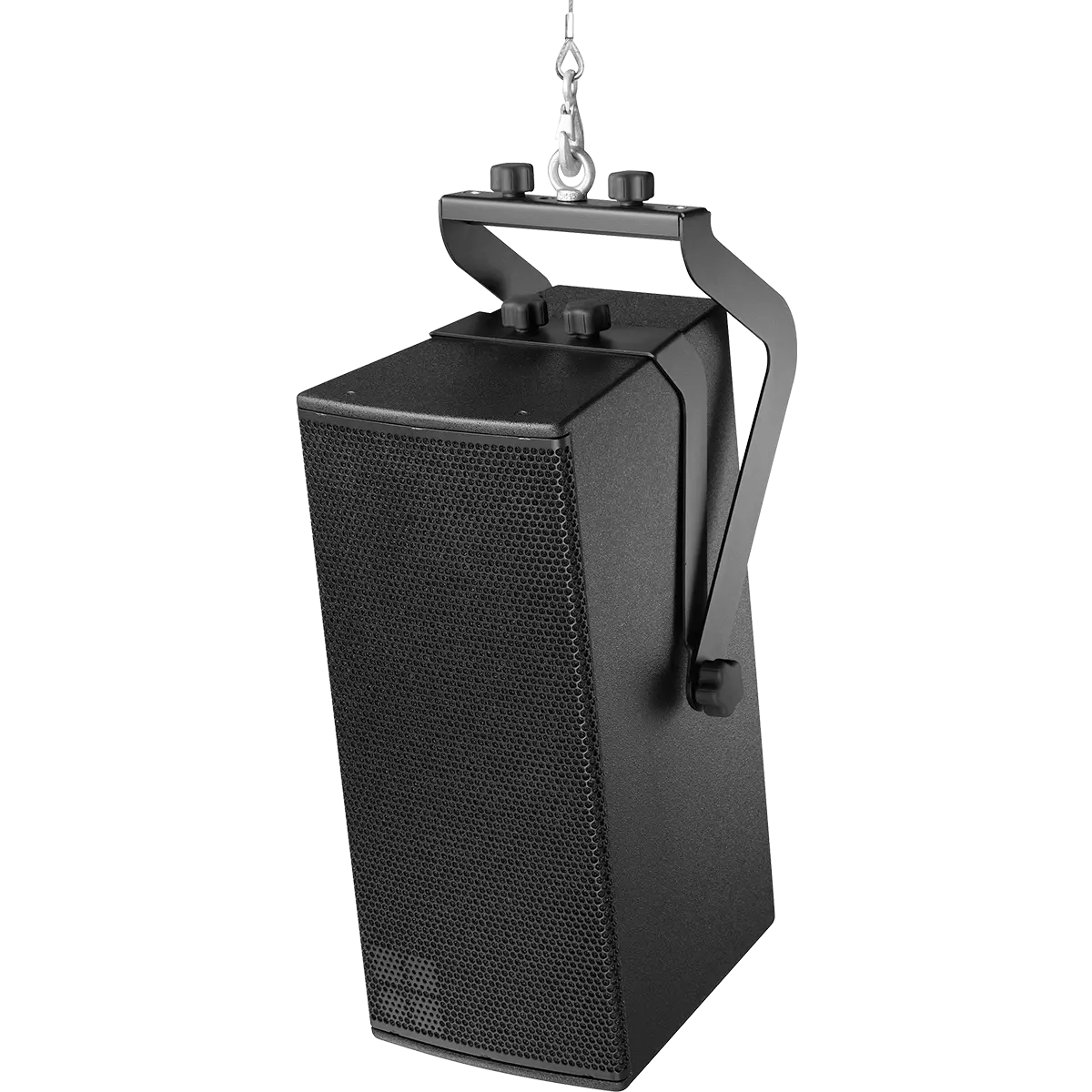

The compact, 2-way passive Yi10P loudspeaker features two 8” drivers in a dipole arrangement with a 1.4” compression driver mounted onto a rotatable CD horn. The Yi10P is the installation version of the Y10P loudspeaker and differs only in cabinet construction, finish and mounting hardware. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 110° horizontal directivity controlled down to 500 Hz, matched with a vertical dispersion of 40°. The horn can be rotated by 90° to enable horizontal orientation. The Yi10P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown.
Installation specific high performance 2-way passive point source loudspeaker with wide dispersion
Components 2 x 8"/1.4"
Dispersion 110º x 40º
SPLmax 136 dB
Weight 18 kg / 40 lb
