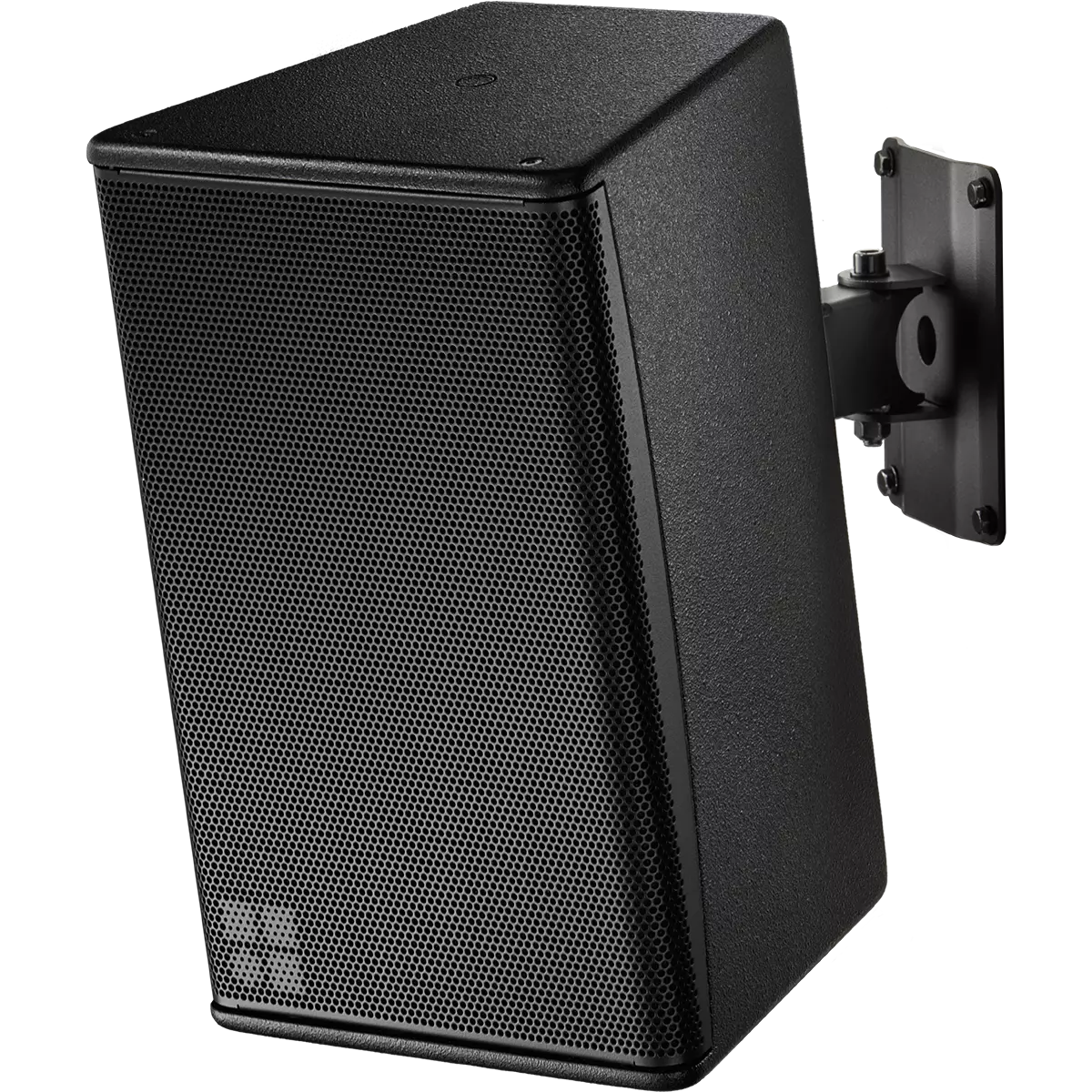

The 8S is a full range, 2-way loudspeaker in a bass-reflex enclosure, utilizing an 8"/1" coaxial driver combination with a passive crossover. The coaxial design offers a symmetrical dispersion pattern in the horizontal and vertical plane while the cabinet may be mounted in either attitude. With its frequency response from 70 Hz to 20 kHz the 8S can be used as a full range system and also be supplemented by subwoofers from the xS-Series. The enclosure is constructed from marine plywood with an impact resistant black or white paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam and the top and bottom panels incorporate an M8 threaded insert. The rear panel incorporates two M8 threaded inserts, two NL4 connectors and a two pole screw terminal block.
Installation specific 2-way compact coaxial loudspeaker
Dispersion 100? conical
SPLmax 127 dB
Weight 7.4 kg / 16 lb
