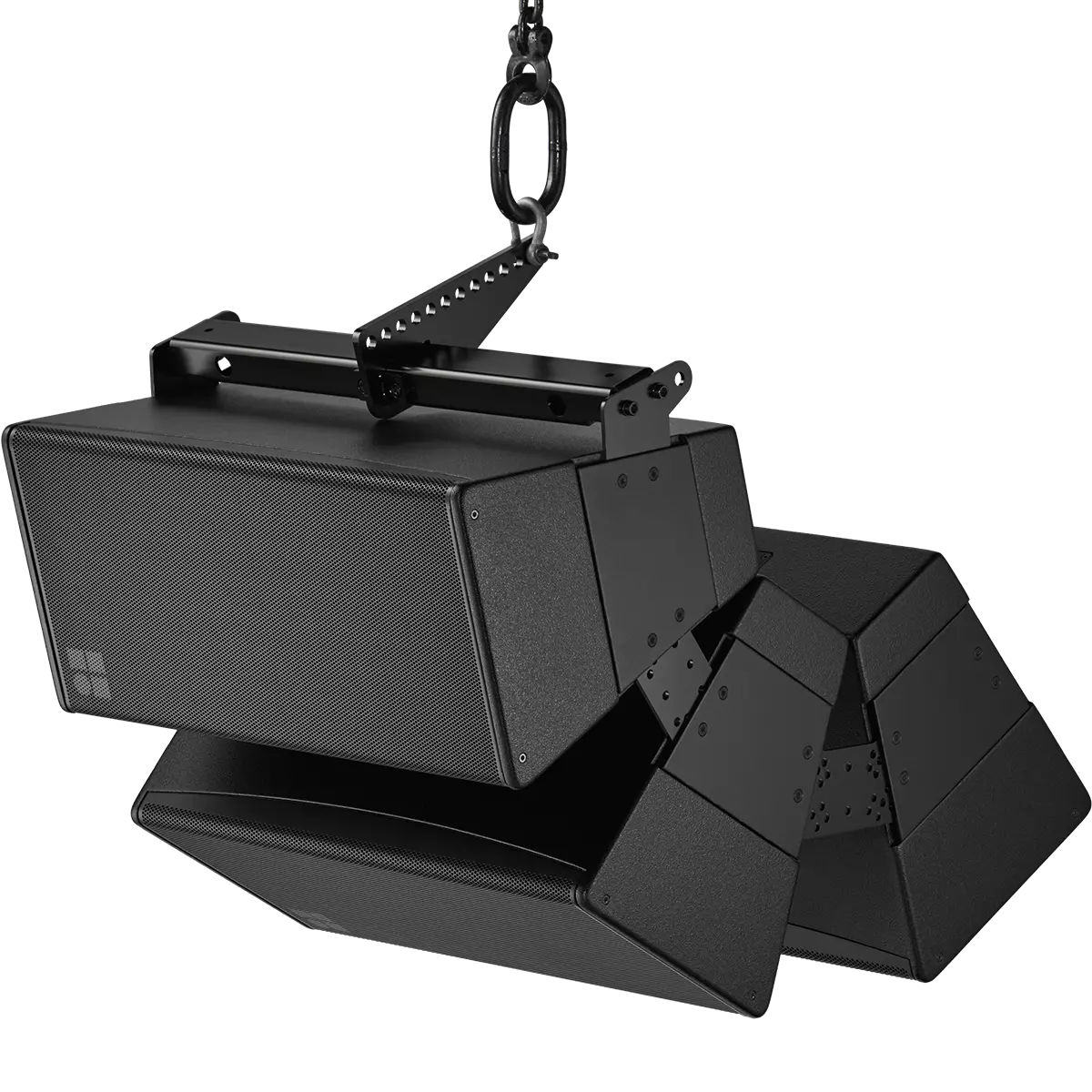

The biaxial 10A/10A-D are high performance 2-way point source loudspeakers housing a single 10” driver in a bass-reflex enclosure with different HF sections. They are lightweight passive designs using neodymium drivers and large horns for accurate pattern control, with rotatable dispersion characteristics of 75° x 50° and 110° x 55° respectively. Both loudspeakers are equipped with a 1.4” exit compression driver. With their frequency response from 60 Hz to 18 kHz both versions can be used as full range systems and can also be supplemented by different subwoofers from either the xS or xA-Series. The 18A or 27A subwoofers can also be integrated into the array.
Installation specific arrayable 2-way point source loudspeaker with wide dispersion
Dispersion 110º x 55º rotatable
SPLmax 130 dB
Weight 14 kg / 31 lb
