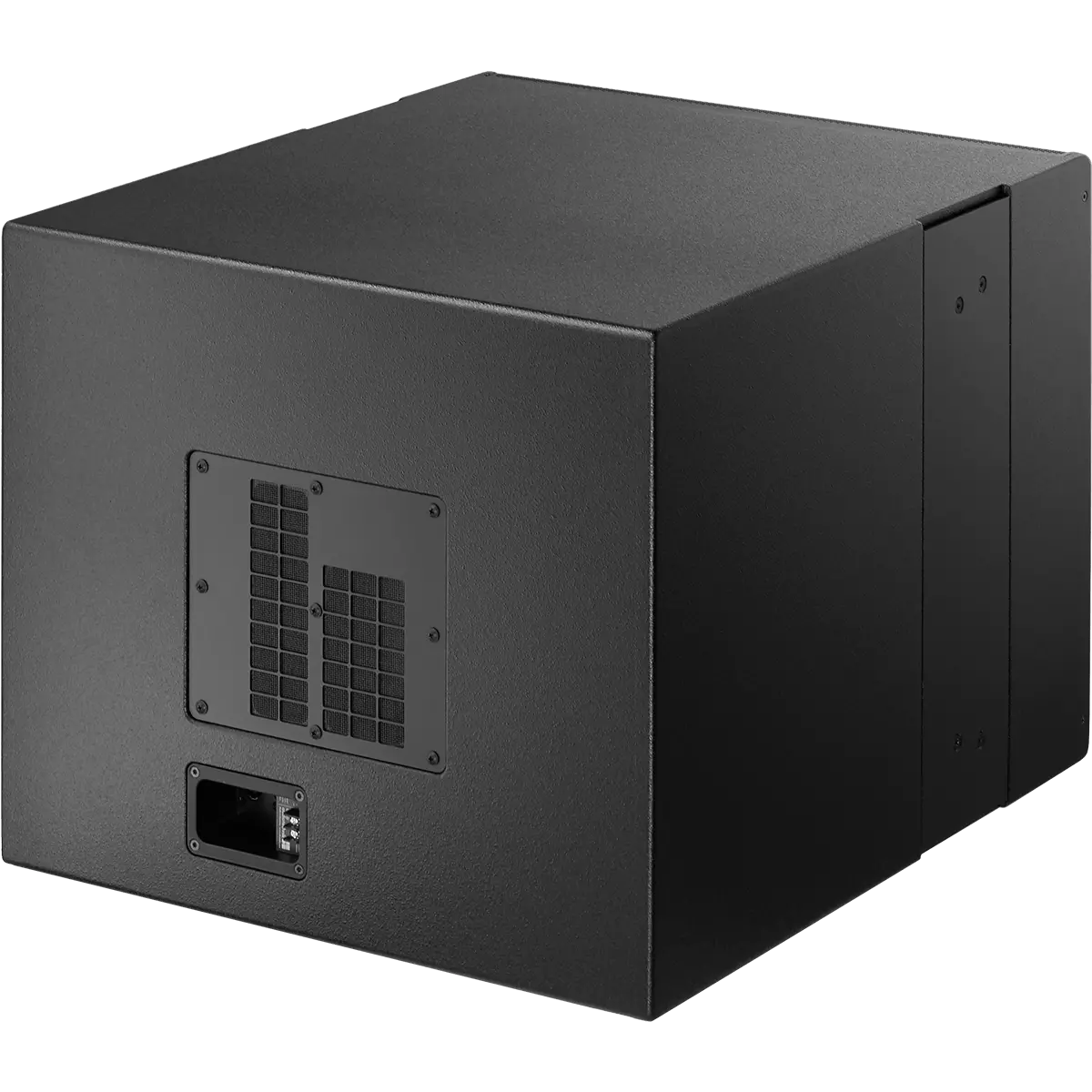

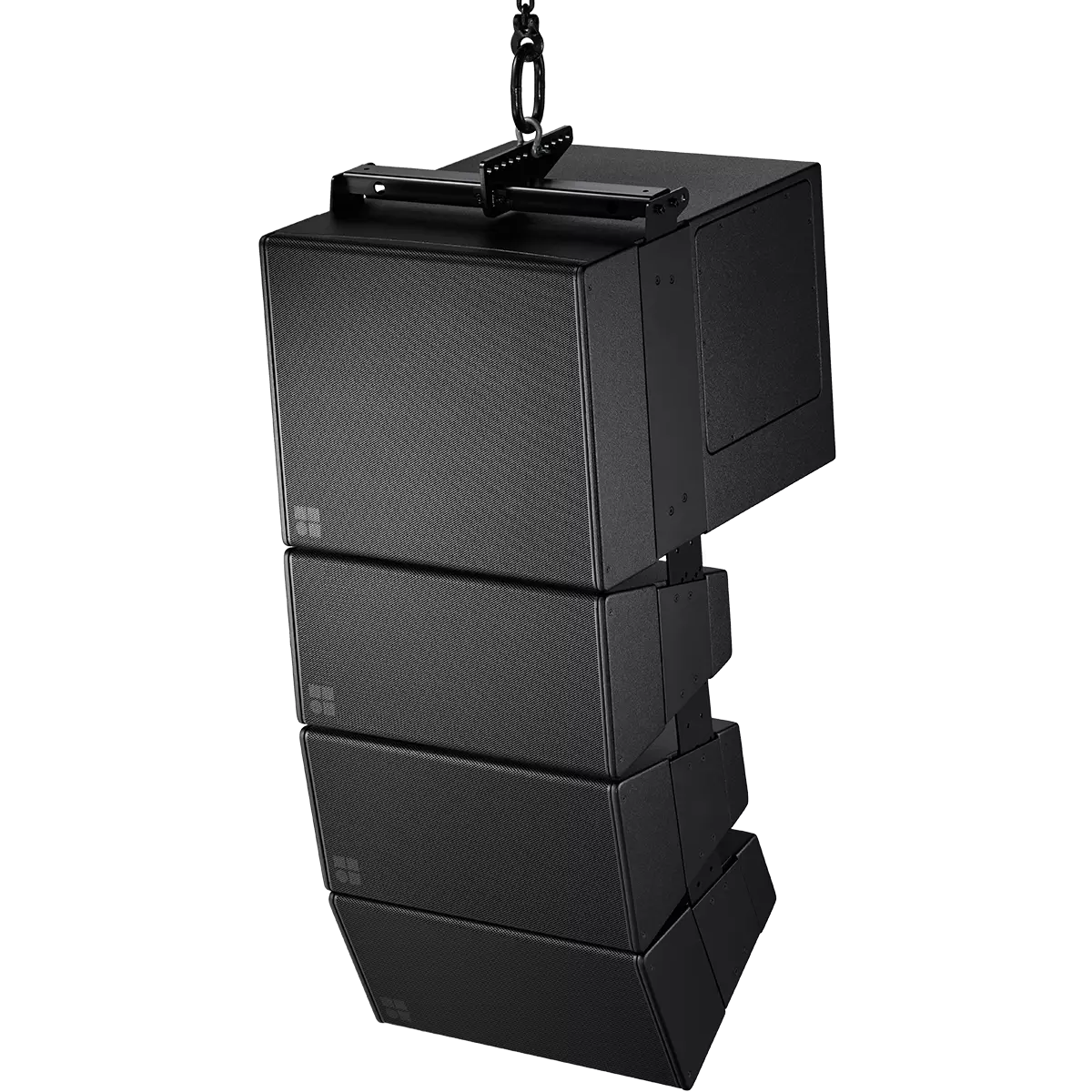

The 27A-SUB is a compact high performance cardioid subwoofer powered by a single amplifier channel and is for use with the xS-Series and xA-Series loudspeakers. The cabinet houses two long excursion neodymium drivers in an integrated cardioid setup: a 15“ driver in a bass-reflex design facing to the front and a 12” driver in a two chamber bandpass design radiating to the rear. The 27A-SUB can be used stand-alone, stacked or as a base for a mixed ground stack. It can also be combined with 10A and 10AL loudspeakers in vertical flown arrays. The enclosure is constructed from marine plywood with an impact resistant black paint finish and is Ball Impact Resistant according to DIN 18032-3 for schools and sports halls. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam.
Installation specific flyable cardioid subwoofer
SPLmax 131 dB
Weight 41 kg / 90 lb
