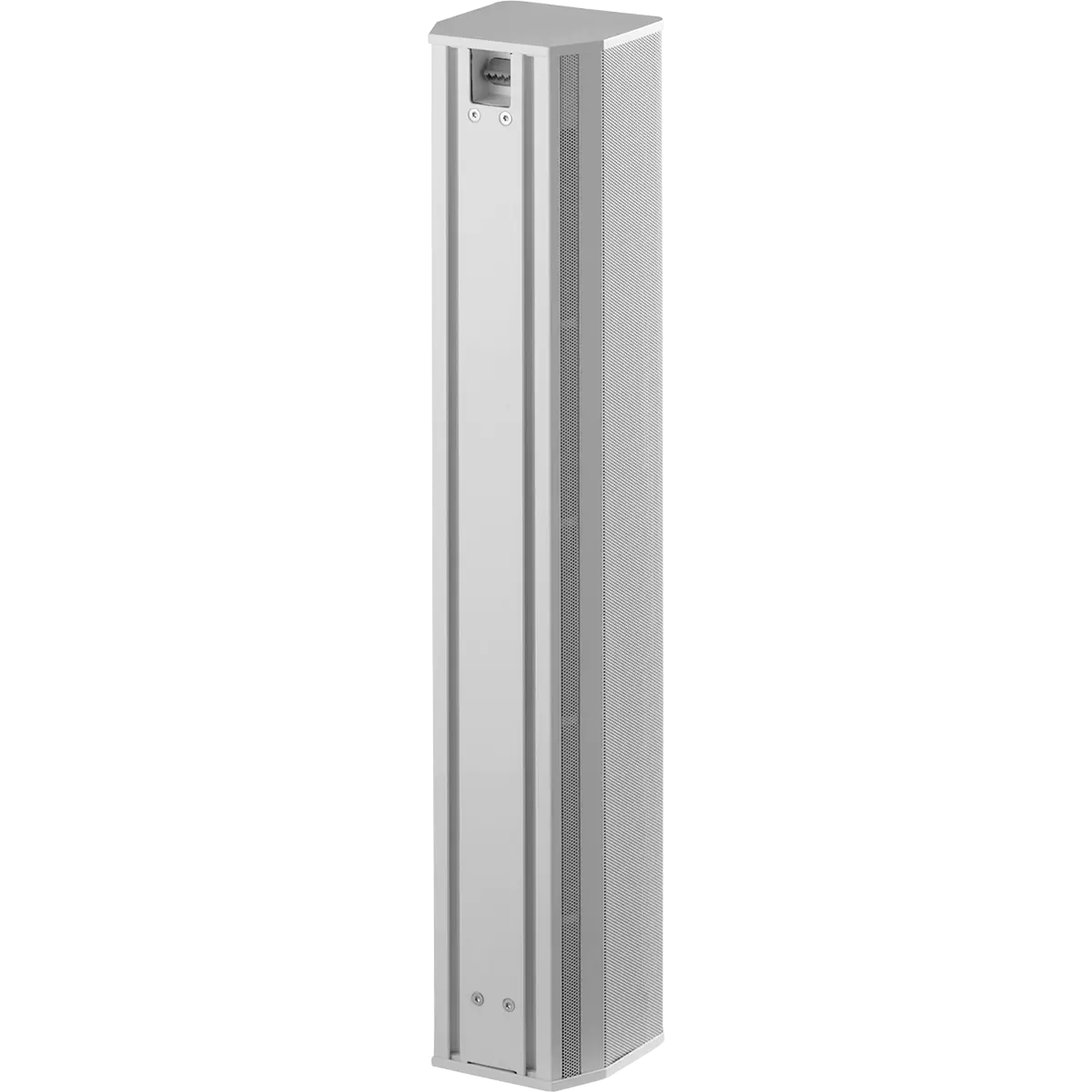

The 16C 2-way passive column loudspeaker is the smallest in the Series housing four 4” neodymium drivers and a 0.75” compression driver mounted on a CD horn. The HF horn has a nominal dispersion of 90° x 40° (h x v). The 4" drivers are arranged in a unique cardioid setup radiating through waveguide elements at the front and damped ports at the rear of the cabinet. This design provides a constant directivity pattern of 90° in the horizontal plane with a broadband attenuation to the rear of approximately 18 dB. A cardioid dispersion pattern produces minimal energy behind the loudspeaker, reducing reflections and resulting in balanced level distribution across the listening area while increasing gain before feedback when working with open microphones.
Installation specific cardioid column loudspeaker
Components 4 x 4"/0.75"
Dispersion 90º x 40º
SPLmax 122 dB
Weight 5 kg / 11 lb
