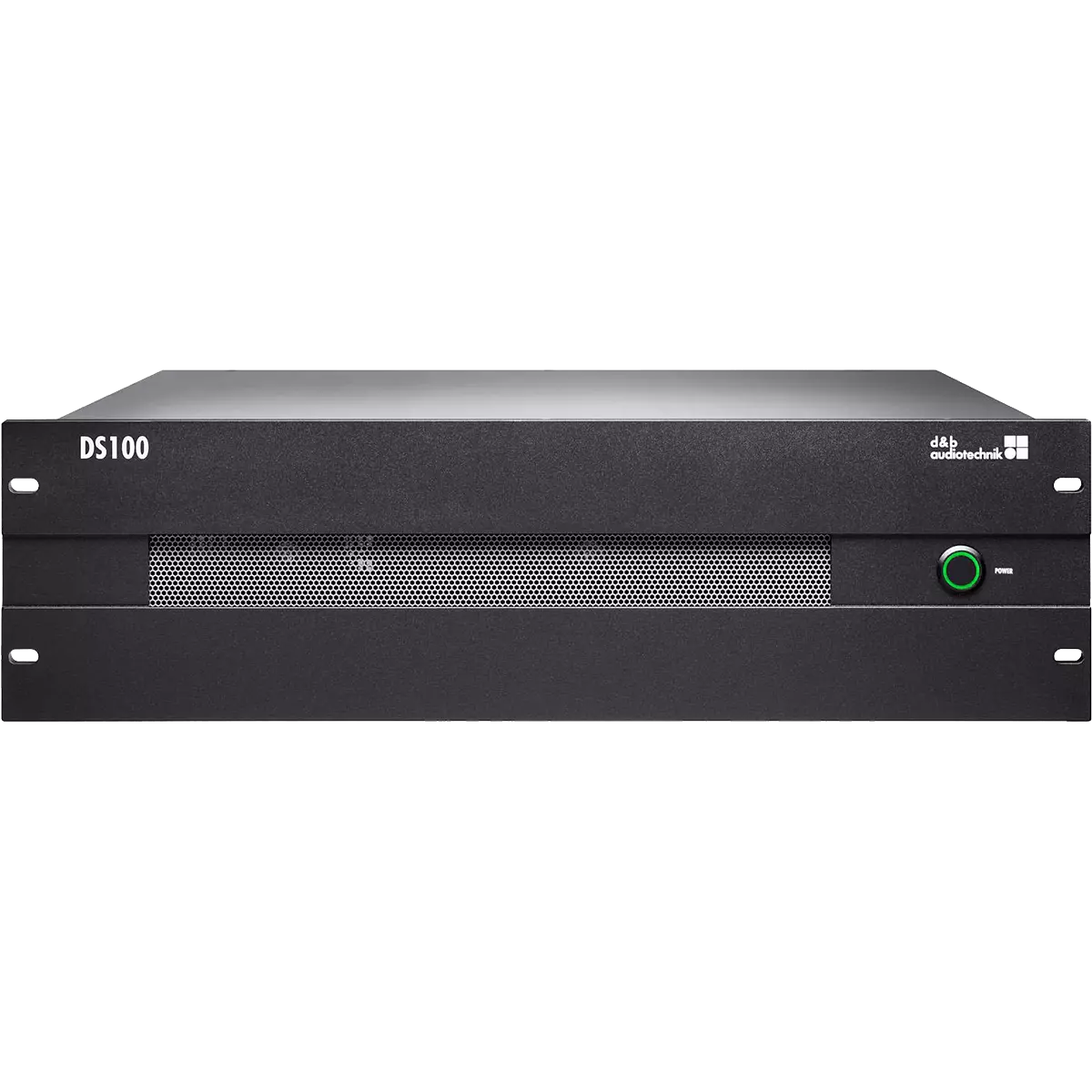

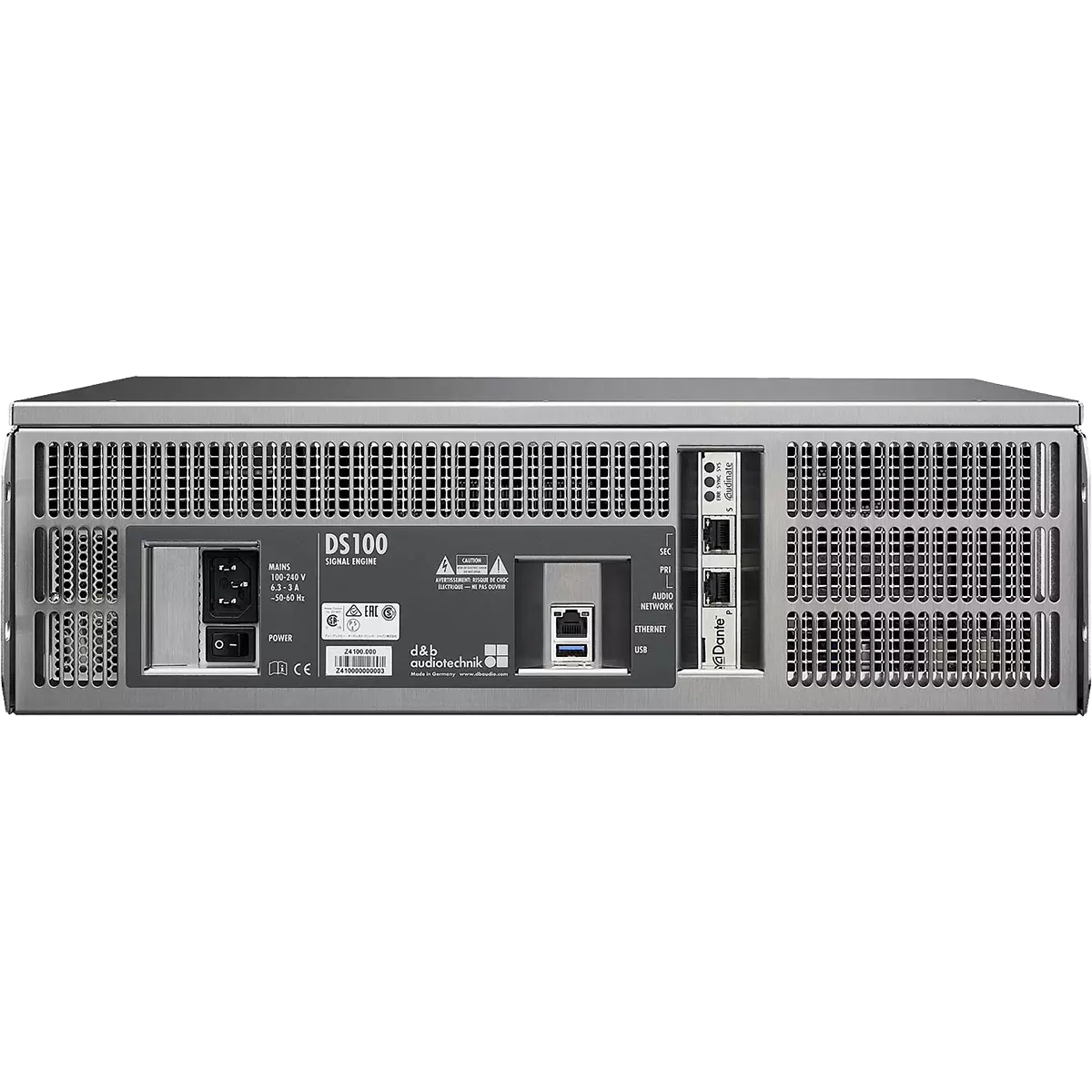

The DS100 Signal Engine is the hardware, a network controlled and Dante enabled DSP platform that provides comprehensive signal management within the familiar d&b Workflow. It comprises a 64x64 matrix, with delay and level control for all crosspoints and extensive signal processing at all inputs and outputs, integrated in the operating concept of the d&b R1 Remote control software, including grouping of parameters in remote views and storing of scenes in snapshots.
Network-driven and Dante-enabled DSP platform
Processing platform for the d&b Soundscape
64 x 64 matrix Level and Delay in every crosspoint
I/O processing EQ, gain, delay, polarity
Latency < 1.5 ms (Dante In to Dante Out)
Optional Soundscape software module En-Scene for object-based signal management
Optional Soundscape room emulation tool En-Space
