PXH64 (passivo)

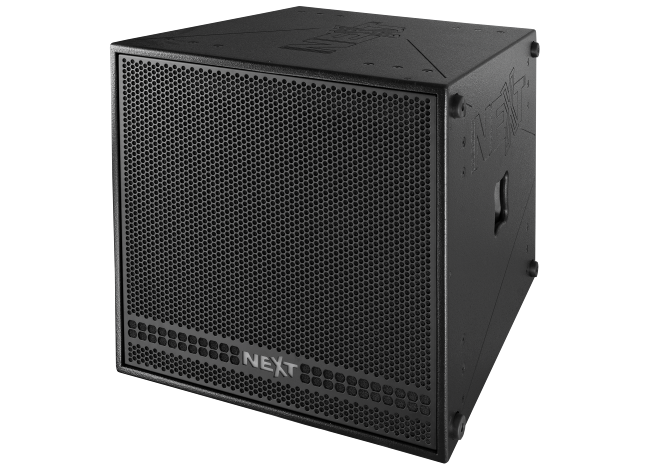

The NEXT PXH64 was engineered to be a powerful medium/longthrow mid/high-frequency cabinet in a coaxial configuration, covering the frequency range from 150 Hz to 19 kHz.
To obtain the highest possible on-axis sound pressure levels and clear and intelligible sound reproduction over long distances, the PXH64 mid/high unit is entirely horn-loaded. The coaxial arrangement of the High Frequency CD horn and the Mid Frequency 12" speaker (also horn-loaded) creates a precise coverage pattern of 60°H x 40°V over a frequency range from 400 Hz–17kHz, ensuring equal sound within the coverage area.
The HF range from 1.150 kHz upwards is reproduced by a Neodymium 1.4” driver with a 3” voice coil and a Constant Q horn, whilst coverage in the mid-range from 150 Hz to 1.25 kHz is provided by a low power compression 12” driver loaded by a midrange horn.

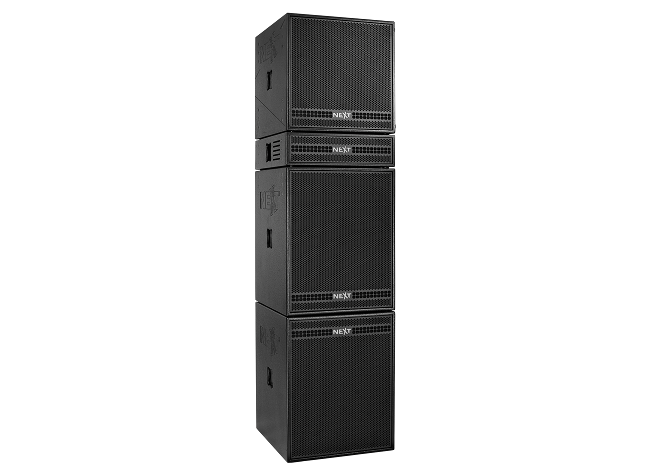

Wider coverage can be achieved using multiple tops, laterally stacked or flown. The PXH64 cabinet must be rotated (90°) to maintain at minimum the comb-filter effects.

Type: Coaxial Horn-Loaded Mid/High Speaker
Freq. Resp. (-6dB): 136Hz - 18000Hz
LF Extension (-10dB): 130Hz
Maximum SPL: 132dB/138dB
Program Power/Peak MF: 800W/1600W
Program/Peak Power HF: 160W/320W
