I8 (passivo) - NAN Audiovisuais

I8 (passivo)

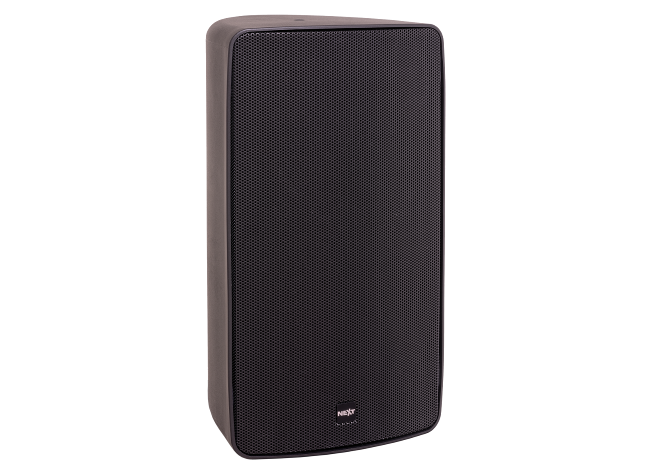

The I Series range comprehends the I4, a 4” LF transducer and a 0.8“ Dome Tweeter, the I6, a 6” LF driver with a 1“ HF Driver, and finally the I8 composed by a 8” LF transducer with a 1“ HF Driver.

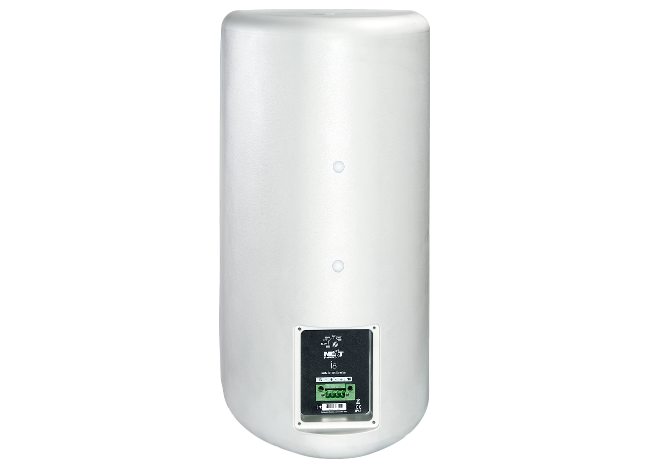

The whole series speakers are housed in a stylish weatherproof plastic cabinet (IP65 - using the back cover) providing an excellent architectural integration, both indoor and outdoor.

This speaker is an ideal solution for PA applications in restaurants, bars, malls or conferences. The very accurate speaker’s coverage allows the people, among the audience, to perceive the sound in the same way.

For even greater versatility, the whole series speakers can be used at 100V or 16?. In high-impedance (100V) operation, a multi tap transformer is available with 3 different taps.

Freq. Resp. (-6dB): 55Hz - 18kHz
Sensitivity (1W@1m): 94dB
Maximum SPL: 116dB / 119dB (Full-Space)
Dispersion (HxV): 100º x 70º
100V Transformer Taps: 37.5W, 75W, 150W
