LAs15A (ativo)

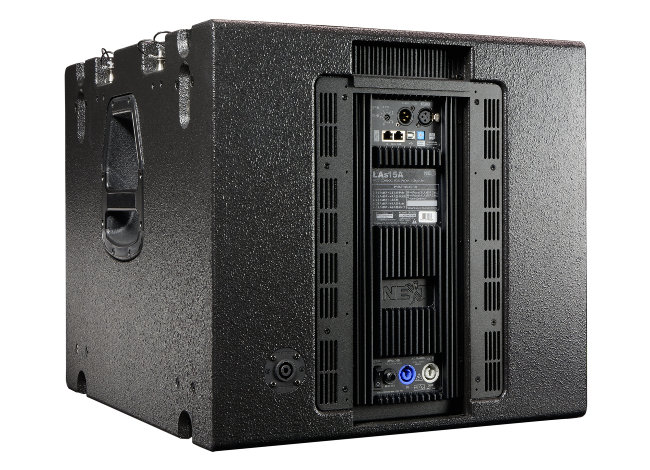

The LAs15A is the subwoofer model that completes the range of LA26 Line Array System. The subwoofer houses a long excursion B&C 15" driver powered by the DPA4000 (power module with DSP). This unit is capable of delivering up to 2000Wrms with a magnificent precision and punch at incredible SPL, combining optimized acoustic, electro-acoustic and electronic solutions to maximized efficiency.


The heart of the LAs15A, is a powerful, light weight, highly efficient Class D power amplifier module, with PFC switch mode power supply. The DPA4000 delivers an impressive sonic punch with perfectly balanced, rich and transparent, sound at any volume. The PC controlled DSP 24bit/96kHz with A/D-D/A low noise converters, provides 8 selectable Presets (7 factory defined and 1 User Defined) that can be accessed by an easy selector, located on the front module panel or real time edited with a PC, using “SOUNDWARE 4.0.1” software. This allows to easily customize the sound program, for various applications or different venues. With Soundware software is possible to edit the 7 pre-loaded Presets and store it on the user defined memory location. Editable parameters are: 10 PEQ/LSF/HSF, Sub Delay, Satellite Delay, System Delay, HPF, LPF, Level, Polarity, Mute.

LF Extension (-10dB): 38Hz
Subwoofer (internal) (RMS/Program/Peak): 2000W/2820W/4000W
Subwoofer Output (external) (RMS/Program/Peak): 2000W/2820W/4000W (4º)
System Presets: 7 Factory and 1 User, selectable via software or rear panel switch
AC Operating Voltage: 100V - 240V 50/60Hz
