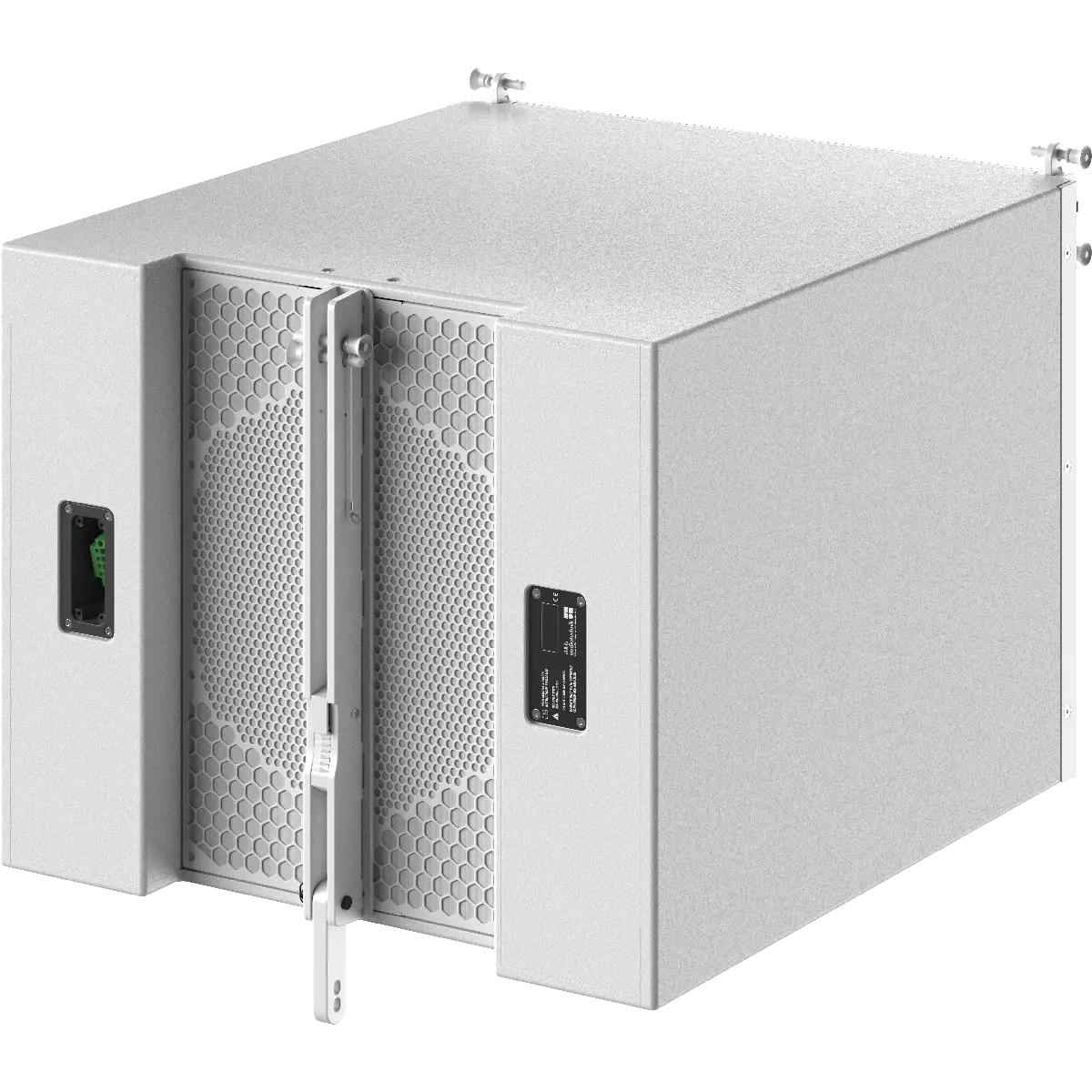

The XSLi-SUB is a cardioid subwoofer for the XSLi System. It can be used to supplement XSLi8 and XSLi12 loudspeakers, either flown (XSLi-SUB) or ground stacked (XSLi-GSUB).
When the XSLi-SUB Mounting frame is used, XSLi-SUB cabinets can be flown as pure SUB columns or in mixed arrays above XSLi-TOP cabinets using the additional XSLi-SUB Mounting adapter. The XSLi-SUB is an actively driven, 2-way bass-reflex design housing two long excursion neodymium drivers; an 18” driver faces to the front of the cabinet, and a 12” driver radiates to the rear. The front and rear facing drivers operate in independent bass-reflex chambers and are driven from separate amplifier channels. Two XSLi-SUBs can be linked to a pair of D40 amplifier channels.
Installation specific small to medium format flyable cardioid subwoofer
- Components 1 x 18" Front/ 1x 12" Rear driver
- Dispersion Cardioid
- SPLmax 139 dB
- Weight 82 kg / 181 lb
