ETC ColorSource Fresnel V
- ETC
- Engines/Corpos de Projetor

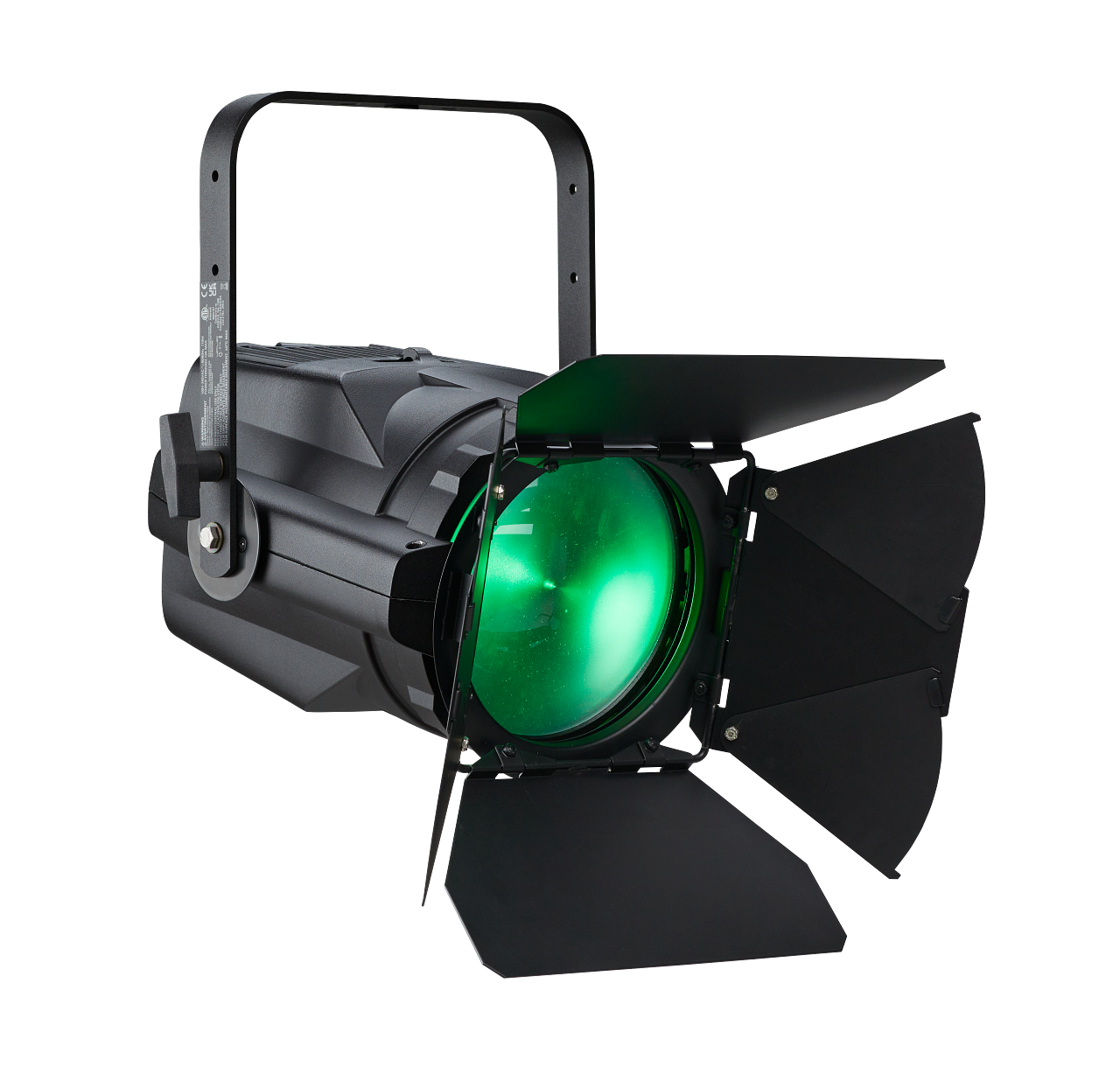

An LED luminaire crafted by lighting experts with a proven history of quality fixtures, ColorSource Fresnel V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Fresnel V provides soft pastels and bold saturated colors from a single fixture. Control the motorized 13°–44° zoom using DMX or manually from the rear of the fixture. ColorSource Fresnel V also features wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, making it the ultimate in affordable wash light technology.
FEATURES
• Five-color array (red, green, blue, indigo, and lime)
• Motorized 13–44 degree zoom with DMX and local control
• Simple user interface with seven-segment display
• powerCON® TRUE1® TOP connector
• DMX/RDM in and thru (5-pin XLR)
• Multiverse wireless DMX/RDM
• NFC (near field communication) configuration
• LED droop compensation
• Optically calibrated
• Tour-ready, aluminum housing
APPLICATIONS
• Theatres and performance spaces
• Houses of worship
• Universities and schools
• Hospitality
• Retail
• Exhibition centers
• Meeting rooms
• Clubs
• Cafetoriums
Source
LED details: 44 Lumileds LUXEON® C LEDs
Max lumens: 5330
Lumens per watt: 36
L70 rating (hours to 70% output): 54,000 hours
Color
Colors used: Red, Green, Blue, Indigo , Lime
Color temperature range: Color mixing
Calibrated array: Yes
Red shift: No
Optical
Beam angle range: 13°–44°
Gate size: N/A
Aperture size: 190 mm (7.48 in)
Pattern projection: No
Pattern size: N/A
Camera flicker control/Hz rang: 5,000 Hz (default) and 25,000 Hz (via RDM
Control
Input method: 5-Pin XLR, Multiverse wireless (optional), and NFC
Protocols: DMX-512, RDM, City Theatrical Multiverse (optional), NFC
Modes (footprint): 4 modes, see page 6
RDM configuration: Yes
UI type: Seven-segment display, three-button interface, Focus encoder
Local control: Yes
Onboard presets: Yes (12)
Onboard sequences: Yes (5)
Onboard effects: No
FixtureLink: Yes
Notes: 15-bit virtual dimming engine
Electrical
Voltage range: 100–240 VAC 50/60 Hz
Input method: powerCON TRUE1 TOP power in and thru
Inrush (first half-cycle): 120 V: 36 A; 240 V: 57 A
Wattage (typical): 120 V: 148.4 W; 230 V: 147.0 W
Current draw: 120 V: 1.28 A; 230 V: 0.70 A
Thermal
Ambient operating temp: 0°–40° C (32°–104° F)
Fan (controllable): Yes (yes)
Droop compensation: Yes
dB range: TBD
BTUs/hour (120 V): 508
Physical
Materials: Cast and extruded aluminum

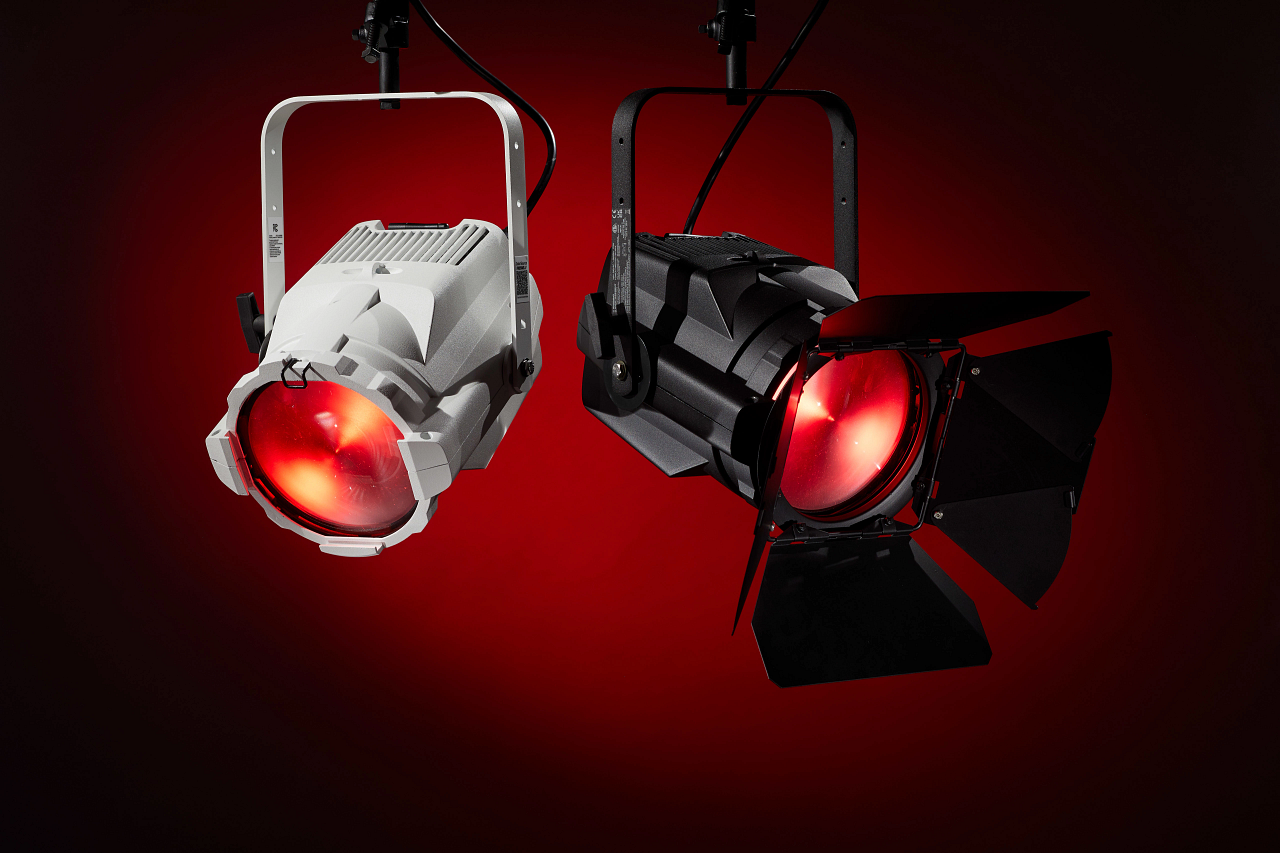

Color options: Black, white, silver, or custom color
Mounting options: Yoke
IP rating: IP20
Weight: 6.24 kg (13.75 lb)
Included accessories: Yoke, power cable
