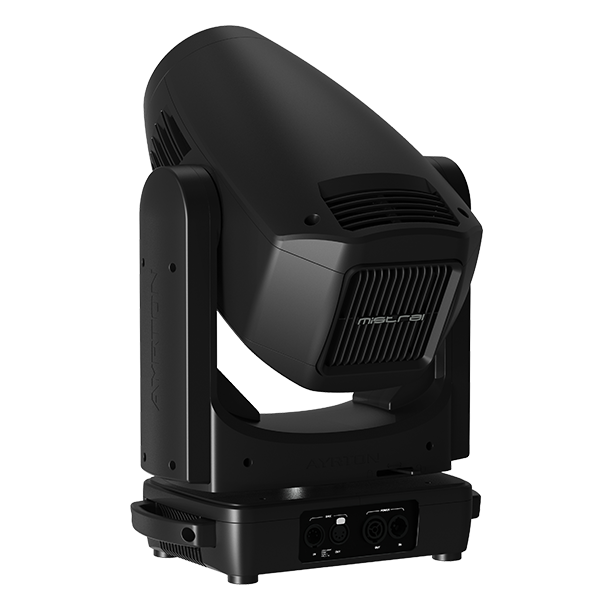

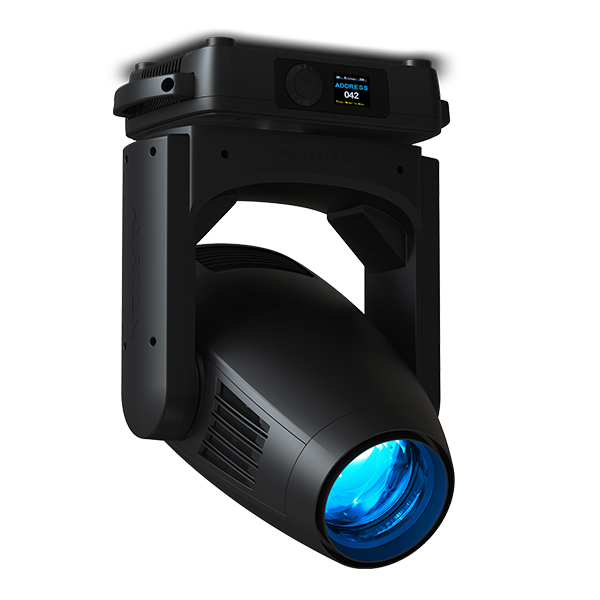

Ayrton has once again pushed the limits with Mistral
A versatile, new fully equipped 300 W spot luminaire in the same ultra-compact format as MERAK. Its new 13-lens proprietary optical system delivers a 8:1 zoom ratio with a zoom range of 6.7° to 53°. The optics, equipped with a 119 mm frontal lens, can achieve an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle. MISTRAL comes in two versions, each to meet the specific requirements of lighting professionals. MISTRAL S is designed for scenic applications. It is equipped with a new LED module, delivering powerful metallic white light with record-breaking output of 18,000 lumens and a colour temperature of 7000 K. Devised specifically for applications that require perfect colour reproduction, MISTRAL TC is equipped with an entirely new LED module using a monochromatic light source with a native colour rendering index greater than 90, extremely high TM30 readings and a colour temperature of 6000 K.
Feature-rich from the factory
MISTRAL includes a CMY colour mixing system combined with a variable CTO and a seven-position complementary colour wheel for producing an infinite palette of vivid pastels and saturated colours. The effects section includes 16 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with nine positions. Its continuous dynamic effects wheel can be used in combination with the two gobo wheels to create unique graphical effects. MISTRAL also features a 15-blade iris diaphragm, a five-facet rotating prism, and a soft-edge frost filter as standard equipment. MISTRAL has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective Silent ventilation mode, designed for studio and theatre applications.
OPTICS
13 elements 8:1 zoom high-resolution optic system
Beam aperture: 6.7° to 53°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
119 mm front lens for ultimate performance
LIGHT SOURCE
Mistral S
26,000 lumens 8000 K white light engine
Total luminaire output: up to 18,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Mistral TC
21,000 lumens 7000 K white light engine
Total luminaire output: up to 14,000 lumens
Colour temperature output: 6500 K
CRI: greater than 90
Mistral S & Mistral TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
Pan and tilt with automatic repositioning
Moving head range: 540° (pan), 263° (tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with seven saturated colour filters
GOBOS
Indexable rotating gobo wheel with 7 high precision glass gobos plus open position
Adjustable speed rotating gobo in both directions
Fixed gobo wheel with 9 high precision glass gobos plus open position
Gobo diameter: 25.5 mm
Image diameter: 20.0 mm
Gobo thickness: 1.1 mm
IRIS DIAPHRAGM
Fast iris diaphragme with adjustable dynamic effects
Iris range : 15 to 100% open
SIZE
Product: 365 x 591 x 212 mm (l x h x d)
Flight-case Foam : 450 x 620 x 280 mm (l x h x d)
WEIGHT
Product: 18.9 kg
