Diablo
- Ayrton
- 3 Series
3 Series - Source: 300 W - 7000 K - Diablo S
Lumens: 19,000 Diablo S
Native CRI: greater than 90 - Diablo TC
Beam Aperture: 7° to 53°
Front Lens: 119 mm

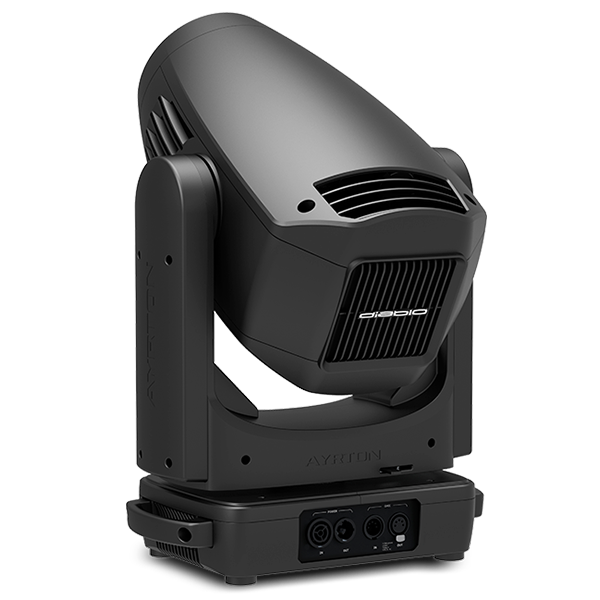

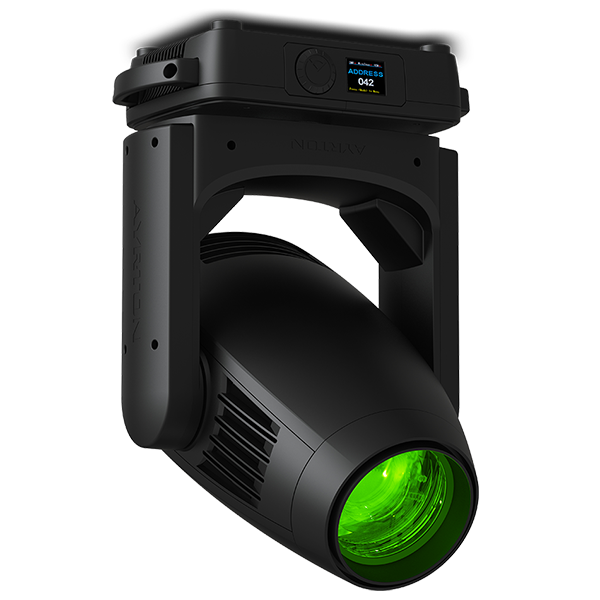

Ayrton’s latest innovation, Diablo, is a versatile, feature-rich 300 W profile luminaire based on the ultra-compact Mistral format.
The company has taken on the ambitious challenge of making Diablo the smallest, lightest and most efficient luminaire of its category. With a record output of 19,000 lumens and a total weight of 21.8 kg, DIABLO is a powerhouse of technology that will tempt the most demanding lighting designers. To achieve its objective, Ayrton has miniaturised the framing system while maximizing the performance level. As in other profile luminaires of the product line, the framing section allows accurate positioning of its four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. A new ultra-compact high-output 550 W power supply feeds eight additional motors in the framing system, fitting into the original MISTRAL format. DIABLO borrows the same 13-element proprietary optical system delivering an 7.5:1 zoom ratio with a zoom range of 7° to 53°. The 119 mm frontal lens can produce an extremely uniform flat beam that can render images perfectly in all conditions and at any beam angle.
Diablo is available in two versions: S and TC. Diablo S, specially designed for stage applications, is equipped with a monochromatic LED light source that can generate extremely high output and metallic white light calibrated at 7000 K.
DIABLO-TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90 and high TM30 readings, at a colour temperature of 6000 K. Fully equipped at the factory, DIABLO includes a CMY colour mixing system combined with a progressive CTO and a wheel with seven complementary colours that produces an infinite palette of bright pastels and saturated colours. The effects section includes a wheel with seven interchangeable HD glass gobos, a continuous dynamic effects wheel, a 15-blade iris diaphragm, a heavy frost filter and a five-facet circular rotating prism. DIABLO has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, perfect for stage and studio applications.
OPTICS
13-element 7.5:1 zoom high-resolution optic system
Beam aperture: 7° to 53°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
119 mm frontal lens for greater performance
LIGHT SOURCE
Diablo S
26,500 lumens 8000 K white-light engine
Total luminaire output: up to 19,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Diablo TC
20,500 lumens 7000 K white-light engine
Total luminaire output: up to 14,000 lumens
Colour temperature output: 6500 K
CRI: greater than 90
Diablo S & Diablo TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated with either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt with automatic repositioning
Moving-head range: 540° (pan), 263° (tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with seven complementary colours
GOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 25.5 mm
Image diameter: 20.0 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable shutter blades
Rotation of the framing system module: +/- 45°
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
SIZE
Product: 365 x 591 x 212 mm (l x h x d)
Flight-case foam: 430 x 660 x 280 mm (l x h x d)
WEIGHT
Product: 22.0 kg
