Cobra
- Ayrton
- 3 Series
3 Series - Source: 260 W - 6500 K
Lux at 20 m: 386,000
Native CRI: greater than 65
Zoom aperture: 0.6° to 23°
Frontal Lens: 170 mm

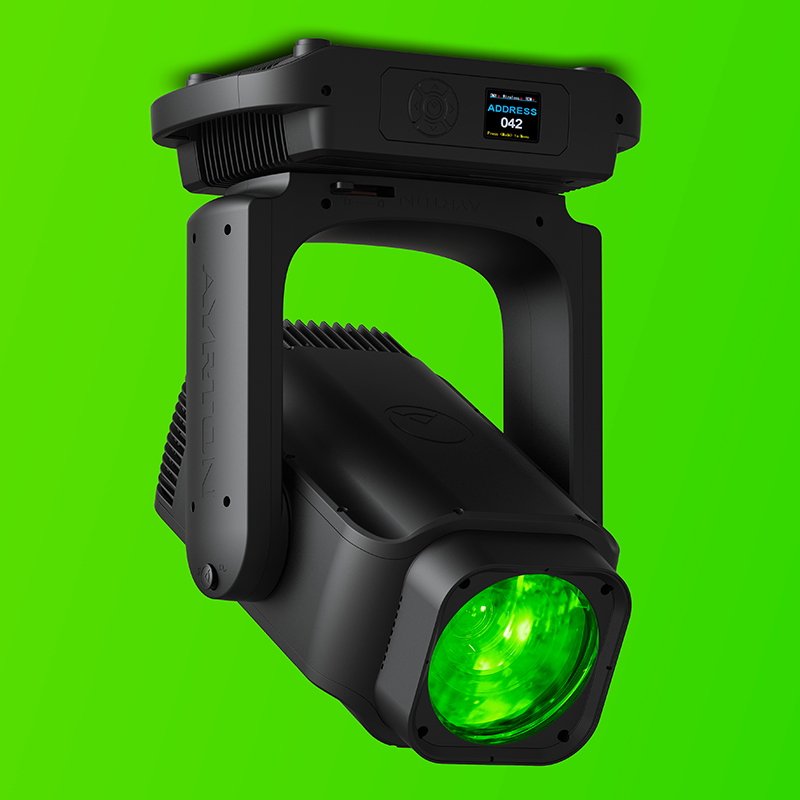

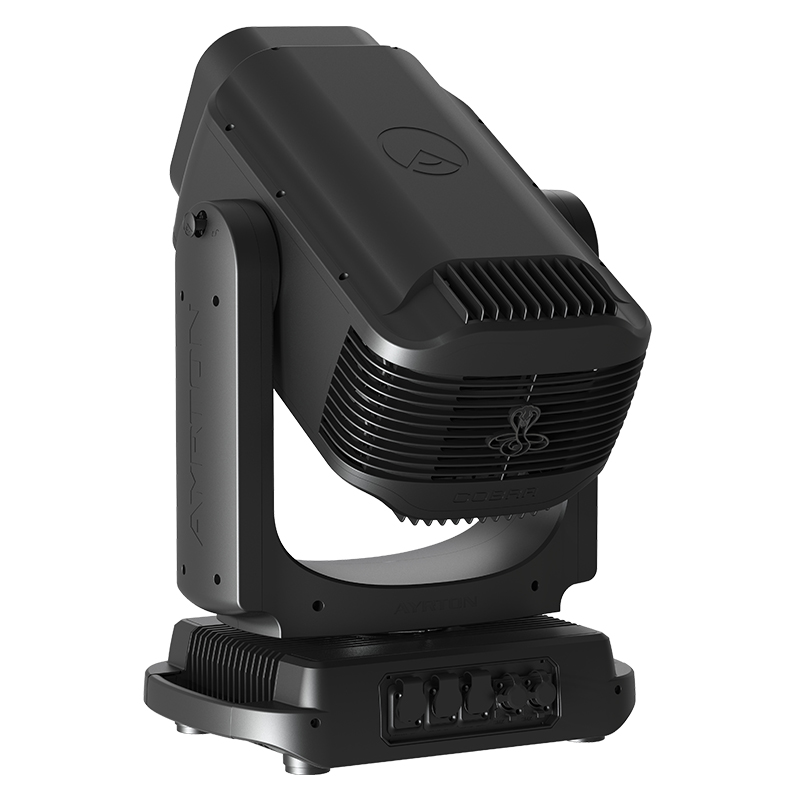

COBRA is the first factory standard AYRTON phosphor laser source luminaire based on the concept of DREAMSPOT 18K, presented at Prolight+Sound 2016.
Several years of development have gone into designing and finalising this exceptional luminaire, which offers a next generation speckle-free laser source, designed for rendering a D65 white point that allows perfect colour reproduction. COBRA pushes all the limits when it comes to beam definition, with native contrast never before achieved by a digital light source, an incredible beam angle of 0.6°, and an extreme range of focus which permits the beam shape to be adjusted according to the operating distance XT-Focus™. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an unprecedented 38x zoom ratio and a zoom range of 0.6° to 23°. COBRA adopts a particularly minimalist style, extremely well-balanced due to the luminaire’s simplified waterproofing EasyProtect-65™, and the continuous rotation of the pan and tilt movement, multiplying the possibilities for creating complex effects I.R.S.™ and making this luminaire a universal tool capable of meeting any challenge in all conditions.
COBRA is provided with a highly innovative colour section including a CMY mixing system and a multi-position instant access wheel equipped with six corrective filters, 21 complementary colour filters, and a variable CTO on two concentric circles 2D-ColorWheel™.
COBRA has an unrivalled graphics capability, offering a wide choice of 92 fixed and rotating metal gobos distributed on two wheels specifically created to sculpt light in “beam” mode and incorporates an animation section on the gobo wheel 2D-GoboWheel™. These gobos can be blended with two sections of four individually combinable rotating prisms allowing you to produce a multitude of volumetric lighting effects. A light and heavy frost filter complete COBRA’s graphic tool palette. Well-suited for use indoors as well as outdoors, COBRA was developed as a unique versatile luminaire that incorporates all waterproof features, while remaining easily accessible and limited in weight. Able to operate in the most extreme situations, it has a sunlight protection system SunProtect-65™ and an integrated heating system that safeguards against temperatures below -10° C (14° F) ColdProtect-65™. But above all, COBRA is the only luminaire on the market capable of illuminating an object several kilometres away… COBRA is simply unique.
OPTICS
13-element 38:1 zoom high-resolution optic system
Beam aperture: 0.6° to 23°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
170 mm frontal lens for greater performance
LIGHT SOURCE
Luminous flux: 386,000 lux at 20 m
Colour temperature output: 6500 K
CRI: greater than 65
Rated life (L70): up to 12,000 hours
Speckle-free source
MOVEMENT
Highly accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
COLOURS
Sophisticated colour mix system providing CMY color mixing
Fixed colour wheel with progressive CTO, 6 colour temperature correction and 21 complementary colour filters
GOBOS
One indexable rotating gobo wheels with 12 metal gobos, plus open position
Adjustable-speed rotating gobo in both directions
Fixed multiposition gobo wheel with instant access to 80 metal gobos
Gobo diameter: 6.9 mm
Image diameter: 4.0 mm
FROST
2 frost filters: one light, one heavy
EFFECTS
Monochromatic graphical animation effects wheel with continuous rotation in both directions
2 set of 4 combinable rotating and indexable prisms
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
Strobe effect, with speed adjustment from 1 to 25 flashes per second
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 480 W maximum
SIZE
Product: 415 x 660 x 280 mm (l x h x d)
Flight-case foam: 485 x 565 x 560 mm (l x h x d)
WEIGHT
Product: 33 kg
