Ghibli
- Ayrton
- 6 Series
6 Series - Source: 600 W - 7000 K - Ghibli S
Lumens: 23,000 - Ghibli S
Native CRI: greater than 90 - Ghibli TC
Beam Aperture: 7° to 56°
Front Lens: 137 mm

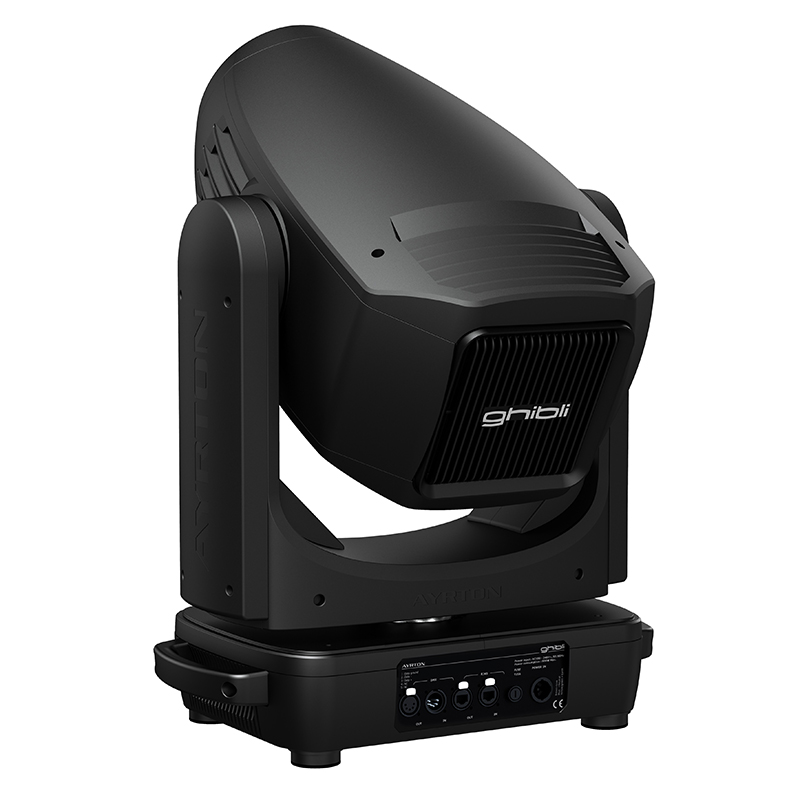

Ghibli is Ayrton’s first LED spot luminaire that is factory-equipped with a framing system designed to offer lighting designers unlimited creative possibilities without any compromise.
Fitted with a LED module using a high-output, low-etendue monochromatic light source calibrated at 7000 K, GHIBLI delivers light output of 23,000 lumens in a highly compact format. The proprietary optical system, equipped with a 137 mm frontal lens, has 13 high-quality lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 56°. The optics produce an extremely uniform flat beam with no hot spot. The selection of gobos and colours was made in collaboration with lighting designers to meet the needs of the entertainment industry.
Ayrton has concentrated its expertise into one, single fixture Ghibli to offer you a maximum of possibilities. Think versatile. Think Ghibli.
Standard features on GHIBLI include a CMY colour mixing system combined with a variable CTO and a six-position complementary colour wheel to produce in an infinite palette of pastels and saturated colours. The luminaire is fitted with an entirely new filter for optimising the colour rendering index. The framing system allows each frame to be positioned with precision on a 100% surface area in all positions. The effects section includes two wheels with interchangeable HD glass gobos: one with seven rotating and the other with eight fixed gobos; a continuous dynamic effects wheel; an iris diaphragm; two frost filters and a five-facet rotating prism. GHIBLI is equipped with a new, highly effective phase-change liquid cooling system using a heat pipe.
OPTICS
13 elements 8:1 zoom high-resolution optic system
Beam aperture: 7° to 56°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
137 mm frontal lens for greater performance
LIGHT SOURCE
GHIBLI S
36,000 lumens 8000 K white light engine
Total luminaire output: up to 23,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
GHIBLI TC
26,000 lumens 6500 K white light engine
Total luminaire output: up to 17,000 lumens
Colour temperature output: 5900 K
CRI: greater than 90
GHIBLI S & GHIBLI TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt with automatic repositioning
Moving-head range: 540° (pan), 270° (tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with six complementary colours and High CRI filter
GOBOS
Indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Fixed gobo wheel with 8 high-precision glass gobos, plus open position
Gobo diameter: 30.0 mm
Image diameter: 22.0 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 45°
Power Supply
Electronic supply with active PFC
100 to 240 Volts – 50/60 Hz
Power: 800 W maximum
SIZE
Product: 468 x 734 x 280 mm (l x h x d)
Flight-case foam: 655 x 590 x 555 mm (l x h x d)
WEIGHT
Product: 35.6 kg
