Eurus Profile
- Ayrton
- 6 Series
6 Series - Source: 650 W - 6700 K - Eurus S
Lumens: 36,000 - Eurus S
Native CRI: greater than 90 - Eurus TC
Beam Aperture: 4.5° to 50°
Front Lens: 170 mm

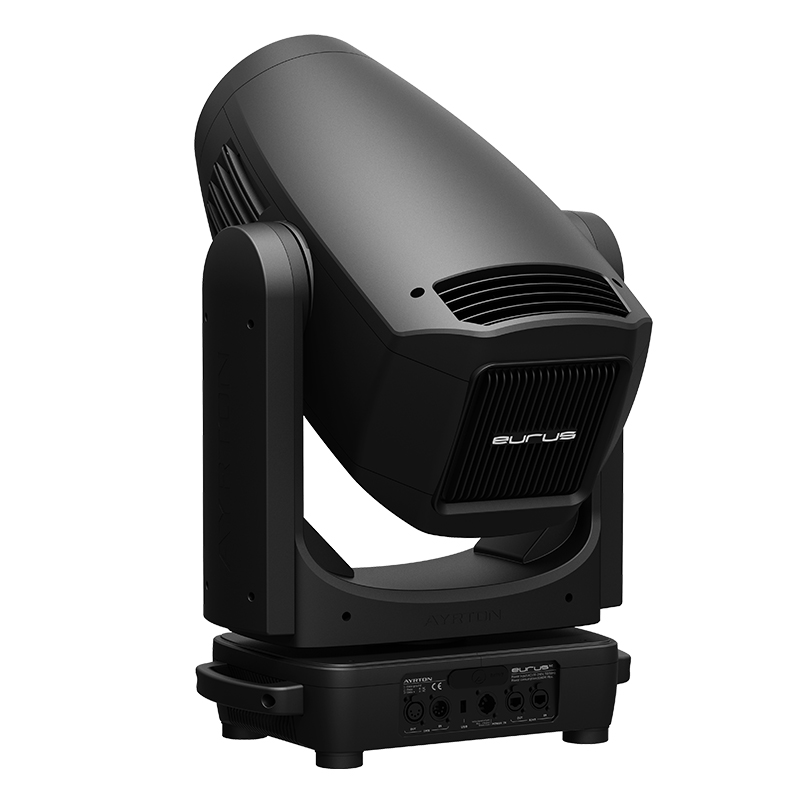

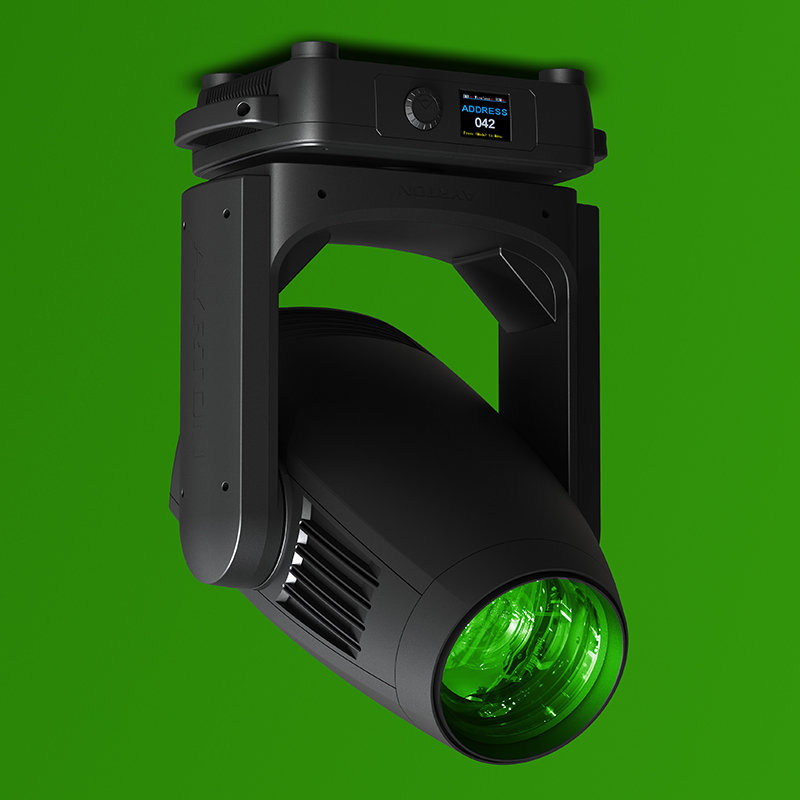

A new addition to the 6 Series, EURUS is the first multi-function profile luminaire launched under the new SLIM-21TM programme for miniaturising fixtures and reducing their weight.
AYRTON has developed a new high-efficiency power supply in an entirely new die-cast aluminium base that takes up 33% less volume than in other luminaires of the same category. A lighter internal structure and all-new miniaturised stepper motors add to the final result. This new luminaire boasts optics specifically developed for applications requiring perfect image reproduction and significantly reduced distortion caused by the shutter blades in wide zoom. Fitted with a 170 mm frontal lens, the proprietary optical system uses 13 lenses, producing an 11:1 zoom ratio and a zoom range of 4.5° to 50°. EURUS is available in two versions: S and TC. EURUS S, specially designed for stage applications, is equipped with a new 650 W ultra-compact monochromatic LED emitter calibrated at 8200 K, it can deliver metallic white light with an output of 36,000 lumens at a colour temperature of 6700 K. EURUS TC is geared for applications that require perfect colour rendition, using a monochromatic light source with a native colour rendering index greater than 90, at a colour temperature of 6000 K.
Feature-packed from the factory, EURUS includes a subtractive CMY colour mixing system combined with a variable CTO and a seven-position complementary colour wheel for displaying an infinite palette of vivid pastels and saturated colours.
In addition, the colour section contains two additional filters for optimising the colour rendering index and TM30 readings. The framing section allows accurate positioning of each shutter blade on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes one continuous dynamic effect-wheel, 15-blade iris diaphragm, two frost filters (one for light and one for heavy diffusion), two combinable rotating prisms (one circular with 5 facets and one linear with 4 facets). EURUS has a highly efficient phase-change liquid cooling system using a heat pipe that includes a particularly effective ultra-silent ventilation mode, designed for stage and studio applications.
OPTICS
13 elements 11:1 zoom high-resolution optic system
Beam aperture: 4.5° to 50°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
170 mm frontal lens for greater performance
LIGHT SOURCE
EURUS PROFILE S:
45,600 lumens 8200 K white light engine
Total luminaire output: up to 36,000 lumens
Colour temperature output: 6700 K
CRI: greater than 70
EURUS PROFILE TC:
32,000 lumens 7000 K white light engine
Total luminaire output: up to 25,000 lumens
Colour temperature output: 6200 K
CRI: greater than 90
EURUS PROFILE S & EURUS PROFILE TC:
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving head range: 540° (pan), 266° (tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with seven complementary colours
2 CRI improvement filters
GOBOS
Indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Fixed gobo wheel with 11 high-precision glass gobos, plus open position
Rotating Gobo diameter: 27.0 mm
Image diameter: 22.0 mm
Gobo thickness: 1.1 mm
Static Gobo diameter: See User Manual
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 60°
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
POWER SUPPLY
Electronic supply with active PFC
100 to 240 Volts – 50/60Hz
Power: 1,000 W maximum
SIZE
Product: 445 x 743 x 273 mm (l x h x d)
Flight-case foam: 655 x 590 x 555 mm (l x h x d)
WEIGHT
Product: 32.9 kg
