Bora
- Ayrton
- 6 Series
7 Series - Source: 750 W - 6800 K - Bora S
Lumens: 40,000 - Bora S
Native CRI: greater than 90 - Bora TC
Beam Aperture: 8° to 64°
Front Lens: 178 mm

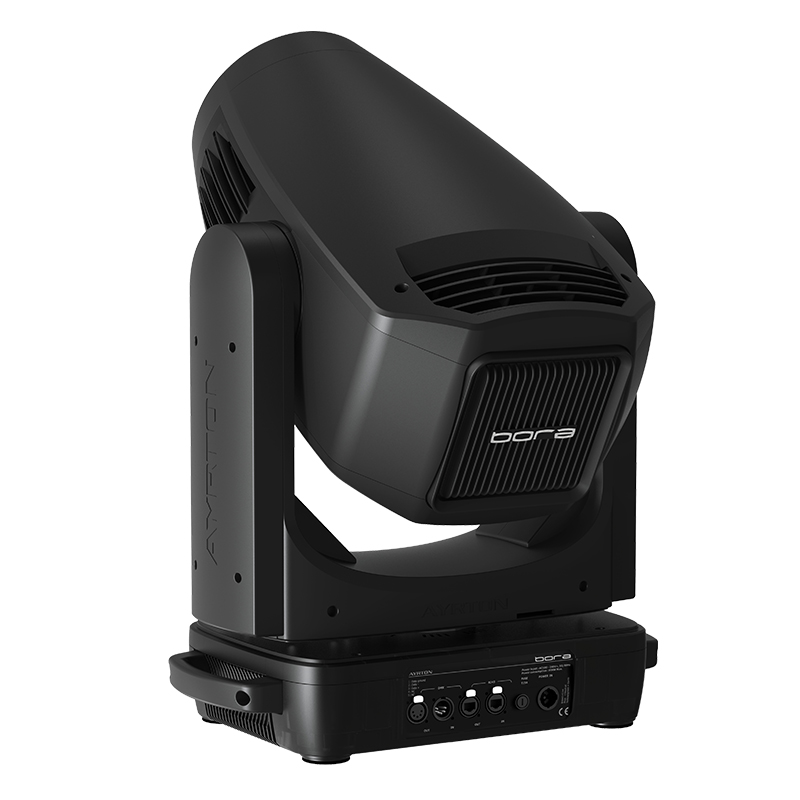

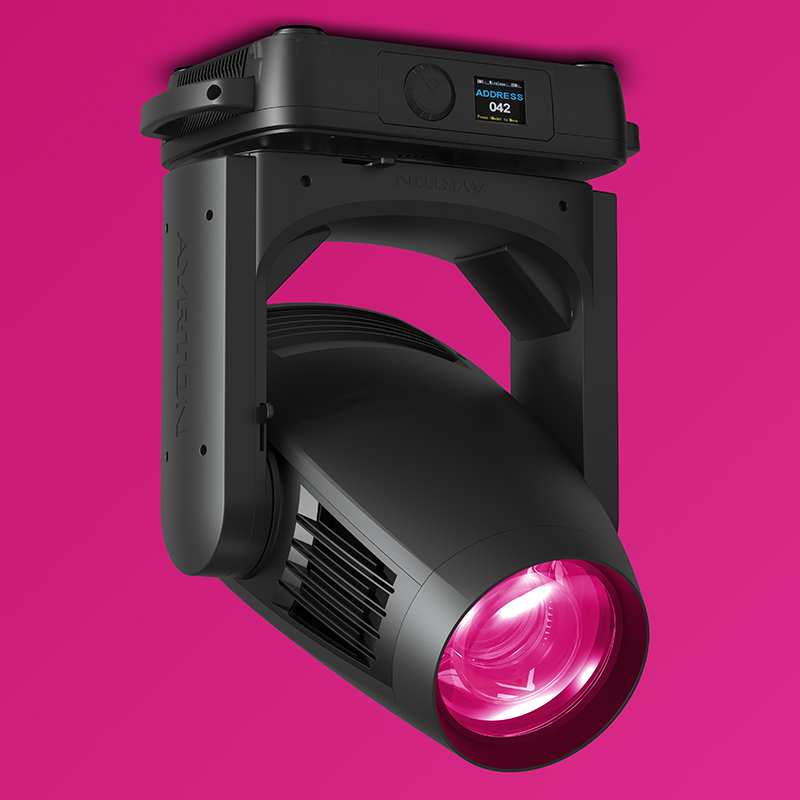

Ayrton has developed Bora, its new feature-packed 750 W wash luminaire, using a radical approach.
Its specific function is to establish the perfect atmosphere for your creative design. Fitted with a frontal 178 mm spherical lens, the proprietary optical system using 13 high-quality lenses was developed specifically for “wash” applications. It features an 8:1 zoom ratio for a wide zoom range from 8° to 64°. The optics produces an extremely uniform flat beam with no hot spot, ensuring a perfectly homogeneous colour mix regardless of the colour combination selected. BORA comes in two versions, each to meet the specific requirements of lighting professionals. BORA S is designed for scenic applications. It is equipped with a new LED module calibrated at 8000 K, delivering powerful metallic white light with record-breaking output of 40,000 lumens. Devised specifically for applications that require perfect colour reproduction, BORA TC is equipped with an entirely new LED module using a monochromatic light source calibrated at 6200 K with a native colour rendering index greater than 90, and extremely high TM30 readings.
Wonderfully sleek and compact, Bora S and Bora TC are examples of meticulous workmanship.
Feature-rich from the factory, BORA includes a CMY colour mixing system, which, combined with a variable CTO and two wheels with six complementary colours each, produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. BORA is also factory-equipped with a wheel holding six rotating gobos specially designed for wash-type applications, a variable linear frost and a 15-blade iris diaphragm. Like all Ayrton luminaires, BORA has a phase-change liquid cooling system using a heat pipe that includes a particularly effective silent ventilation mode. BORA comes in two variants to accommodate all types of professional use. BORA S is particularly suitable for situations requiring a great deal of light output such as concerts or other live entertainment. Designed for total versatility, BORA TC is ideal for applications that call for impeccable colour reproduction, such as fashion shows or car shows.
OPTICS
13-element 8:1 zoom in high-resolution optic system
Beam aperture: 8° to 64°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
178 mm frontal lens for greater performance
LIGHT SOURCE
Bora S
60,000 lumens 8000 K white light engine
Total luminaire output: up to 40,000 lumens
Colour temperature output: 6800 K
CRI: greater than 70
Bora TC
48,000 lumens 7000 K white light engine
Total luminaire output: up to 31,000 lumens
Colour temperature output: 6200 K
CRI: greater than 90
Bora S & Bora TC
Rated life (L70): up to 40,000 hours
Flicker free sources management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving head operated via either 8 or 16 bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movements
Pan and tilt with automatic repositioning
Moving-head range: 540° (pan), 262° (tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
2 fixed colour wheels with six complementary colours each
GOBOS
Indexable rotating gobo wheel with 6 gobos plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 34.3 mm
Image diameter: 25.0 mm
BARNDOORS
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 45°
SIZE
Product: 494 x 737 x 280 mm (l x h x d)
Flight-case foam: 655 x 590 x 555 mm (l x h x d)
WEIGHT
Product: 37.8 kg
