Perseo Profile

6 Series - Source: 500 W - 6900 K - S version
Lumens: 30,000 - S version
Native CRI: greater than 90 - TC version
Beam Aperture: 7° to 58°
Front Lens: 148 mm

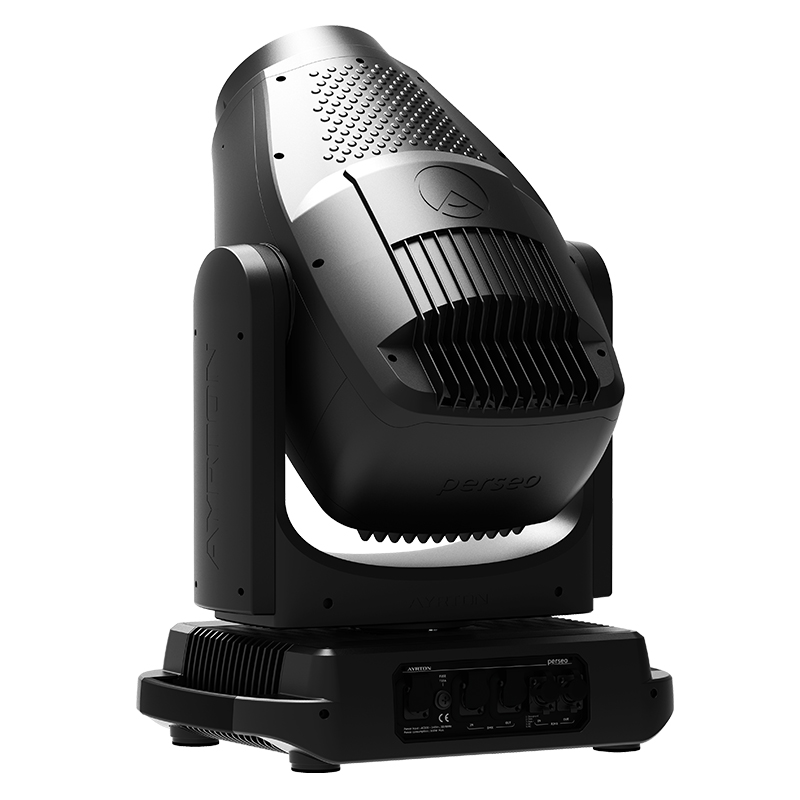

PERSEO PROFILE is the first compact multi-function luminaire with an IP65 enclosure rating developed by Ayrton for intensive outdoor use.
Equipped with a new 500 W ultra-compact monochromatic LED source calibrated at 8000 K, it can deliver metallic white light with an output of 27,400 lumens. Ayrton has specifically developed the optics in PERSEO PROFILE to achieve an optimal resolution-to-performance-to-efficiency ratio. They allow perfect image reproduction and significant improvement from distortion caused by the shutter blades with wide zoom. The optics produce a highly uniform flat beam with no hot spot, achieving a perfect colour mix regardless of the colour combination selected. Fitted with a 148 mm frontal lens, this proprietary system has 13 lenses, delivering an 8:1 zoom ratio and a zoom range of 7° to 58°. Ayrton has endowed this next generation luminaire with a new minimalist design in lighter weight die-cast aluminium, incorporating full weather-proofing features that ensure easy accessibility. For greater efficiency, PERSEO PROFILE is provided with a highly effective phase-change liquid cooling system fitted with six submersible fans located outside the watertight enclosure.

The ultimate in versatility, designed for multiple outdoor and indoor applications, PERSEO PROFILE boasts feature-rich standard equipment including a subtractive CMY colour mixing system combined with a variable CTO and a wheel with six complementary colours that produces an infinite palette of vivid pastels and saturated colours. The framing section allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. The image section includes 18 interchangeable HD glass gobos on two wheels: one rotating wheel with seven positions and one fixed wheel with eleven positions. The effects section includes a continuous dynamic effects wheel; a 15-blade iris diaphragm; two frost filters, one light, one heavy; and two rotating prisms, one circular with 5 facets and one linear with 4 facets. PERSEO PROFILE presents a sleeker, updated, industrial design, with perfectly straightened yoke arms, a minimalist base and a new water-resistant menu navigation system. PERSEO PROFILE can be controlled by DMX-RDM, ArtNet™ or a wireless link using CRMX TiMo RDM from LumenRadio™.
