Argo 6 FX
- Ayrton
- 6 Series
6 Series - Source: 19 RGBW LED
Lumens: 13,000
Zoom aperture: 4° to 56°
Frontal Lens: 19 x 50 mm

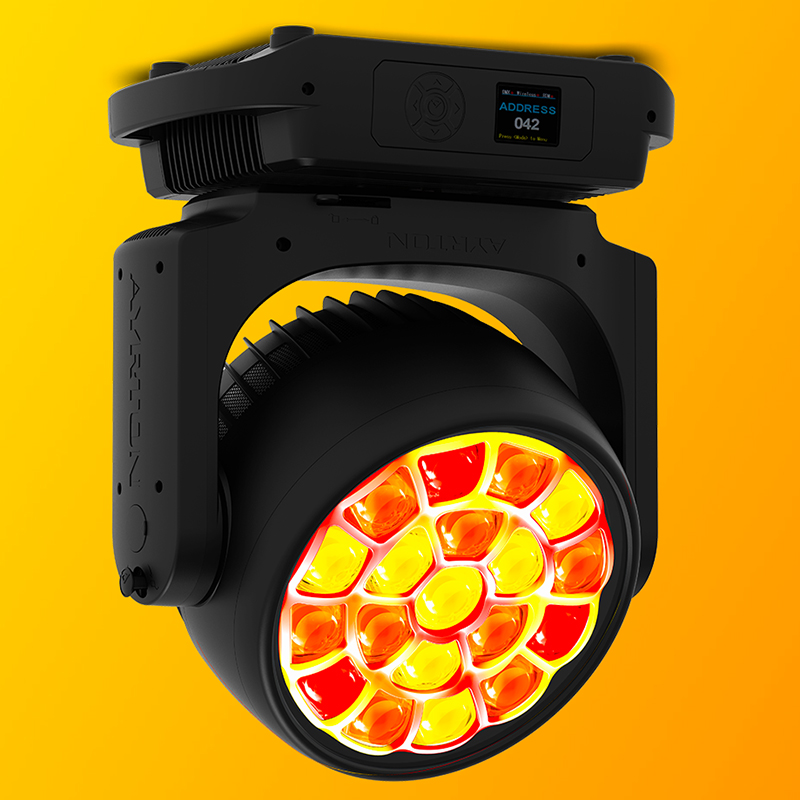

Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.

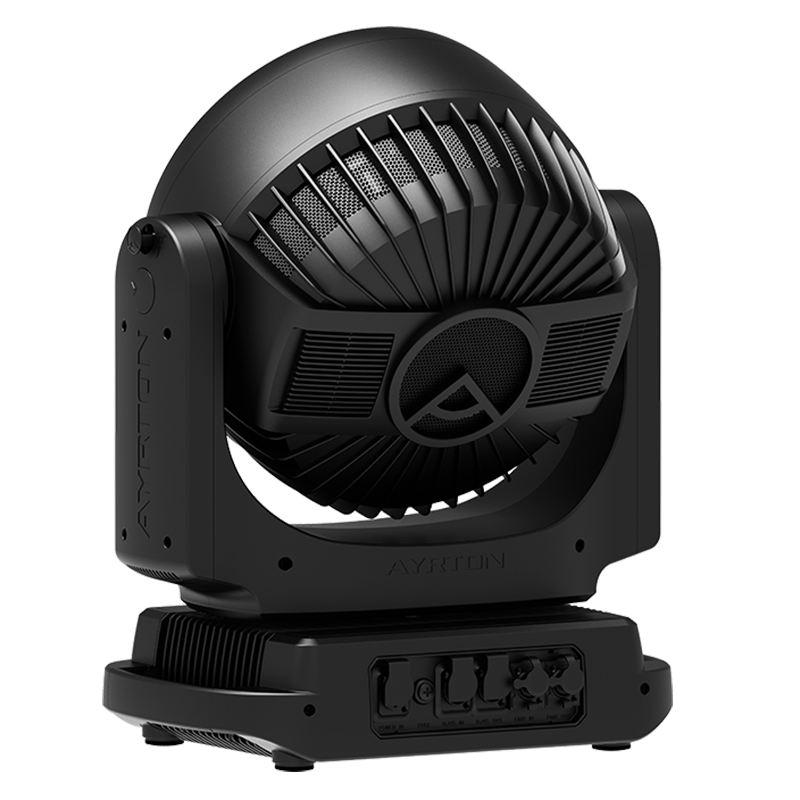

This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access. The anti-reflective treated glass window guarantees an optimal visual result and offers increased performance. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
The power and visual performance of ARGO 6 FX is ensured by a proprietary optical system consisting of a cluster of 19 lenses in PMMA with a diameter of 280 mm, combined with 19 glass light guides with an output surface made of an optical micro structure.
ARGO 6 FX can obtain a highly intense beam with a zoom ratio of 14:1 and a wide zoom range from 4° to 56°. ARGO 6 FX is equipped with 19 LEDs of 40 Watts with RGB+W additive colour synthesis that can obtain light output of 13,000 lumens. ARGO 6 FX is a versatile fully-equipped luminaire designed for a multitude of applications. It borrows from the main features of the WASH version. It offers continuous rotation of the pan and tilt movement I.R.S.TM. ARGO 6 FX is equipped with a high-definition liquid effect system enhanced by a translucent honeycomb that can generate complex graphic effects LiquidEffectTM. It can be used alone or in combination with the main LED matrix. By allowing for more precision and exactness, ARGO 6 FX add a breath of creativity. Rediscover a new sense of pure freedom.
OPTICS
2 elements 14:1 zoom high-resolution optic system
Beam aperture: 4° to 56°
Fast motorised linear zoom
19 truncated edges 50 mm frontal lenses
280 mm front lens cluster
LIGHT SOURCE
19 x 1,000 lumens RGB+W High-Power LED sources
Total luminaire output: up to 13,000 lumens
CRI: up to 86
Rated life: L70: up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
PAN and TILT automatic repositioning
Moving-head range: infinite pan & tilt rotation
COLOURS
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8-bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
EFFECTS
2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Individual control of each pixels
LiquidEffectTM
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SIZE
Product: 436 x 536 x 280 mm (l x h x d)
Flight-case foam: 485 x 560 x 350 mm (l x h x d)
WEIGHT
Product: 23.2 kg
