Huracán Profile
- Ayrton
- 9 Series
9 Series - Source: 1000 W - 7000 K - Huracán Profile S
Lumens: 51,000 - Huracán Profile S
Native CRI: greater than 95 - Huracán Profile TC
Beam Aperture: 6° to 60°
Front Lens: 178 mm

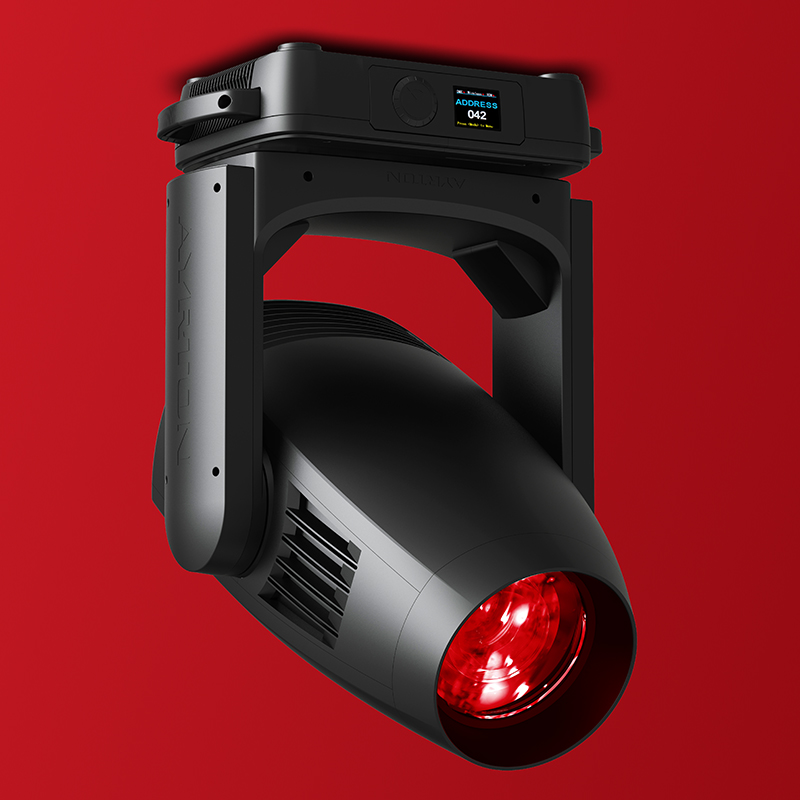

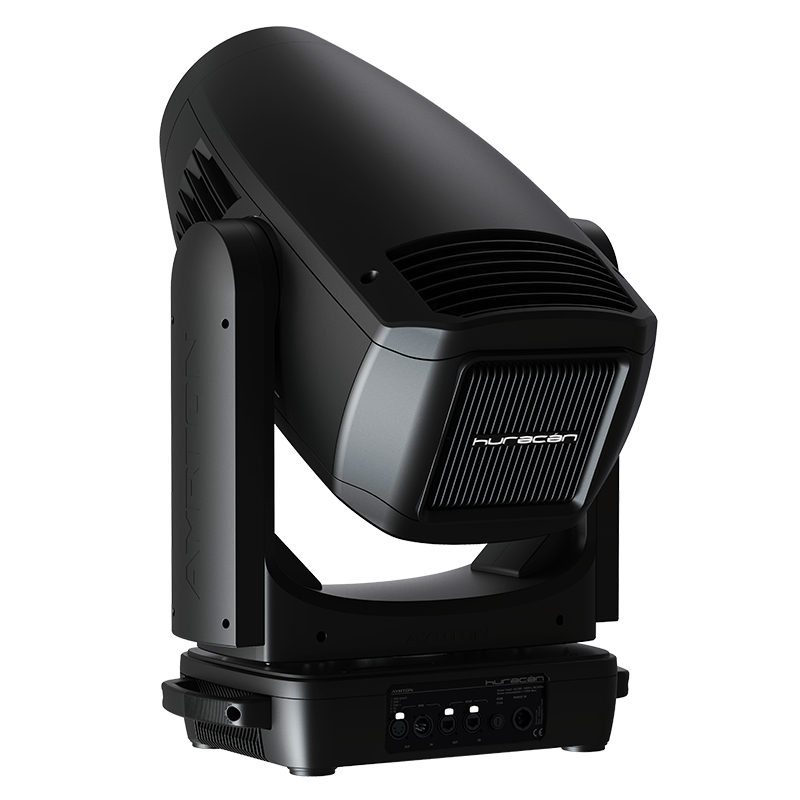

Huracán Profile is a marvel of technology that brings exceptional light output to a standard-equipment luminaire in a class by itself – a formidable graphical tool for enhancing creativity.
Fitted with a next-generation oversized cooling system and a high-efficiency 1000 W LED module, Huracán Profile produces record output of 51,000 lumens at a colour temperature of 7000 K when operating at a steady state. For this exceptional luminaire, AYRTON has developed an entirely new complex subtractive CMY colour mixing system that can generate billions of colours (patent pending) with a triple variable colour temperature corrector allows subtle adjustment from 2700 K to 15000 K and offers noticeable CRI improvement. Designed to project complex graphical effects, HURACÁN Profile boasts specifically developed optics that deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images. The proprietary optical system, equipped with a 178 mm frontal lens, uses 13 lenses, producing an 10:1 zoom ratio and a zoom range of 6° to 60°.
Huracán Profile offers an advanced framing section, which allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position.
Huracán Profile is provided with an amazingly complete graphical system with one 7-position wheel for interchangeable effects cassettes or gobos. The wheel is fitted with 5 rotating gobos and 2 effects cassettes that can create dynamic effects by superimposing two complementary inverted images in counter rotation (patent pending). A second interchangeable gobo wheel is equipped with 7 rotating gobos. A monochromatic multi-position effects wheel allows horizontal, vertical or axial scrolling for creating flame, water or radiant effects (patent pending). A multi-layer CMY wheel can generate multicolour effects. The gobos, cassettes and effects wheel are made of high-definition tempered glass. Additionally, standard features in Huracán Profile include a 15-blade iris diaphragm, a light and a heavy frost filter, 2 rotating prisms, a 5-facet circular and a 4-facet linear prism. Huracán Profile is the ultimate graphical tool for applications requiring power and refinement.
OPTICS
13-elements 10:1 zoom high-resolution optic system
Beam aperture: 6° to 60°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
178 mm frontal lens for greater performance
LIGHT SOURCE
Huracán Profile S
75,000 lumens 8000 K white light engine
Total luminaire output: up to 51,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Huracán Profile TC
53,000 lumens 6800 K white light engine
Total luminaire output: up to 33,900 lumens
Colour temperature output: 6400 K
CRI: greater than 95
Huracán Profile S & Huracán Profile TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: 540° (pan), 262° (tilt)
COLOURS
Complex CMY colour mixing system capable of generating billions colours (patent pending)
Variable CTB colour temperature correction
Variable CTO colour temperature correction
Variable CTP colour temperature correction
Fixed colour wheel with six complementary colours
GOBOS
Indexable rotating double layer cassette wheel with 2 effect cassettes and 5 high-precision glass gobos plus open position
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating cassette and gobo in both directions
Gobo diameter: 30.0 mm
Image diameter: 25.0 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 45°
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
SIZE
Product: 486 x 811 x 294 mm (l x h x d)
Flight-case foam: 715 x 555 x 630 mm (l x h x d)
WEIGHT
Product: 46.0 kg
