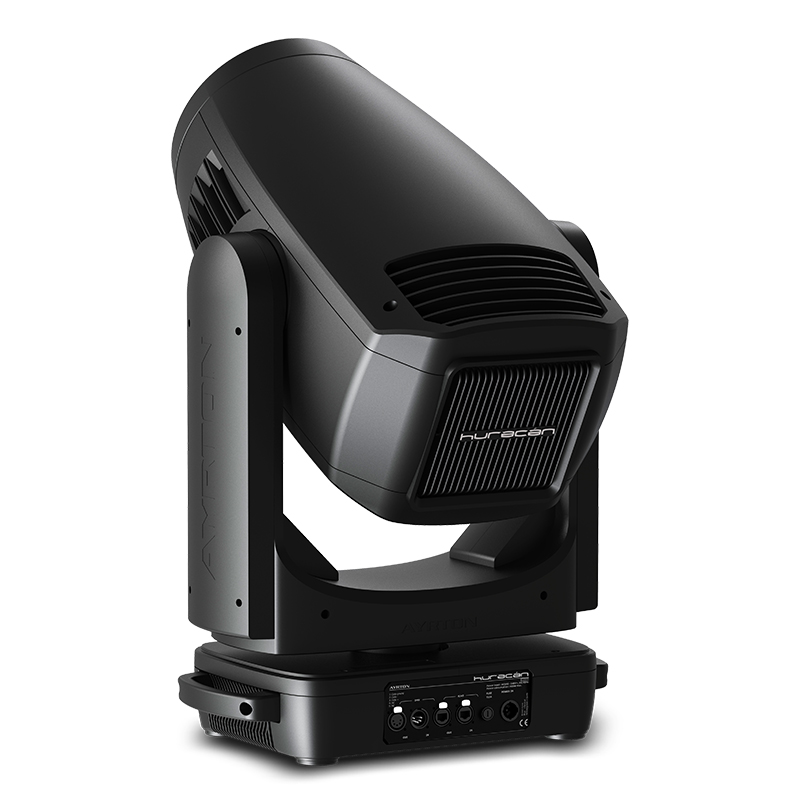

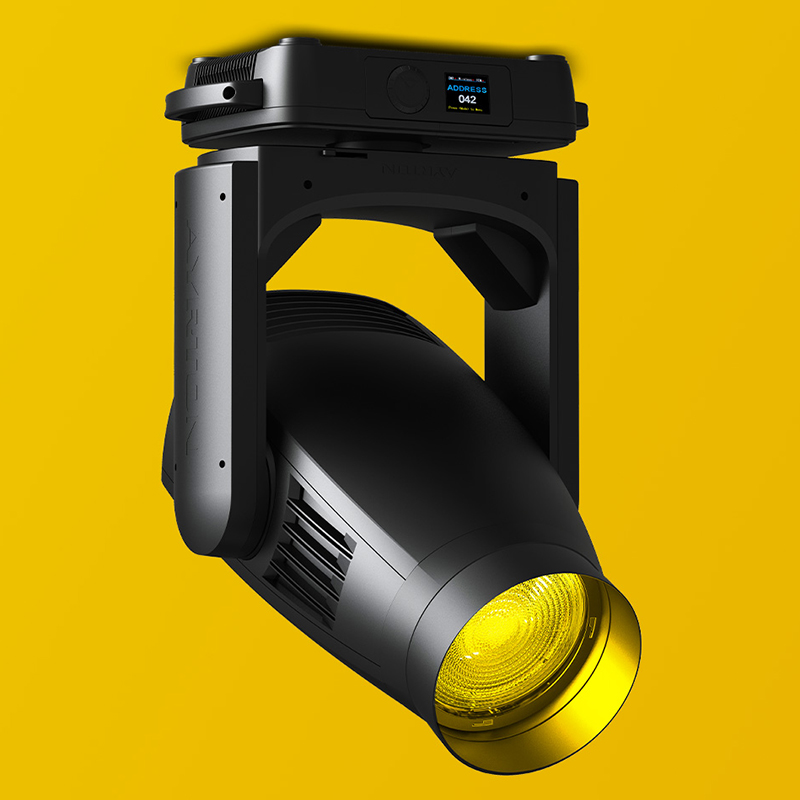

Huracán Wash
- Ayrton
- 9 Series
9 Series - Source: 1000 W - 6000 K - Huracán Wash ST
Lumens: 52,000 - Huracán Wash S
Native CRI: greater than 95 - Huracán Wash TC
Beam Aperture: 6.2° to 75°
Front Lens: 210 mm
For the latest wash-type luminaire of the HURACÁN family, AYRTON has designed an entirely new Fresnel lens with an optical structure specially developed for use with framing barndoors,
also favouring use with geometric gobos or ovalisation lenses, without constraints. A subtle progressive diffusion system allows the diffusion level to be adapted according to the application and accessories or optical elements used. The Fresnel lens also significantly improves the colour mix and can obtain 10% more light than when using a conventional Fresnel lens F.O.S.™. The proprietary optical system of HURACÁN WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak. This new luminaire adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement. T.C.S.™ (patent pending).
HURACÁN WASH introduces a brand new 1000 W monochromatic LED source specially developed for studio and theatre applications, called the ST.
This LED source delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For shows that need cooler metallic white light, the S version offers a record luminous flux of 52,000 lumens, a colour temperature of 7,000 Kelvin and a CRI of 70. For applications requiring perfect colour rendering, the TC version offers a CRI greater than 95 with extremely high TM30 values and a colour temperature of 6000 K. HURACÁN WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four barndoors on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. HURACÁN WASH also offers a wheel of seven rotating gobos, a 15-blade iris diaphragm and a beam ovaliser filter. HURACÁN WASH is an exceptional luminaire designed to satisfy the most demanding users.
OPTICS
13-element 12:1 zoom high-resolution optic system
Beam aperture: 6.2° (half peak) to 75° (one-tenth peak)
Fast motorised linear zoom
Tempered anti-reflective coated lenses
210 mm Fresnel frontal lens
LIGHT SOURCE
Huracán Wash S
80,000-lumen white light engine
Total luminaire output: up to 52,100 lumens (integrating sphere measurement, Auto Fan Mode)
Colour temperature output: 7000 K
CRI: greater than 70
Huracán Wash ST
68,000-lumen white light engine
Total luminaire output: up to 45,300 lumens (integrating sphere measurement, Auto Fan mode)
Colour temperature output: 6000 K
CRI: greater than 80
Huracán Wash TC
49,000-lumen white light engine
Total luminaire output: up to 33,900 lumens (integrating sphere measurement, Auto Fan mode)
Colour temperature output: 6000 K
CRI: greater than 95
Huracán Wash (all versions)
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving head range: 540° (pan), 260° (tilt)
COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
Variable CTB colour temperature correction
Variable CTO colour temperature correction
Variable CTP colour temperature correction
Fixed colour wheel with six complementary colours
GOBOS
Indexable rotating gobo wheel with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30.0 mm
Image diameter: 25.0 mm
Gobo thickness: 1.1 mm
SIZE
Product: 494 x 788 x 294 mm (l x h x d)
Flight-case foam : 715 x 555 x 630 mm (l x h x d)
WEIGHT
Product: 42.5 kg
