Domino LT
- Ayrton
- 9 Series
9 Series - Source: 1000 W - 6700 K
Lumens: 51,000
Native CRI: greater than 70
Beam Aperture: 3.5° to 53°
Frontal Lens: 225 mm

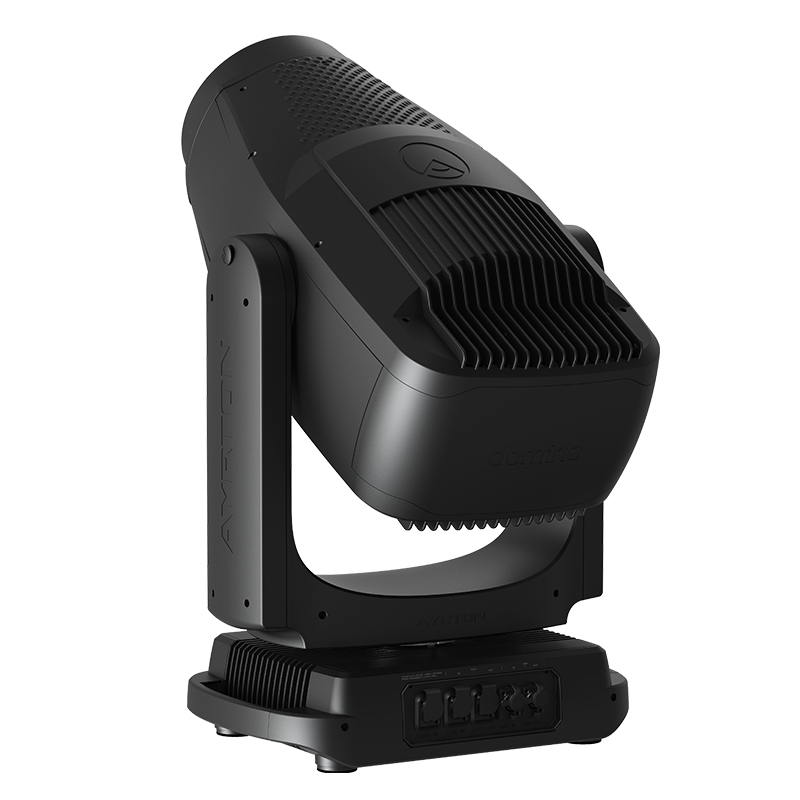

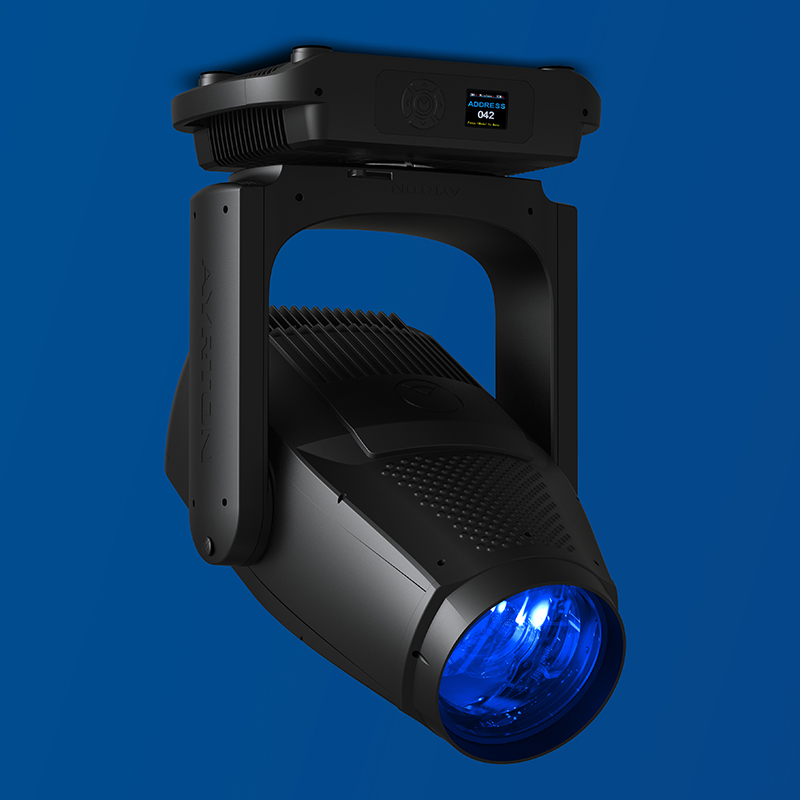

DOMINO LT is the first all-terrain LED luminaire in the « LT » (Long Throw) range designed for intensive outdoor use in long-distance applications requiring high precision.
To create this extreme luminaire unrivalled on the market, AYRTON has used “XXL” 225 mm-diameter frontal optics weighing 7 kg that can obtain an ultra-intensive beam. The proprietary optical system has 13 lenses, delivering a 15:1 zoom ratio and a zoom range of 3.5° to 53°. DOMINO LT was developed to cope with the most extreme conditions, able to acclimate to all types of environments and endure rapid climate change. For this purpose, DOMINO LT has borrowed from the style and minimalist design of DOMINO PROFILE, incorporating full weather-proofing features while ensuring total accessibility to the luminaire’s internal functions. With its new die-cast aluminium frame, the luminaire uses the same base, reducing its visual footprint to a minimum. For greater efficiency, DOMINO LT has a highly effective next-generation, oversized cooling system fitted with six submersible fans outside its weatherproof enclosure.
Equipped with an all-new high-efficiency 1,000-watt LED module, DOMINO LT delivers a record luminous flux of 51,000 lumens at a colour temperature of 6700 K.
DOMINO LT adopts the complex colour mixing system of HURACÁN PROFILE, offering a double level of CMY saturation that can obtain 281 trillion colours (patent pending) and a triple corrector for variable colour temperature that allows subtle adjustment from 2700 K to 15000 K and significant CRI improvement. Fitted with multiple optical tools for shaping light, DOMINO LT is factory-equipped with a linear progressive frost system, a lightweight frost filter, and two image-multiplying rotating prisms: one is linear with four facets and the other is circular with five facets. The framing section enables precise positioning of each shutter blade on a 100% surface area. The effects section includes two superimposed rotating gobo wheels each with seven gobos, a 15-blade iris diaphragm, a monochromatic multi-position effects wheel, and an RGB and CMY effects wheel for unique multicolour effects. DOMINO LT is a unique luminaire designed to face the most extreme conditions… It is the ultimate tool for stadiums and large arenas.
OPTICS
13-element 15:1 zoom high-resolution optic system
Beam aperture: 3.5° to 53°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
225 mm frontal lens for greater performance
LIGHT SOURCE
75,000 lumens 8200 K white light engine
Total luminaire output: up to 51,000 lumens (integrating sphere measurement, Auto Fan Mode)
Colour temperature output: 6700 K
CRI: greater than 70
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Highly accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: 540° (pan), 263° (tilt)
COLOURS
Complex colour mixing system with a double CMY saturation level capable of generating trillions of colours (patent pending).
Variable CTB colour temperature correction
Variable CTO colour temperature correction
Variable CTP colour temperature correction
Fixed colour wheel with six complementary colours
GOBOS
Two indexable rotating gobo wheels with seven high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30.0 mm
Image diameter: 25.0 mm
Gobo thickness: 0.5mm (metal gobo) – 1.1 mm / 2.2mm
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 60°
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
FROST
Progressive linear frost for wash effect
Light frost for erasing the edge of the beam
SIZE
Product: 490 x 884 x 330 mm (l x h x d)
Flight-case foam: 765 x 665 x 555 mm (l x h x d)
WEIGHT
Product: 60.0 kg
