Domino Profile
- Ayrton
- 9 Series
9 Series - Source: 1,000 W - 7000 K - Domino Profile S
Lumens: 51,000 - Domino Profile S
Native CRI: greater than 90 - Domino Profile TC
Beam Aperture: 6° to 60°
Front Lens: 178 mm

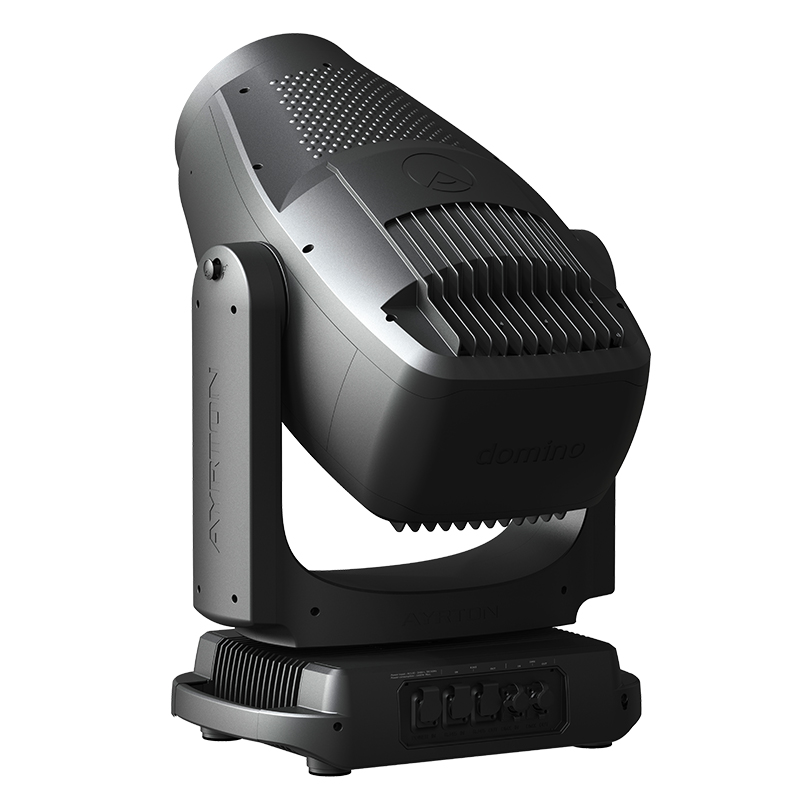

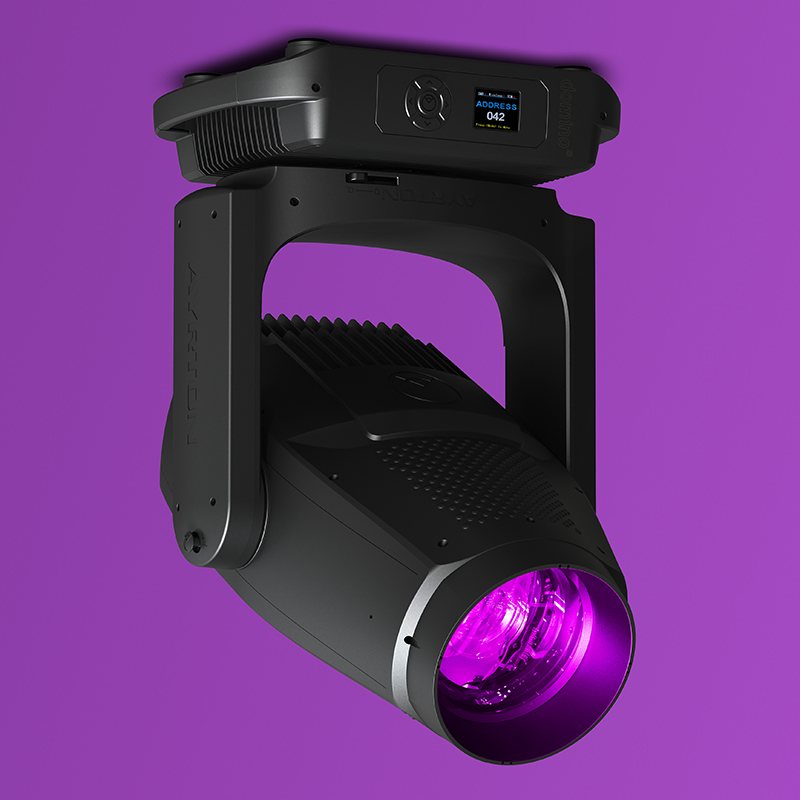

A new member of AYRTON’S IP65 multi-function luminaire family designed for intensive outdoor use, DOMINO PROFILE is a marvel of technology that combines extraordinary light power with full-featured standard equipment.
Equipped with an entirely new 1000 W monochromatic high-efficiency LED emitter calibrated at 8000 K, DOMINO PROFILE S can deliver powerful metallic white light with record output of 51,000 lumens at a colour temperature of 7000 K, when operating at a steady state. DOMINO PROFILE TC is specially designed for situations that require perfect colour rendition, it will amaze colour aficionados with its C.R.I. greater than 90 and extremely high TM30 readings, at a colour temperature of 6000 Kelvin. Designed around the exceptional optics of HURACÁN PROFILE, this luminaire was specifically developed to achieve an optimal resolution-to-performance-to-efficiency ratio. These optics deliver an extremely uniform flat beam with no hot spot and reproduce high-definition images impeccably. Fitted with a 178 mm frontal lens, the proprietary optical system uses 13 lenses, producing a 10:1 zoom ratio and a zoom range of 6° to 60°. Designed to operate in the most extreme situations, DOMINO PROFILE can resist hot or cold temperatures, wind, rain, hail, salt fog, sand and dust. It can withstand arid environments, heavy rainfall, and sudden climatic variations.
AYRTON has included all the weatherproofing features of PERSEO PROFILE in this new IP65 luminaire and given it the same minimalist design.
With its new high-efficiency power supply and die-cast aluminium frame, the luminaire uses the same base design in a reduced visual footprint. For maximum effectiveness, DOMINO PROFILE has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. Feature-rich from the factory, DOMINO PROFILE includes a subtractive CMY colour mixing system combined with a variable CTO and a wheel with six complementary colours. The framing section allows accurate positioning of each shutter blade on a 100% surface area. The image section includes 14 interchangeable HD glass gobos on two wheels. The effects section contains two continuous dynamic effect-wheels, a CMY multi-layered wheel for creating multi-coloured effects, a standard monochromatic effect-wheel, a 15-blade iris diaphragm, two frost filters (one for light and one for heavy diffusion), two rotating prisms (one circular with 5 facets and one linear with 4 facets). DOMINO PROFILE is The Master of the Elements, ready for the most extreme conditions.
OPTICS
13-element 10:1 zoom high-resolution optic system
Beam aperture: 6° to 60°
Fast motorised linear zoom
Tempered anti-reflective coated lenses
178 mm frontal lens for greater performance
LIGHT SOURCE
Domino Profile S
75,000 lumens 8000 K white light engine
Total luminaire output: up to 51,000 lumens
Colour temperature output: 7000 K
CRI: greater than 70
Domino Profile TC
56,000 lumens 7000 K white light engine
Total luminaire output: up to 36,400 lumens
Colour temperature output: 6500 K
CRI: greater than 90
Domino Profile S & Domino Profile TC
Rated life (L70): up to 40,000 hours
Flicker-free source management suitable for TV applications and all video-recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
Pan and tilt automatic repositioning
Moving-head range: 540° (pan), 263° (tilt)
COLOURS
Sophisticated colour mix system providing CMY colour mixing
Variable CTO colour temperature correction
Fixed colour wheel with six complementary colours
2 CRI and TM30 optimizer filters
GOBOS
2 indexable rotating gobo wheels with 7 high-precision glass gobos, plus open position
Adjustable-speed rotating gobo in both directions
Gobo diameter: 30.0 mm
Image diameter: 25.0 mm
Gobo thickness: 1.1 mm
FRAMING SYSTEM
4 individually positionable shutter blades on a 100% surface area in all positions
Rotation of the framing system module: +/- 60°
IRIS DIAPHRAGM
Fast iris diaphragm with adjustable dynamic effects
Iris range: 15% to 100% open
SIZE
Product: 490 x 841 x 330 mm (l x h x d)
Flight-case foam: 715 x 665 x 555 mm (l x h x d)
WEIGHT
Product: 52 kg
