Domino Wash

9 Series - Source: 1000 W - 6000 K - Domino Wash ST
Lumens: 52,000 - Domino Wash S
Native CRI: greater than 95 - Domino Wash TC
Beam Aperture: 6.2° to 75°
Front Lens: 210 mm

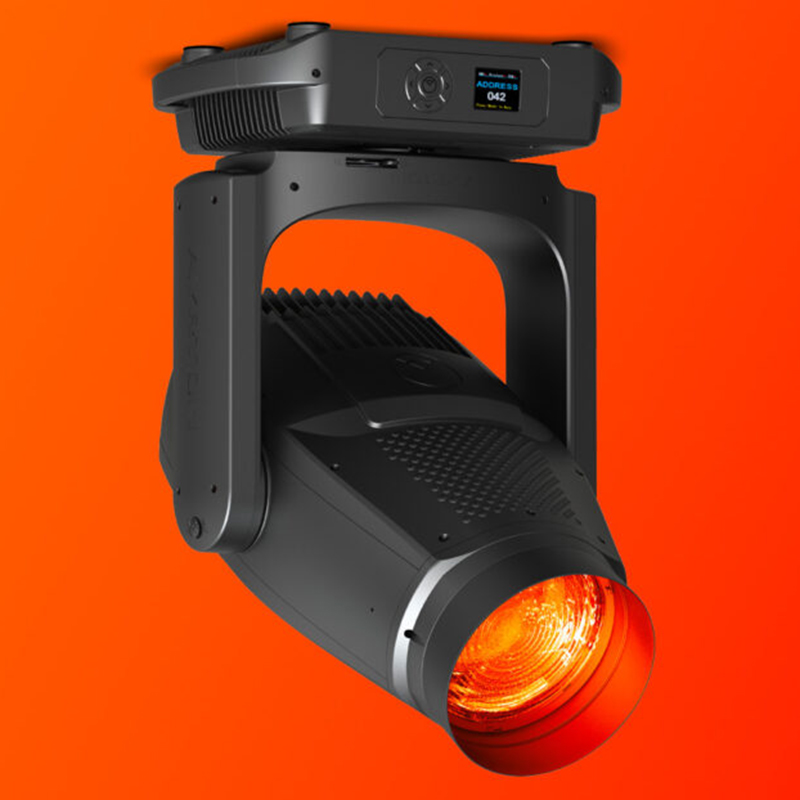

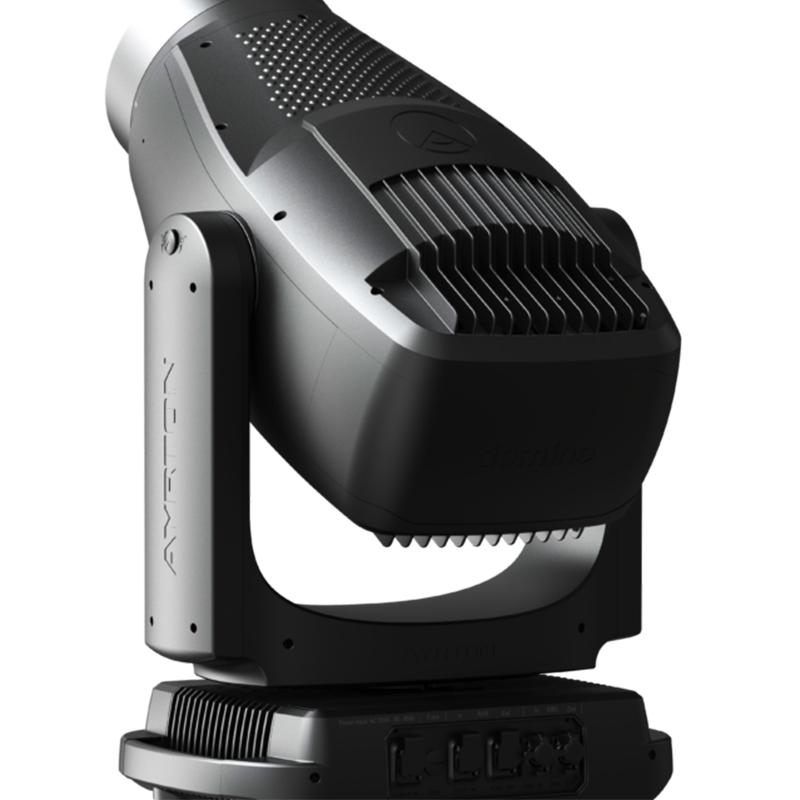

For its first IP65 wash fixture developed for outdoor use, AYRTON has chosen a 210 mm Fresnel lens with a specific optical structure designed to accurately adapt the diffusion level according to your requirements.
This optical combination that favours the use of framing shutter blades or geometric gobos significantly improves colour mix and can produce 10% more light than with a classic Fresnel lens F.O.S.™. DOMINO WASH opens up a whole new world of versatility. This luminaire is available in three versions – S, ST or TC – meant to cover all types of stage use. For shows that need cooler, metallic light, the “Stage” version provides a record luminous flux of 52,000 lumens, a colour temperature of 7000 K and a CRI of 70. The entirely new “Studio & Theatre” version is fitted with a new monochromatic LED source that delivers light output of 45,000 lumens and a D65 white point that allows perfect colour reproduction with a CRI greater than 80. For applications requiring perfect colour rendering, the “True Color” version offers a colour rendering index greater than 95 with extremely high TM30 values and a colour temperature of 6000 Kelvin.

The proprietary optical system of DOMINO WASH delivers a 12:1 zoom ratio and a zoom range of 6.2° at half peak to 75° at one-tenth peak.
This new luminaire adopts the complex colour mixing system of HURACÁN WASH, offering a double level of CMY saturation that can obtain 281 trillion colours and a triple corrector for variable colour temperature, allowing subtle adjustment from 2700 K to 15000 K and significant CRI improvement T.C.S.™. DOMINO WASH is factory-equipped with full features, including a framing section that allows accurate positioning of four shutter blades on a 100% surface area in all positions, so that the user can frame any object regardless of the luminaire’s position. DOMINO WASH is also equipped with a wheel of seven rotating glass gobos, a 15-blade iris diaphragm and an CMY & RGB animation wheel. DOMINO WASH has a liquid cooling system fitted with six submersible fans outside its weatherproof enclosure. An all-terrain luminaire developed for resisting hot or cold weather, wind, rain, hail, sand, dust, DOMINO WASH aims to create unprecedented, incomparable and simply stunning atmospheres. This professional smart luminaire is geared for concerts, performing arts, theme parks, and film shoots. Together with DOMINO PROFILE and DOMINO LT, DOMINO WASH completes an exceptional trilogy.
