WildSun K9 Wash
- Ayrton
- 9 Series
9 Series - Source: 217 mono-chip LED
Lumens: 63,000
Zoom aperture: 10° to 60°
Frontal Lenses: 217 Silicone lenses

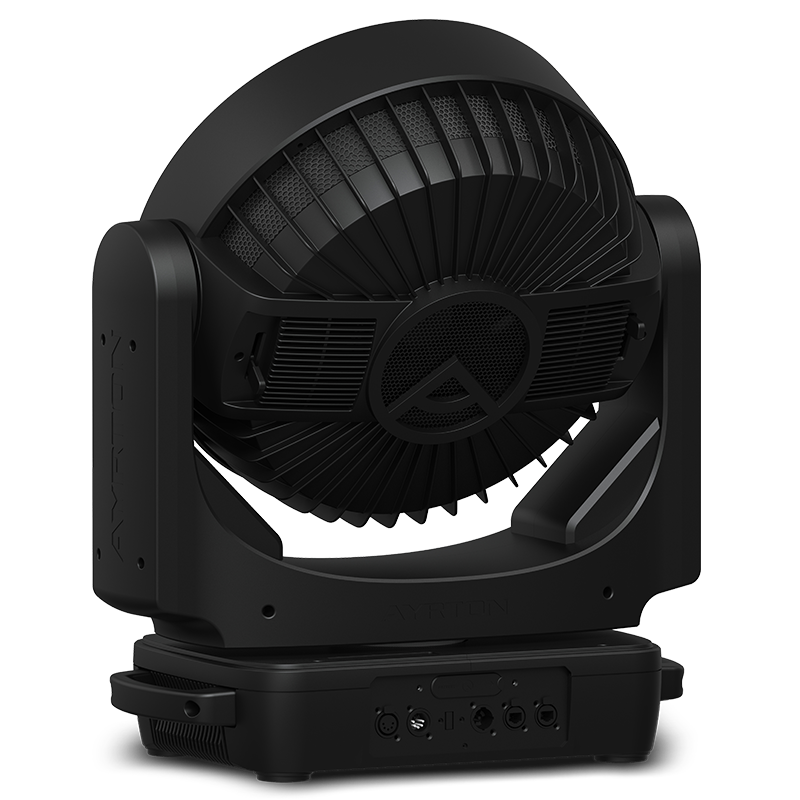

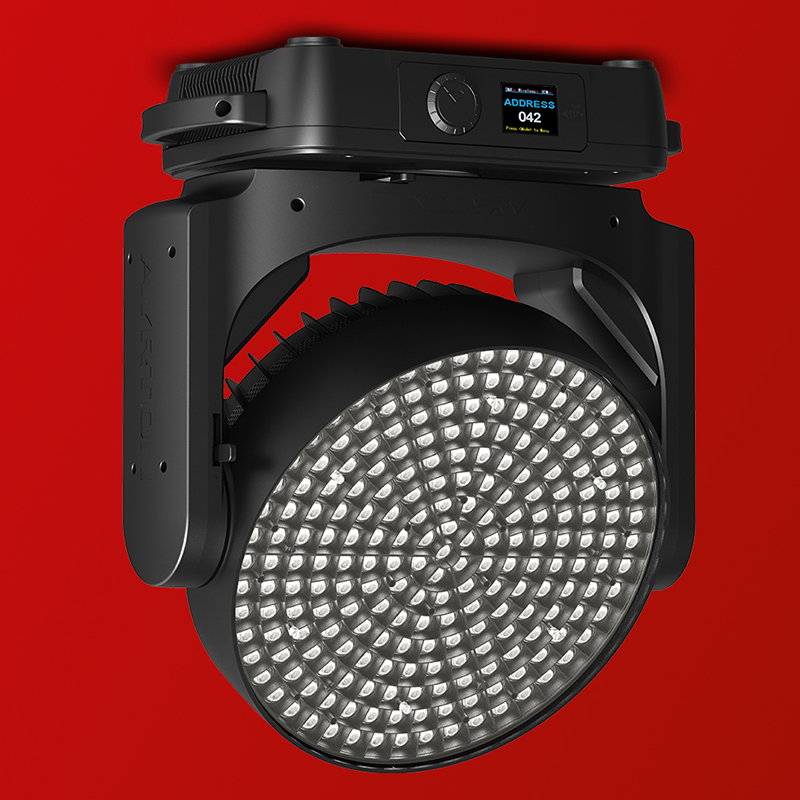

The new WILDSUN K9 WASH is a highly evolved variant of the WILDSUN K25 TC, specially geared to shooting TV video and broadcasting in high-definition.
With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WILDSUN K9 WASH is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.
WILDSUN K9 WASH is a powerhouse of technology and innovation. With the same basic specifications as WILDSUN K25 TC, it is equipped with powerful tri-phase stepper motors that allow fast, accurate and silent positioning.
AYRTON developed special silicone-based high-output optics for this projector, ensuring perfect stability over time. Its optical zoom has a 6:1 ratio with a zoom range of 10° to 60°. Luminous intensity can be fine-tuned using a precision electronic dimmer, for even greater flexibility of use. The light fixture output is equipped with a protective holographic filter in polycarbonate and an honeycomb system to prevent glare. The user can control each concentric circle individually to adjust the luminaire’s power accordingly or create dynamic effects for stage lighting.
OPTICS
1 element 6:1 zoom high-resolution optic system
Beam aperture: 10° to 60°
Fast motorised linear zoom
217 individual lenses
384 mm front lens cluster
LIGHT SOURCE
217 mono-chip High-Power LED sources
Total luminaire output: up to 63,000 lumen
CRI: up to 92
Rated life: L70: up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
Extremely accurate positioning
Moving-head operated via either 8 or 16 bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
PAN and TILT automatic repositioning
Moving-head range: 540° (pan), 270° (tilt)
COLOURS
Monochromatic daylight source perfectly calibrated at 5700 K
Color rendering index greater than 92
DIMMER / STROBE
Electronic dimmer, allowing perfect light adjustment from 0 to 100%
Strobe effect, with speed adjustment from 1 to 25 flashes per second
SIZE
Product: 530 x 625 x 280 mm (l x h x d)
Flight-case foam: 580 x 611 x 345 mm (l x h x d)
WEIGHT
Product: 26.9 kg
