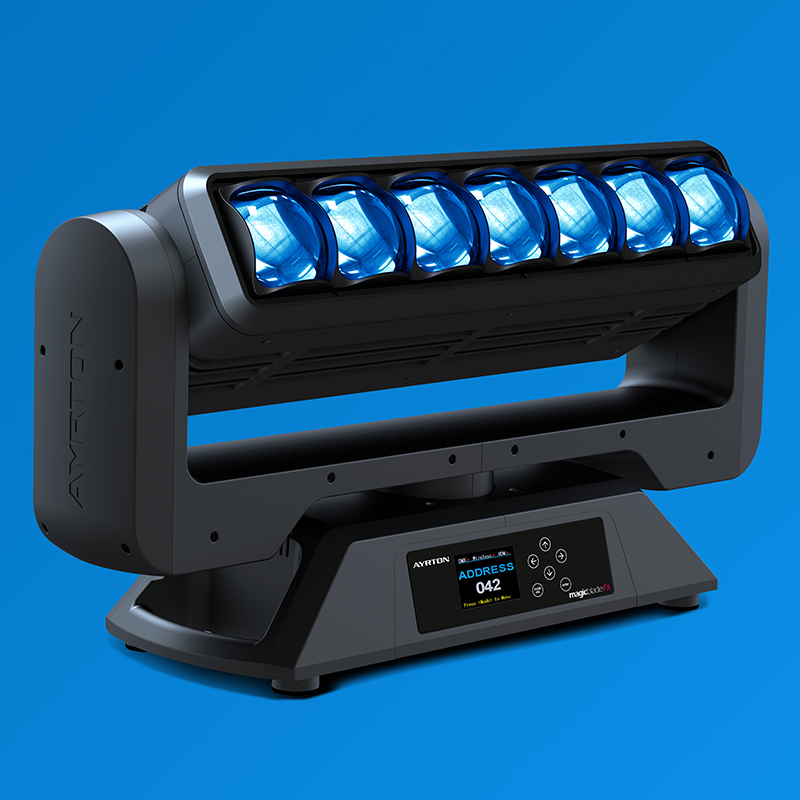

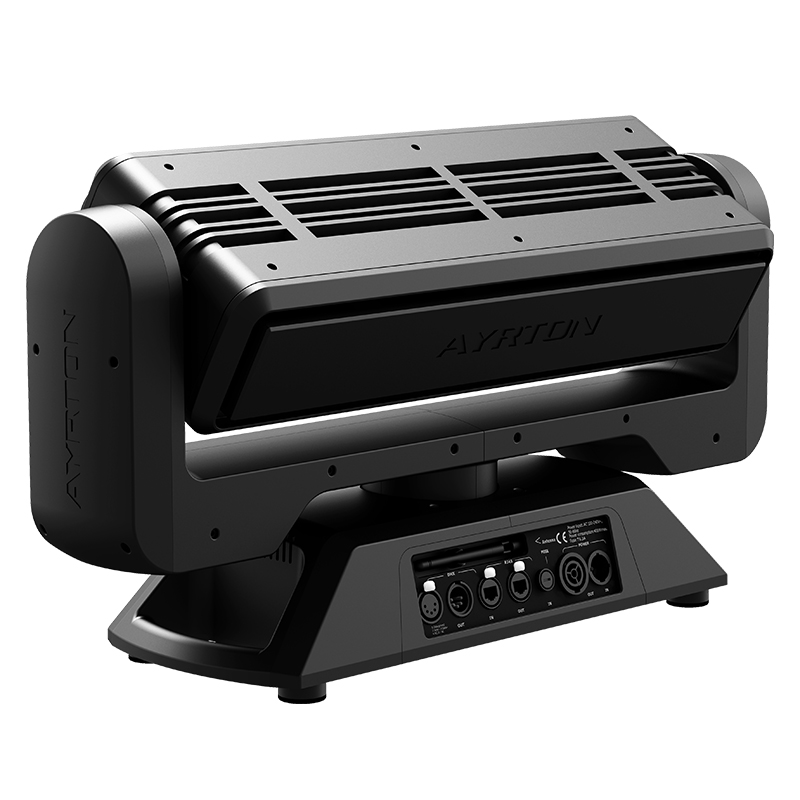

MagicBlade FX
- Ayrton
- Creative solution
Light Source: 7 x 35 W - RGBW
Lumens: 4,200
Beam Aperture: 3.6° to 53°
Movement: Infinite Pan & Tilt
Front Lenses: 7 x square 65 mm
The versatile MAGICBLADE FX is an exciting new iteration of Ayrton’s award-winning MAGICBLADE R, which has been sold by the thousands for use on major musical tours worldwide.
This new MAGICBLADE is equipped with the revolutionary FX optical zoom system that has no visible moving parts and a fixed transmitting lens. With a 15:1 zoom ratio, the beam angle of this proprietary system ranges from 3.6º to 53º. It features seven squared 65 mm transmitting lenses, each with an equivalent optical surface to a round lens with an 80 mm diameter that is combined with a ultra-powerful, low-etendue, LED emitter, enabling MAGICBLADE FX to project intense beams to help create 3D volumetric effects.
The MAGICBLADE FX has seven next-generation RGBW high-output LEDs that can be individually controlled to create airborne virtual scenery or to illuminate sets and performers.
The crisp, clean separation between LED sources permits designers to develop innovative graphic effects. An onboard library of pre-programmed effects and colour macros can be combined with console driven control in various display modes. MAGICBLADE FX has extended serial connectivity and can be controlled DMX-512 w/ RDM, ArtNet™, sACN or a wireless link with CRMX TiMo RDM from LumenRadio™.
Optics
2-elements 15:1 zoom high-resolution optic system
Beam aperture: 3.6° to 53°
Fast motorised linear zoom
7 squared 65 mm frontal lens
Light source
7 x 1,000 lumens RGBW High-Power LED source
Total luminaire output: up to 4,200 lumens
Luminous intensity: 579,600 cd (narrow beam)
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
Movement
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8 bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
Dynamic colour macro effect with variable speed
Effects
2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Dimmer / strobe
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Size
Product: 612 x 312 x 191 mm (l x h x d)
Flight-case foam: 677 x 370 x 250 mm (l x h x d)
Weight
Product: 13.0 kg
