MiniPanel FX
- Ayrton
- Creative solution
Light Source: 4 x 35W - RGBW
Lumens: 2,400
Beam Aperture: 3.6° to 53°
Movement: Infinite Pan & Tilt
Front Lenses: 4 x square 65 mm

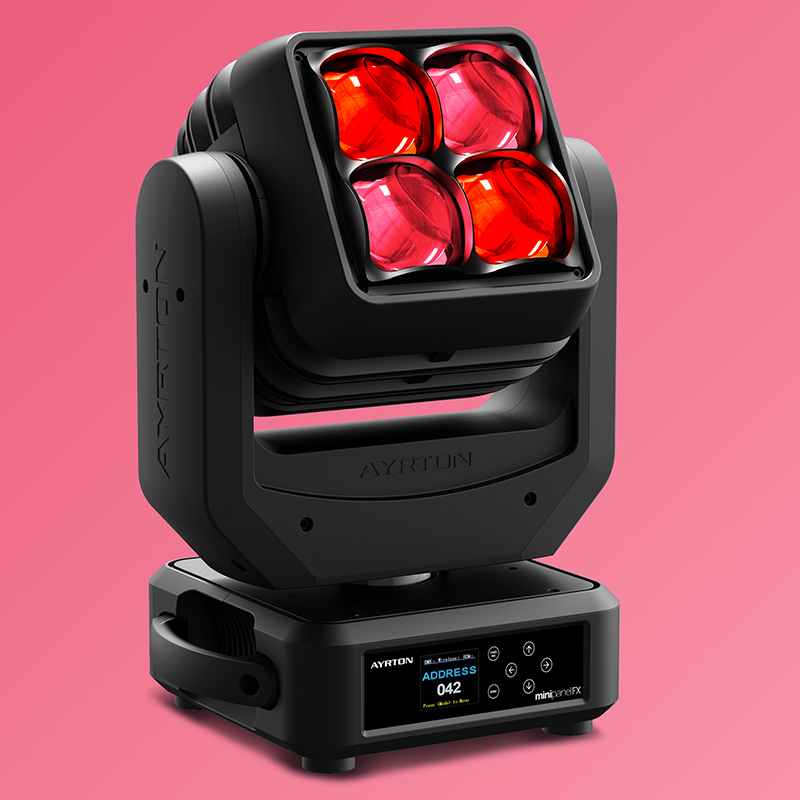

MINIPANEL FX is a versatile new multi-function and multi-use luminaire that combines the same main features and essential components as the MAGICPANEL FX, in an ultra compact format.
Fitted with four squared 65 mm lenses, the proprietary optical zoom system ensures a 15:1 zoom ratio, with a wide range of 3.6° to 53°. The crisp separation between the beams that enhances contrast, combined with an optical system using no visible moving parts and a stationary transmitting lens, offers new possibilities for creating graphical effects. Effects capabilities can be coupled with beam, wash or matrix applications to produce superb results whether performing in front of the audience or camera.
Highly compact, light, ultra-fast and powerful, MINIPANEL FX is equipped with four new low-etendue 35 W RGBW multi-chip LED emitters paired with a high-efficiency optical system.

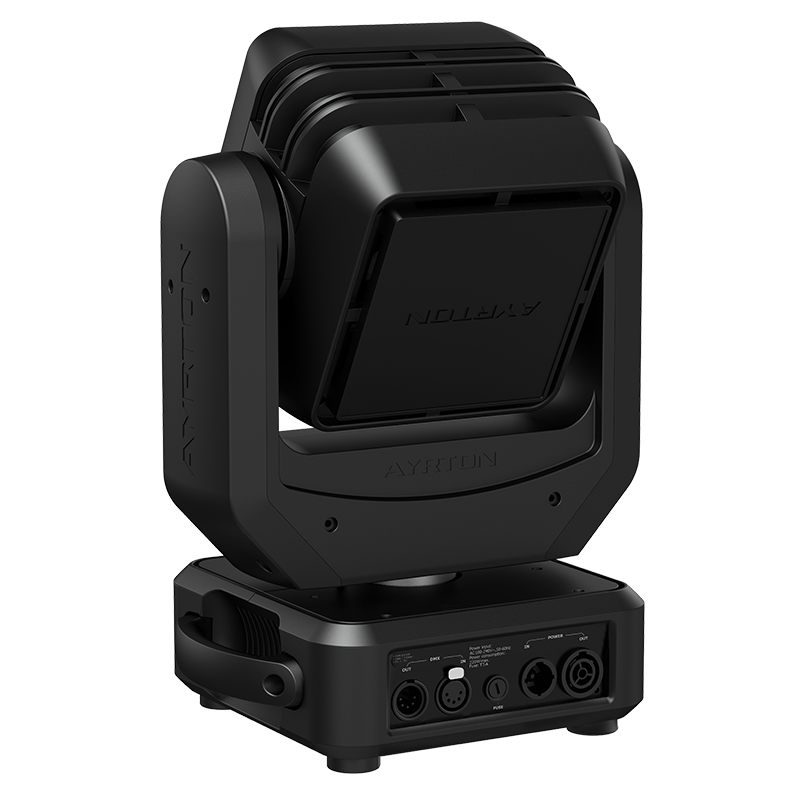

The fixture offers an overall luminous flux of 2400 lumens and a centre-beam luminous intensity of 331,200 candelas for an overall consumption of only 200 W. The continuous, unlimited, rotation on pan and tilt, first introduced on the legendary MAGICPANEL 602 in 2013, is standard. MINIPANEL FX is equipped with extended serial connectivity and can be controlled via DMX-RDM or a wireless link using CRMX TiMo RDM from LumenRadio™.
Optics
2-elements 15:1 zoom high-resolution optic system
Beam aperture: 3,6° to 53°
Fast motorised linear zoom
4 squared 65 mm frontal lens
Light source
4 x 1,000 lumens RGBW High-Power LED source
Total luminaire output: up to 2,400 lumens
Luminous intensity: 331,200 cd (narrow beam)
Rated life (L70): up to 40,000 hours
Flicker free sources management, suitable for TV applications and all video recorded events
Movement
Extremely accurate positioning
Moving-head operated via either 8- or 16-bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
Pan and tilt automatic repositioning
Moving-head range: infinite pan and tilt rotation
Colours
Sophisticated 4 colours RGBW mixed, reaching high Colour Rendering Index
Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
4.29 billion colours (8 bit resolution)
Virtual colour wheel, including most usuals white colour temperature presets
Dynamic colour macro effect with variable speed
Effects
2D & 3D graphical effects capabilities
Effects can be coupled with beam, wash or matrix applications
Built-in pattern effects with speed and fade controls for scenic applications
Dimmer / strobe
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
Size
Product: 285 x 397 x 220 mm (l x h x d)
Flight-case foam: 340 x 425 x 275 mm (l x h x d)
Weight
Product: 8.9 kg
